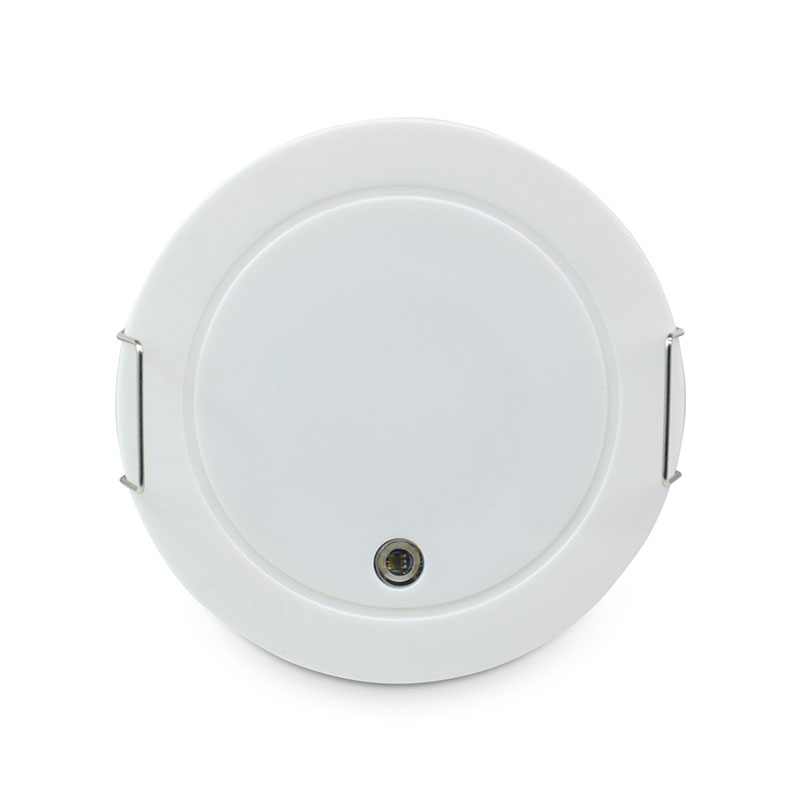

Indoor Microwave Sensor KNX-EUR05
Indoor Microwave Sensor KNX-EUR05
Features
· Illuminance sensing function
· Micro-movement/movement detection function
· The sensitivity of the adjustable mobile detection function
· Networking function with master-slave sensor control
· It features an illuminance sensing function with three types of output data, and the values can be sent in a loop
· It features a mobile monitoring function with three types of output data, and the values can be sent in a loop
· It has the function of turning on/off the indicator light
· Valve (threshold) (setting) function
· The functions of illuminance sensing and motion sensing are prohibited
Techncial Parameters
| Product model | KNX-EUR05 |
| Bus voltage | 21-30VDC, powered on the KNX bus |
| Auxiliary voltage | 24VDC |
| Bus current | <12mA |
| Bus power | <360mW |
| Auxiliary current | <33mA |
| Auxiliary power | <792mW |
| Transmission frequency | 24-24.25GHz |
| Transmission power | 15dBm（max） |
| Opening diameter | Φ53mm ≤d ≤55mm |
| Illuminance | 0-65535LUX |
| Sensing distance | The motion sensing radius is 1.5-2.5 meters, and the micro-motion detection radius is 1-2 meters |
| Size | Height H=40mm, diameter D=67mm |
| Installation method | Ceiling-mounted embedded installation |
| Shell material | ABS |
| IP level | IP20 |
| Working | 0.1kg |
| Weight | -5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
