Features
- Aluminum casing, ultra-small size and lightweight
- No-load power consumption ≤ 0.5W.
- Multiple protections: short circuit/overload/overcurrent/overtemperature.
- High efficiency of 87%.
- Ultra-low temperature startup (-25℃).
- Multiple protections: short circuit/overload/overcurrent/overtemperature..
- No flicker.
Technical Parameters

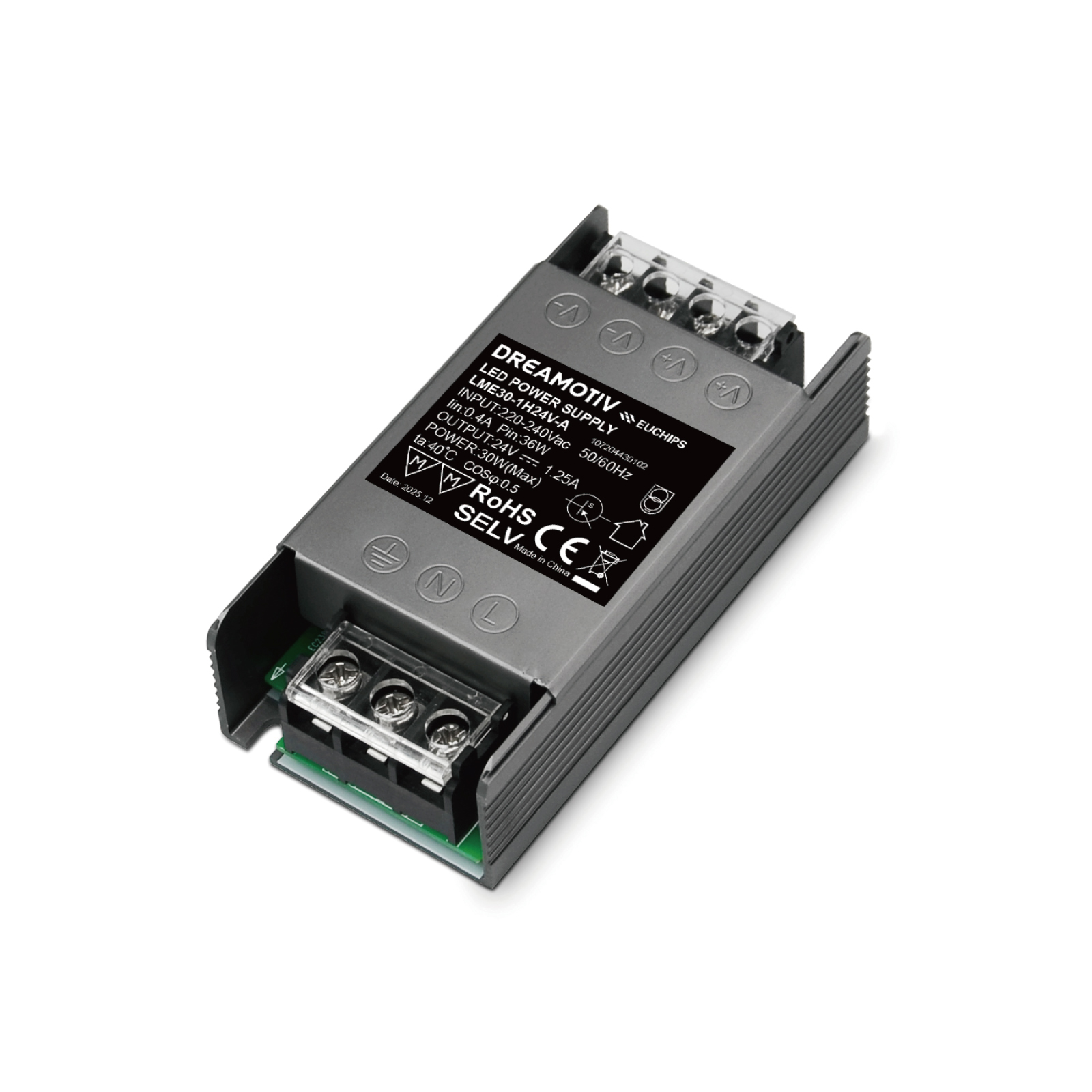

| Model |
LME30-1H24V-A |
| Input |
Rated AC Input Voltage |
220-240Vac |
| AC Input Voltage Range |
198-264Vac |
| Frequency Range |
50/60HZ |
| PF |
≥0.4@230VAC, full load |
| Input Current |
0.40Amax@230Vac |
| Efficiency |
≥87%@230Vac |
| Inrush Current |
Cold start,41A@230VAC, 212us |
| No Load Power |
≤0.5W, (EU)NO 2023/826 |
| Output |
Output Voltage |
24V(-5%,+2%) |
| Output Current |
0-1.25A |
| Power Range |
0-30W |
| SVM |
≤ 0.4 |
| PST |
≤ 1 |
| Ripple Voltage |
240mV Max |
| No Load Output Voltage |
24.5VDC Max |
| Turn on Delay Time |
≤0.5 s@230VAC |
| Protection |
Short circuit |
Short circuit No output, troubleshooting output normal |
| Over load |
Reduce voltage protection to troubleshoot normal output |
| Over Current |
Reduce voltage protection to troubleshoot normal output |
| Over temperature |
Reduce voltage protection to troubleshoot normal output |
| Safety& EMC |
Surge |
L-N: 1kV, L-PE: 2kV, N-PE: 2kV (IEC 61000-4-5) |
| Withstand Voltage |
I/P – O/P: 3000Vac/1min/<5mA I/P – G: (housing) 1500Vac/1min/<5mA O/P – G: (housing) 500Vac/1min/<5mA |
| Safety standards |
EN IEC 62368-1,EN IEC 61558-1/-2-16,VDE 0710-14 |
| EMC Emission |
EN 55032,EN55035,EN IEC 61000-3-2,EN IEC 61000-3-3,EN 55014 |
| Insulation Resistance |
≥5MΩ@500Vdc |
| Others |
Storage Temp., Humidity |
-40℃~85℃, 20-90%RH |
| Working temp. |
ta:-25-50℃(Refer to the derating curve) |
| Tc |
65℃ |
| IP |
IP20 |
| Lifetime |
30,000h@tc:55℃ |
| Warranty |
5 year |
| Switch cycle |
15,000 times |
| Packing size |
Net weight:115g±5%/PCS; 50PCS/Carton; 6.25kg±5%/Carton; Carton Size:287*231*194mm(L*W*H) |
| Dimension |
98*49*28mm(L*W*H) |
