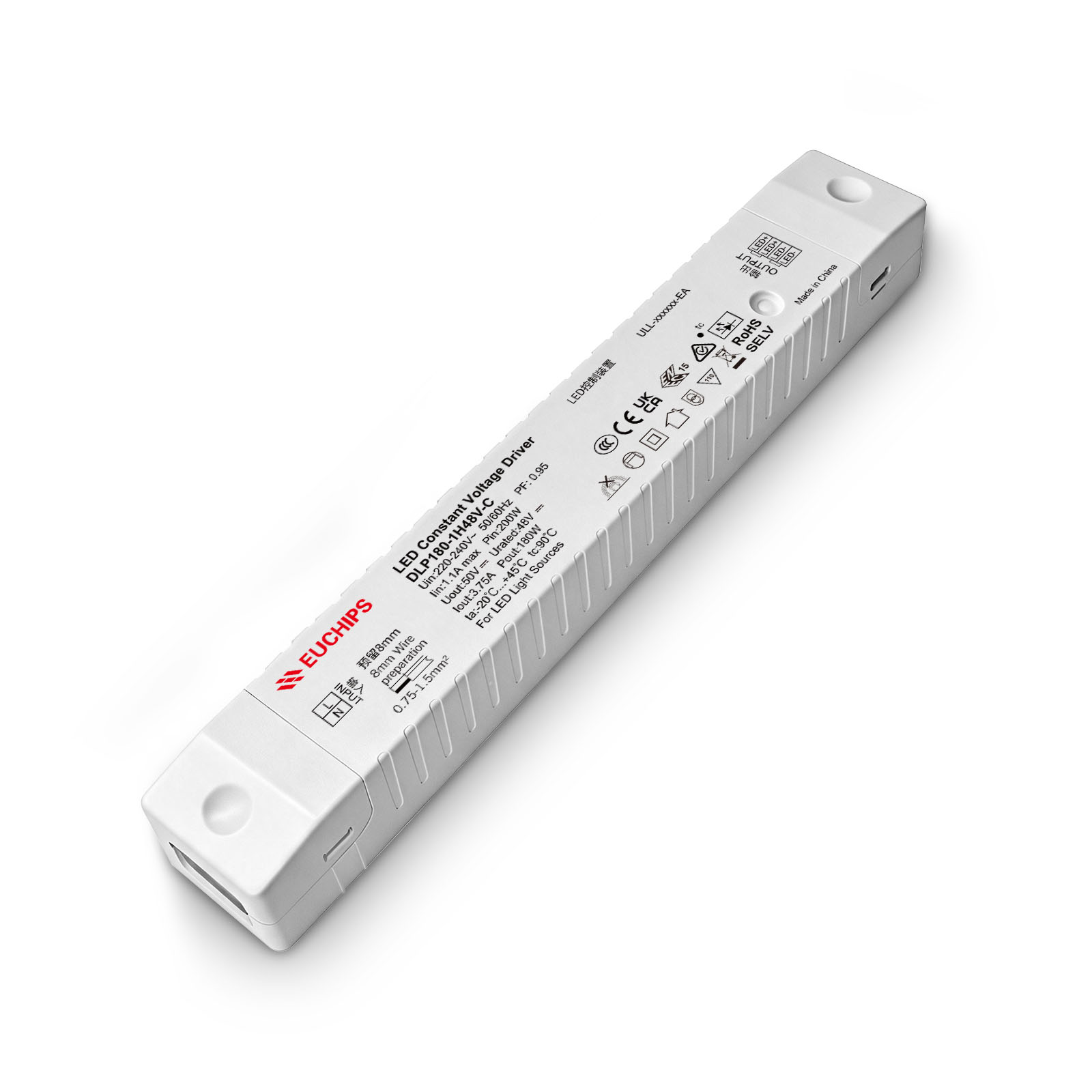

180W 48VDC Non-dimmable CV Driver DLP180-1H48V-C

Short Description:

Item No.: DLP180-1H48V-C
Output Power: 180W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

Features

Single-channel constant voltage output
Short circuit, overcurrent, overload, overtemperature protection, V0 flame-retardant housing
Removable end cover design for easy installation in narrow spaces
50,000-hour lifespan, 5-year warranty
100% full load burn-in test, efficiency up to 94%
IP20 protection rating
Isolated, flicker-free

Technical Parameters

Model	DLP180-1H48V-C
Input	Rated Voltage Range	220VAC-240VAC
	Rated Voltage	198VAC-264VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	1.1Amax@198VAC, 0.85Amax@230VAC, 0.75Amax@264VAC
	Power Factor	0.95@230VAC, Full load
	Efficiency	94%@230VAC, Full load
	THD(full load)	<10%@230VAC, Full load
	Leakage current	≤ 0.25mA
	No load power	<0.5W
	Inrush Current	Cold start 65A@230VAC 200us,
Output	Output Voltage	48VDC
	Constant Voltage Range	45.6V-50.4V
	Output Voltage Tolerance	±3%
	Output Current	3.75A
	Output Power Range	189W max
	Strobe (depth of fluctuation)	IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard（IEEE Std 1789-2015）
	Line regulation	±1% @Full load
	Load regulation	±3% @Full load
	Turn on delay Time	500ms@230VAC
	Ripple and Noise	1440mVp-p@230VAC
Protection	Short circuit	Output shut down, Auto-recover after fault cleared.
	Overcurrent	Output shut down, Auto-recover after fault cleared.
	Overload	Overload protection at 130%-150% load; hiccup mode, output returns to normal after fault cleared.
	Overvoltage	Output shut down, Auto-recover after fault cleared.
	Overtemperature	Output shut down, Auto-recover after fault cleared.
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union)EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃…45℃
	Storage Temp	-30℃…80℃
	Storage Humidity	20-90%RH (No condensation)
