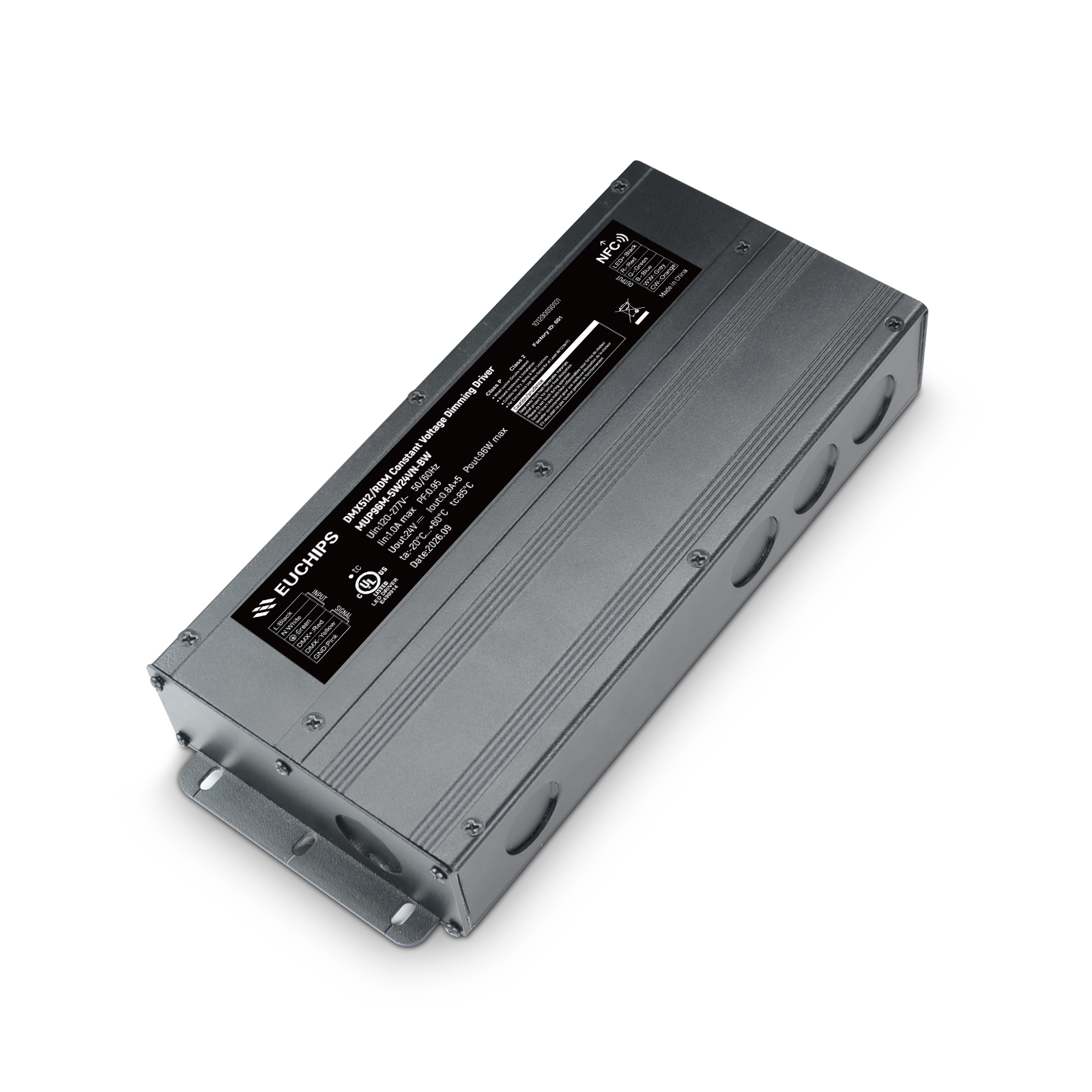

96W 24VDC 5ch DMX/RDM CV Driver MUP96M-5W24VN-BW

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

5-channel constant voltage output, with a maximum output current of 0.8A per channel.
Supports DMX512/RDM signal.
The number of output channels is 5.
NFC-enabled for reading and writing DMX addresses and adjusting output voltage.
Smooth dimming curve, free from flicker.
Equipped with output short-circuit protection and overload protection, And overcurrent protection
lifetime: 50,000 hours @ tc=90°C (194°F)
5-year warranty
UL Class 2.
Safety compliance with UL8750 & UL 1310.
Suitable for Dry , Damp & Wet Locations
Dimmable and color temperature adjustable.

Model	MUP96M-5W24VN-BW
Input	Efficiency	≥86%@120VAC, full load
	Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	1.0Amax @120VAC, 0.6Amax@230VAC, 0.45Amax@277VAC
	PF	≥0.98@120VAC, ≥0.92@277VAC, full load
	THD	<10%@120VAC, <20%@277VAC, full load
	Inrush Current(max)	Cold start,20.30A@120VAC 264us
	Standby power	<2.0W@120VAC
	No load power	<2.0W@120VAC
	Start-up Time	<0.75s, @120Vac (When the light begins to shine)
Output	Current	5 channels, each with 0.8A
	Voltage	24VDC
	Voltage Range	Rated Output Voltage: 24VDC；Adjustable Output Voltage Range: 24–26VDC (via NFC)；Output Voltage Tolerance: ±5%
	Power	96W
	Channel	5
	Ripple Voltage	≤300mV
	PWM Frequency	4KHz PWM
Function	Dimming Type	DMX512/RDM
	Dimming Range	1%-100% (DMX)
	Dimming curve	Logarithm/Linearity (NFC Programming)
	Flicker	Flicker free
Protection	Short Circuit	No output, Auto-Recover when fault removed
	Over Load	Hiccup Protection, Auto-Recover when fault removed
	Over Current	Hiccup Protection, Auto-Recover when fault removed
Safety&EMC	Surge	L-N:6kV L-N-PG:6kV
	Withstand Voltage	I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA
	Safety standards	UL8750 UL1310 Class P（CSA C22.2 NO.250.13-17）
	EMC Emission	FCC PART 15 Class B
	EMC Immunity	IEC 61000-4-2, -3, -4, -5, -6, -8, -11
	Insulation Resisance	5MΩ
