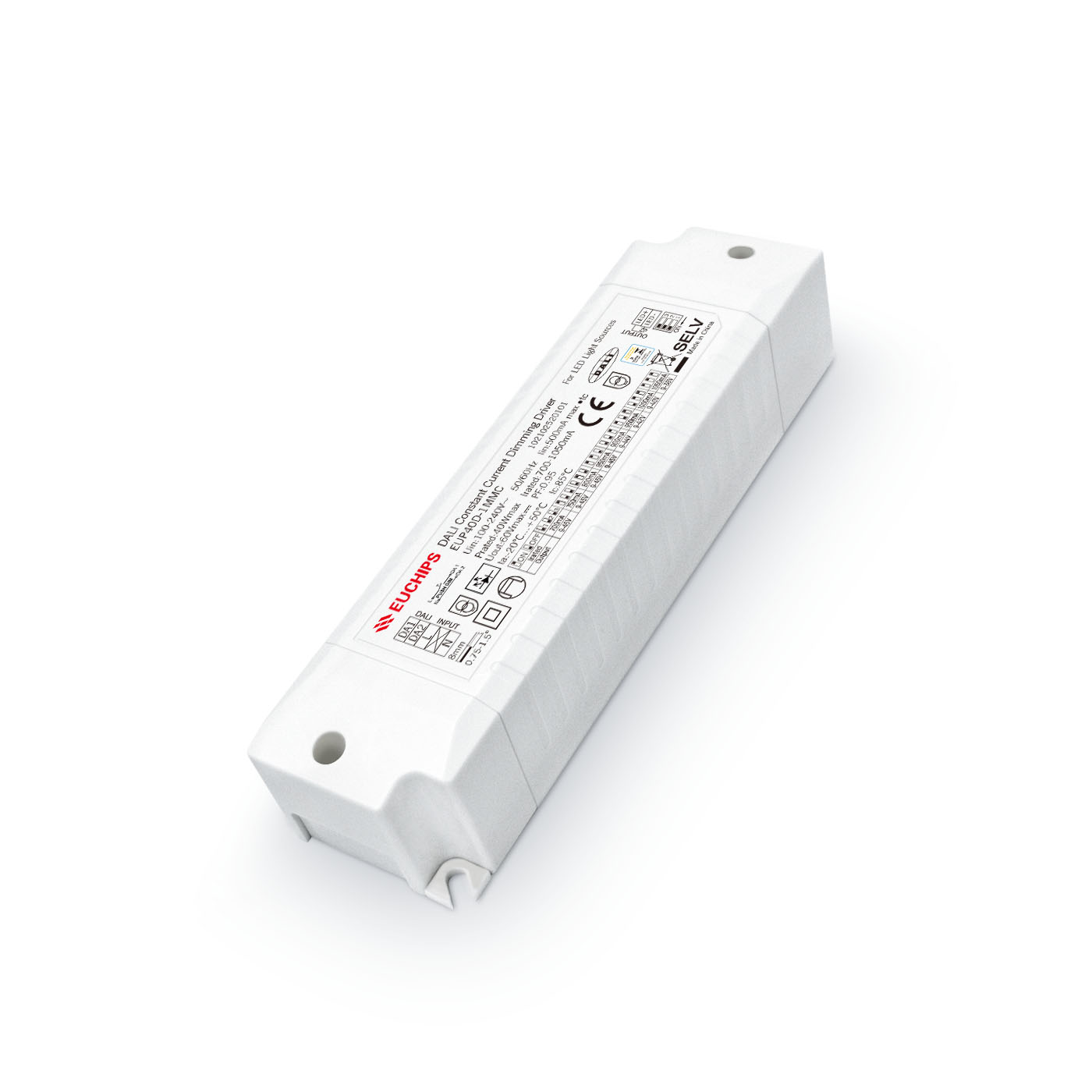

40W 700~1050mA*1ch DALI CC Driver EUP40D-1MMC
Features
- Single channel constant Current output, output current level selectable by DIP S.W.
- Meet DALI Protocol IEC 62386-207 Ed2.0
- Dimming effect smooth, flicker free
- Protection: short circuit, Overload
- Lifetime 50,000h@tc 85℃.
- Protection level IP20, suitable for indoor ⅠⅡ lamps
- Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | EUP40D-1MMC | ||||||||
|
Input |
Efficiency | 38V 1050mA (max current): ≥86%@100VAC, ≥88%@230VAC, full load | |||||||
| 45V (max Voltage) 900mA : ≥87%@100VAC, ≥89%@230VAC, full load | |||||||||
| Voltage | 100VAC-240VAC | ||||||||
| Frequency Range(Hz) | 50/60Hz | ||||||||
| AC Current | 0.5Amax@100VAC, 0.22Amax@230VAC | ||||||||
| PF | ≥0.95@100-240VAC, full load | ||||||||
| THD | <10%@100-240VAC, full load | ||||||||
| Inrush Current(max) | Cold start, 6A@100V 20us, 15A@230VAC 20us | ||||||||
| Standby power | <0.5W | ||||||||
| No load power | / | ||||||||
| Turn on delay Time | <0.75s @100-240Vac (When the lights start to come on.) | ||||||||
|
Output |
Current | 700mA | 750mA | 800mA |
850mA |
900mA |
950mA |
1000mA |
1050mA |
| Voltage | 9-45VDC | 9-45VDC | 9-45VDC |
9-45VDC |
9-44VDC |
9-42VDC |
9-40VDC |
9-38VDC |
|
| Power | 31.5W | 33.75W | 36W |
38.25W |
39.6W |
39.9W |
40W |
39.9W |
|
| Current Tolerance | ±5%1 | ||||||||
| Channel | |||||||||
| Pst LM | ≤1.0 | ||||||||
| SVM | ≤0.4±3% | ||||||||
| Load Regulation | |||||||||
| Line Regulation | ±1% | ||||||||
|
Function |
Dimming Type | DALI, PUSH DIM | |||||||
| Dimming Range | 0.5%-100% | ||||||||
| Dimming curve | Logarithmic | ||||||||
| Flicker | Flicker free | ||||||||
| Protection | Short Circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |||||||
| Overload | Current decrease, Auto-recovery after Fault Clearance | ||||||||
|
Safety&EMC |
Surge | L-N: 1kV | |||||||
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA DALI-O/P:1500V,5mA,60s DALI-I/P:500V,5mA,60s | ||||||||
| Safety standards | CCC (China) GB/T 19510.1，GB/T 19510.213 TUV (Germany) EN 61347-1，EN 61347-2-13，EN 62493 | ||||||||
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN 61347-1，EN 61347-2-13 | |||||||||
| RCM (Australia) AS/NZS 61347-1, AS/NZS 61347-2-13 ENEC (Europe)EN 62384 | |||||||||
| EMI Emission | CCC (China) GB/T 17743，GB/T 17625.1 | ||||||||
| CE (European Union) EN 55015，EN 61000-3-2，EN 61000-3-3，EN 61547 | |||||||||
| RCM (Australia) AS/NZS CISPR 15，AS/NZS 61000 | |||||||||
| EMC Immunity | ICE (61000-4- 2, 3, 4, 5, 6, 8, 11); EN61547 | ||||||||
| Insulation Resistance | 5MΩ | ||||||||
|
Others |
Working Temp. | -20…+50℃ | |||||||
| Storage Temp., Humidity | -40…+85℃, 20~90% RH (No condensation) | ||||||||
| tc | 85℃ | ||||||||
| Material | PC | ||||||||
| IP Rating | IP20 | ||||||||
| Lifetime | 50,000h@tc85℃ | ||||||||
| Warranty Condition | 5 years | ||||||||
| Switch Cycle | 25,000 times | ||||||||
| Dimension | 150*43*29mm(L*W*H) | ||||||||
| Packing(weight) | Net weight: 215 g±5%/PCS; 50 PCS/Carton; 11.25 kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||||||||
