Features
- Dual-channel constant voltage DC48V output
- Wide voltage input range: 120VAC~277VAC
- With an efficiency of up to 90%
- Dimming Smooth, Flicker free
- Suitable for LED constant voltage lighting fixtures, such as LED modules, strip lights, light bars, etcon
Technical Parameters

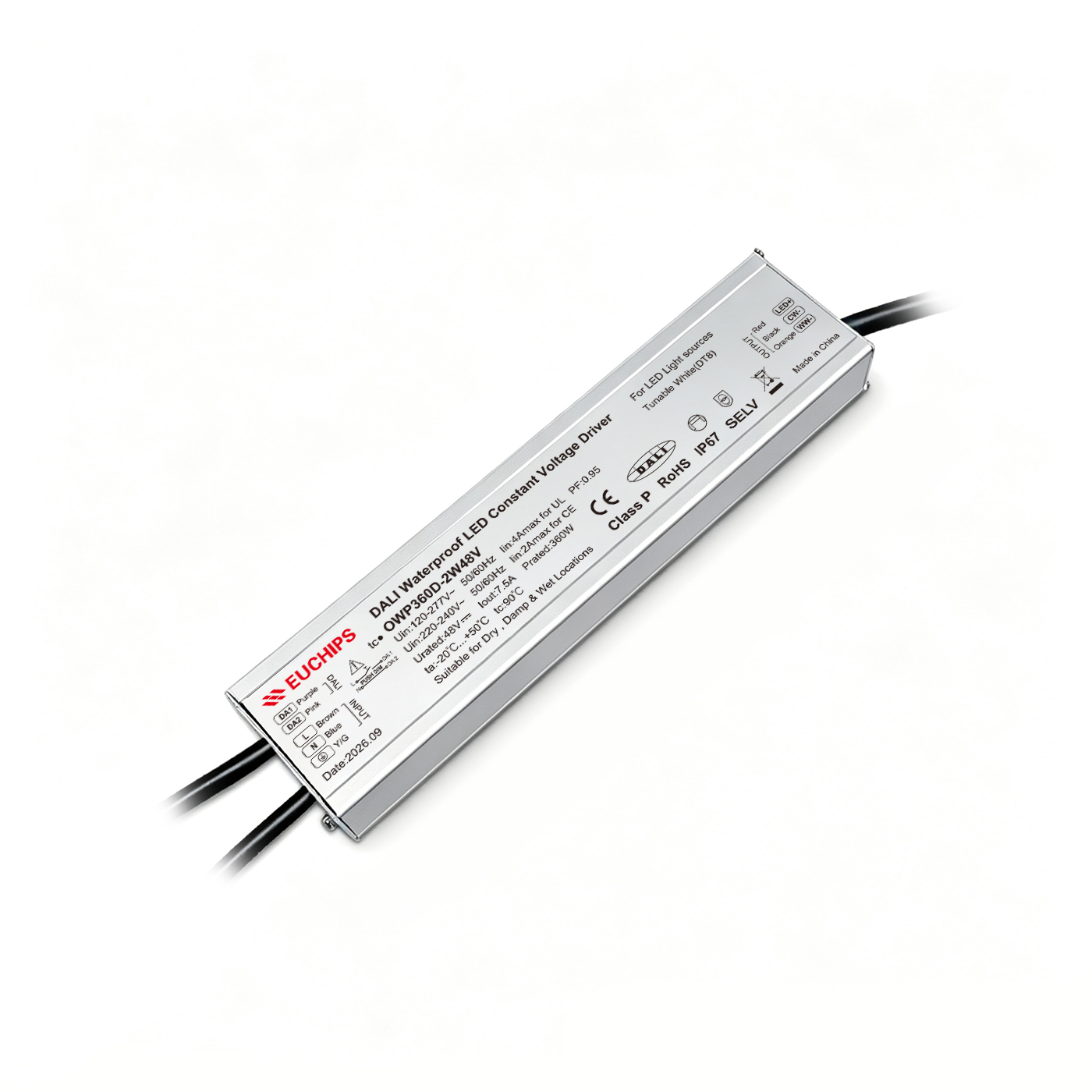

| Model |
OWP360D-2W48V |
| Input |
Efficiency |
≥90%@120VAC, full load |
| Voltage |
120VAC-277VAC |
| Frequency Range(Hz) |
50/60Hz |
| Current |
4.0A@120VAC, 2.0A@230VAC, 1.8A@277VAC |
| PF |
≥0.98@120VAC, ≥0.95@277VAC, full load |
| THD |
<10%@120VAC, <10%@277VAC, full load |
| Inrush Current(max) |
Cold start,55.2A@120VAC 296us 87.6A@277VAC 80us |
| Standby power |
<1.0W@120VAC |
| No load power |
<1.0W@120VAC |
| Start-up time |
<0.75s, @120Vac (time-to-first-light) |
| Output |
Current |
7.5A |
| Voltage |
48VDC |
| Voltage Accuracy |
±5% |
| Power |
360W |
| Channel |
2 |
| Ripple |
≤500mV |
| Function |
Dimming Types |
DALI2.0 (DT8) |
| Dimming Range |
1%-100% |
| Dimming Curve |
Logarithm |
| Flicker |
Flicker free |
| Color temperature range |
2700K-6500K |
| Push DIM (Touch DIM) |
Support |
| Function |
Short Circuit |
Shut down output, Auto-recovery after Fault Clearance |
| Overload |
Hiccup Protection, Auto-recovery after Fault Clearance |
| Overcurrent |
Hiccup Protection, Auto-recovery after Fault Clearance |
| Safety&EMC |
Surge |
L-N: 6kVAC L-N-PG: 10kVAC |
| Withstand Voltage |
I/P-O/P: 3000V/1min/<5mA I/P-PE:1500V/1min/<5mA O/P-PE:500V/1min/<5mA I/P-DALI( Signal port ): 1500V/1min/<5mA O/P-DALI( Signal port ): 3000V/1min/<5mA |
| Safety standards |
UL8750, UL1310, CSA-C22.2 No. 250.13 |
| EMC |
FCC 47 Part 15 Class B |
| Insulation Resisance |
5MΩ |
| Others |
Working Temp. |
-20℃~+50℃ (-4°F-122°F) |
| Storage Temp., Humidity |
-40℃~90℃ (-40°F-194°F), 20-90%RH |
| TC |
90℃ (194°F) for safety & for life |
| Material |
Metal |
| IP Rating |
IP67 |
| Lifetime |
50,000h@tc:90℃ (194°F) |
| Warranty Condition |
5years |
| Switch Cycle |
25,000 times |
| Packing(weight) |
Net weight: 1124g (2.47 lb)±5%/PCS; 10PCS/Carton;11.24kg(24.7 lb)±5%/Carton; Carton Size: 323*209*208mm(12.7*8.23*8.19 Inch)(L*W*H) |
| Dimension |
280*64*33mm (11.02*2.52*1.30 Inch)(L*W*H) |
