Features
- Available for dry contact input and temperature sensor input.
- 0-10V dimming output signal enable to control 0-10V devices, such as LED lights.
- Support 4CH dry contact input and 4CH LED state output.
- 3 working modes: Sensor control (Dry contact sensor, temperature sensor); Logic control; Dimming control (0-10V).
- Types for control targets: Switches, dimming devices, curtains, flexible control, scene s, sequence control, percentage control, threshold control, string control, forced control, PMW output, counter control, combination control, LED status indication.
Technical Parameters
| Product Model |

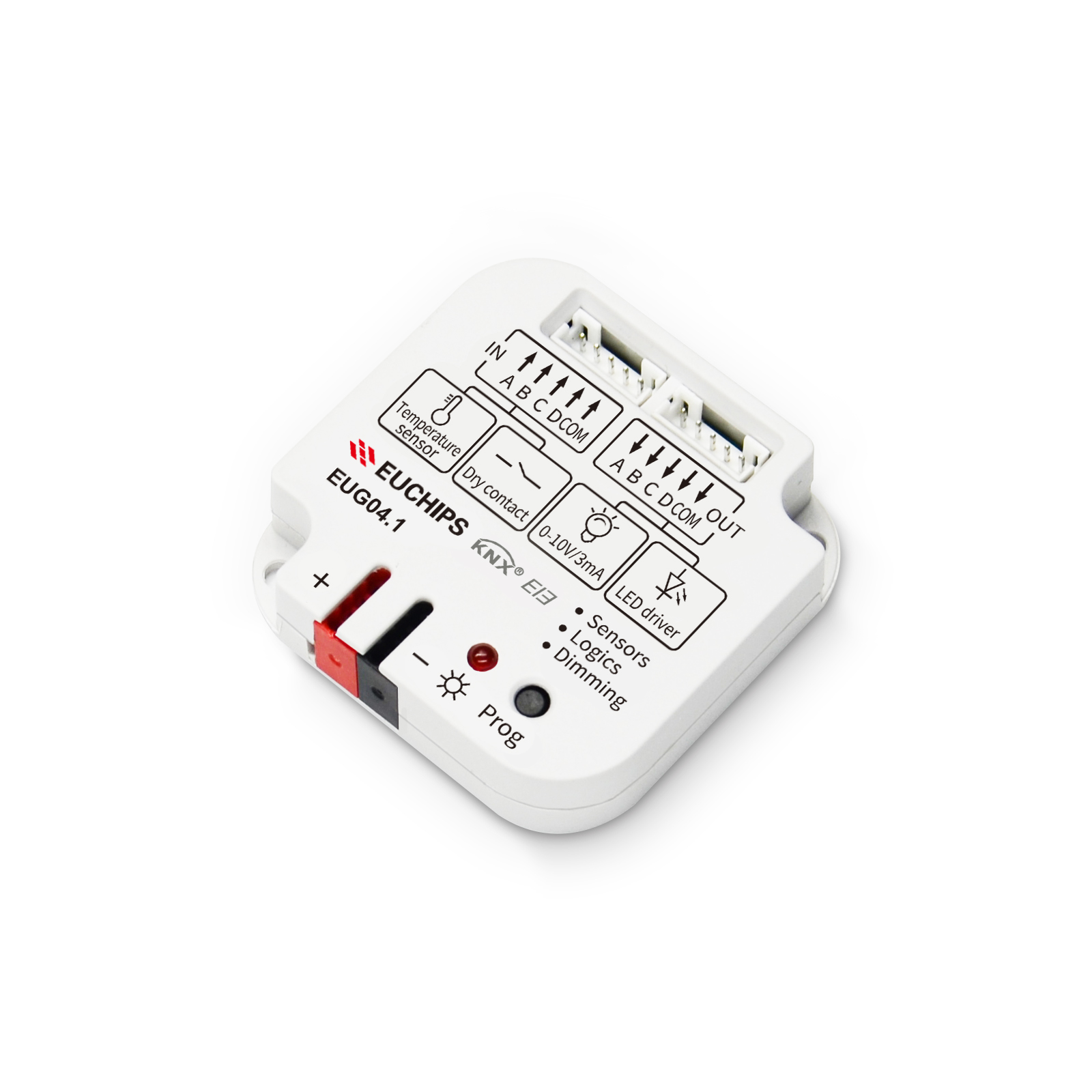

EUG04.1 |
| Working voltage |
21-30VDC |
| Working current |
5mA/30VDC |
| Output voltage |
0-10VDC |
| DC 0-10V output current |
3mA |
| Input sensor |
Switch/temperature sensor |
| Temperature sensor |
TTS/APR1.0 |
| Communication protocol |
KNX/EIB |
| Cable diameter of KNX terminal |
0.6 – 0.8mm |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
Switch box installation |
| Installation size |
50mm×50mm×13mm |
| Net weight |
24g |
| Housing material |
Flame-retardant ABS |
| Product Certifications |
RoHS, CE, KNX |
