DALI CC Drivers

Dimming Signal
CC/CV
Input Voltage
Output Voltage
Output Current
Output Power
Output Channel
Application Area
Product Category
Certification
Download CSV Display as Poster

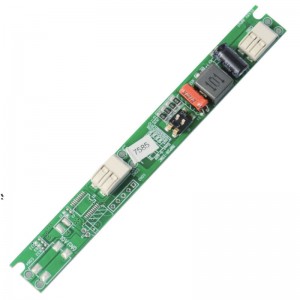

  • 14W 120~350mA*1ch DALI DC-DC CC Driver BMP14D-1SMC

    14W 120~350mA*1ch DALI DC-DC CC Driver BMP14D-1SMC

    14W 48VDC 120/150/180/210/240/270/300/350mA DALI DC-DC Driver BMP14D-1SMC Features 1. Output current 120-350mA, can be set via DIP switch 2. Compliant with DALI 2.0 standard protocol 3. Mixed dimming PWM+CCR, no flicker 4. Short circuit protection, overload protection,no load protection,Input reverse connection 5. Built-in driver 6. Hot plug for input port and non polarized Technical Parameters Model BMP14D-1SMC Input Efficiency 93% Voltage 42-52VDC Current 0.63Amax@48VDC, full load ...

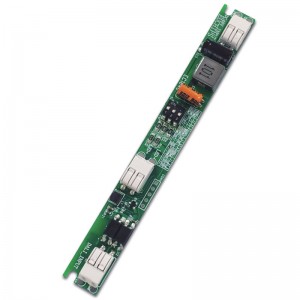

  • 21W 700~1050mA*1ch DALI DC-DC CC Driver BMP21D-1SMC

    21W 700~1050mA*1ch DALI DC-DC CC Driver BMP21D-1SMC

    21W 700/750/800/850/900/950/1000/1050mA DALI DC-DC Driver BMP21D-1SMC BMP21D-1SMC is a DC/DC constant current output LED driver.The output current can be set via DIP switch.It can be controlled by DALI master, and the dimming curve is smooth and flicker free. Features 1. Output current 700-1050mA, can be set via DIP switch 2. Compliant with DALI 2.0 standard protocol 3. Mixed dimming PWM+CCR, no flicker 4. Short circuit protection, overload protection,no load protection,Input reverse connecti...
  • 28W 350~700mA*1ch DALI DC-DC CC Driver BMP28D-1SMC

    28W 350~700mA*1ch DALI DC-DC CC Driver BMP28D-1SMC

    28W 350/400/450/500/550/600/650/700mA DALI DC-DC Driver BMP28D-1SMC is a DC/DC constant current output LED driver.The output current can be set via DIP switch.It can be controlled by DALI master, and the dimming curve is smooth and flicker free. Features 1. utput current 350-700mA, can be set via DIP switch 2. Compliant with DALI 2.0 standard protocol 3. Mixed dimming PWM+CCR, no flicker 4. Short circuit protection, overload protection,no load protection,Input reverse connection 5. Built-in d...
  • 14W 120~350mA*2ch DALI DC-DC CC Driver BMP14D-2SMC

    14W 120~350mA*2ch DALI DC-DC CC Driver BMP14D-2SMC

    14W 120~350mA*2ch DALI DC-DC CC Driver BMP14D-2SM Features ·Two channel output, output current level selectable by DIP S.W. ·Meet DALI Protocol IEC 62386-209 ·High efficiency up to 93 % ·Built-in active PFC function ·Dimming effect smooth, no flicker ·Protections: Short circuit, over load, Input reverse connection ·Suitable for indoor LED lighting application, such as down light, panel light, and so on Technical Parameters Model BMP14D-2SMC     Input Efficiency 93%@48VDC, full load ...

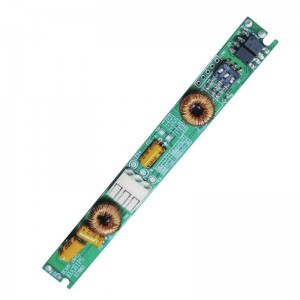

  • 28W 350~700mA*2ch DALI DC-DC CC Driver BMP28D-2SMC

    28W 350~700mA*2ch DALI DC-DC CC Driver BMP28D-2SMC

    28W 350/400/450/500/550/600/650/700mA*2ch DALI DC-DC Driver BMP28D-2SMC Features 1. Two channel output, output current level selectable by DIP S.W. 2. Meet DALI Protocol IEC 62386-209 3. High efficiency up to 93 % 4. Built-in active PFC function 5. Dimming effect smooth, no flicker 6. Protections: Short circuit, over load, Input reverse connection 7. Suitable for indoor LED lighting application, such as down light, panel light, and so on Technical Parameters Model BMP28D-2SMC Input Effic...
  • 28W 350~700mA*2ch DALI DC-DC CC Driver BMP28D-2SMC-S

    28W 350~700mA*2ch DALI DC-DC CC Driver BMP28D-2SMC-S

    28W 350~700mA*2ch DALI DC-DC CC Driver BMP28D-2SMC-S BMP28D-2SMC-S is a DC/DC constant current output LED driver.The output current can be set via DIP switch.It can be controlled by DALI master, and the dimming curve is smooth and flicker free. Features · Output current 350-700mA, can be set via DIP switch · Compliant with DALI 2.0 standard protocol · Mixed dimming PWM+CCR, no flicker · Short circuit protection, overload protection,no load protection,Input reverse connection · Built-in driver...
