  • 60W 12VDC Non-dimmable Waterproof CV Driver OWP60-1W12V

    60W 12VDC Non-dimmable Waterproof CV Driver OWP60-1W12V

    60W 12VDC Non-dimmable Waterproof CV Driver OWP60-1W12V  Features Ambient Temperature: (-40 to +60) ℃ Ripple: ≤120mV (p-p) Certifications: CE + UL compliant Surge Protection:L-N 6KV,L/N-G 6KV Compact Size Waterproof Connector Supported Over-Temperature Protection (OTP) Technical Parameters Model OWP60-1W12V Input Voltage UL Rated 120-277Vac,CE Rated 220-240Vac Frequency Range(Hz) 50/60Hz Efficiency ≥88%@120VAC, ≥90%@277VAC, full load PF ≥0.95@120V-277VAC,full load Current 0.7...

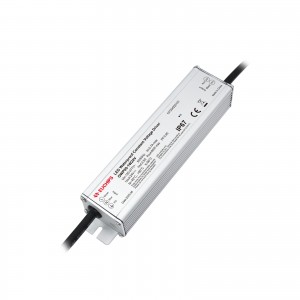

  • 60W 24VDC Non-dimmable Waterproof CV Driver OWP60-1W24V

    60W 24VDC Non-dimmable Waterproof CV Driver OWP60-1W24V

    60W 24VDC Non-dimmable Waterproof CV Driver OWP60-1W24V Features Ambient Temperature: (-40 to +60) ℃ Ripple: ≤240mV (p-p) Certifications: CE + UL compliant Surge Protection:L-N 6KV,L/N-G 6KV Compact Size Waterproof Connector Supported Over-Temperature Protection (OTP) Technical Parameters Model OWP60-1W24V Input Voltage UL Rated 120-277Vac,CE Rated 220-240Vac Frequency Range(Hz) 50/60Hz Efficiency ≥88%@120VAC, ≥89%@230VAC, ≥90%@277VAC, full load PF ≥0.95@120V-277VAC,full load C...

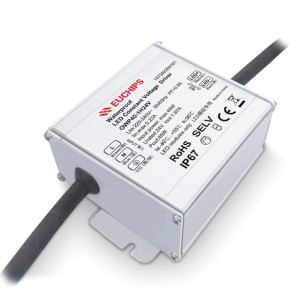

  • 40W 24VDC Non-dimmable Waterproof CV Driver OWP40-1H24V

    40W 24VDC Non-dimmable Waterproof CV Driver OWP40-1H24V

    40W 24VDC Waterproof Non-dimming CV Driver OWP40-1H24V Features 1. Single channel output with 24V CV direct current 2. Wide voltage input range from 220VAC to 240VAC 3. With built-in active PFC function 4. Ultra-thin design, Waterproof level IP67, High effciency up to 87% 5. Dimming effect smooth, no flicker 6. Protections: Short circuit, over load, lightning protection 7. suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on Technical Parameters Model OWP...

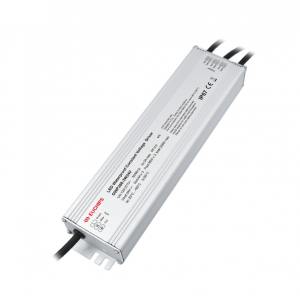

  • 288W 24VDC 3ch Non-dimmable Waterproof CV Driver OWP288-3W24V

    288W 24VDC 3ch Non-dimmable Waterproof CV Driver OWP288-3W24V

    288W 24VDC 3ch Non-dimmable Waterproof CV Driver OWP288-3W24V Features · Three-channel constant voltage output, per channel 4A Max · Input Voltage Range 108-305Vac · Protection: short circuit, Overload, Overcurrent • 50,000Hour Life @ tc=85℃ • 5 Year Warranty @ tc<=85℃ • UL Class 2 • Flicker free • Safety according to UL8750 &UL 1310 · Suitable for Dry , Damp & Wet Locations Technical Parameters Model OWP288-3W24V        Input Efficiency ≥90%@120VAC, ≥93%@277VAC, full load V...
