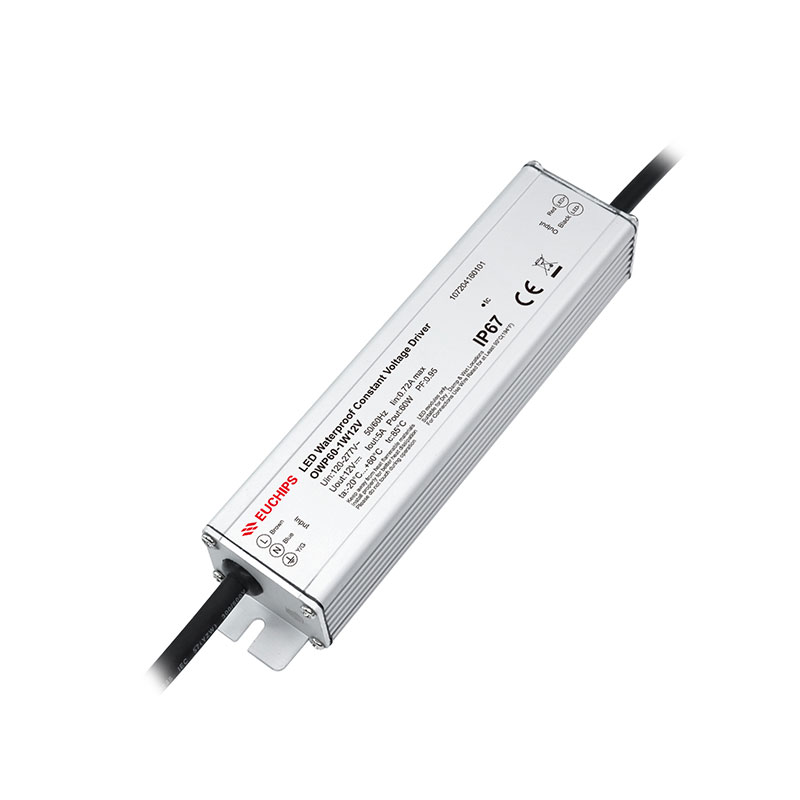

60W 12VDC Non-dimmable Waterproof CV Driver OWP60-1W12V
60W 12VDC Non-dimmable Waterproof CV Driver OWP60-1W12V
Features
Ambient Temperature: (-40 to +60) ℃
Ripple: ≤120mV (p-p)
Certifications: CE + UL compliant
Surge Protection:L-N 6KV，L/N-G 6KV
Compact Size
Waterproof Connector Supported
Over-Temperature Protection (OTP)
Technical Parameters
| Model | OWP60-1W12V | |
| Input
|
Voltage | UL Rated 120-277Vac，CE Rated 220-240Vac |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥88%@120VAC, ≥90%@277VAC, full load | |
| PF | ≥0.95@120V-277VAC,full load | |
| Current | 0.72A max@120VAC, 0.28A max@277VAC, full load | |
| THD | <10%@120-277VAC, full load | |
| Inrush current | Cold start, 18.5A@120VAC 200us, 48A@277VAC 210us, | |
| No load power | <0.5W | |
| Turn on delay Time | ≤ 0.5 s, at120Vac (When the light begins to shine) | |
| Output | Channel | 1 |
| Voltage | 12VDC | |
| Output Voltage | 0-5A | |
| Power | 60W | |
| Current Accuracy | ±3% | |
| Ripple Voltage | ≤120mV(p-p) | |
| No load output voltage | 12.6VDC max | |
| Protection | Over load | Hiccup Protection, Auto-recovery after Fault Clearance |
| Short circuit | No Output, Auto-recovery after Fault Clearance | |
| Over Current | Hiccup Protection, Auto-recovery after Fault Clearance | |
| over temperature | Output power drops to 50% at 75-80°C ambient (Tc ≈95°C-100°C ), recovering automatically when temperature normalizes. | |
| Safety&EMC | Surge | L-N 6KV L/N-G 6KV |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA, I/P-G:1800Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, | |
| Safety standards | EN61347-1，EN61347-2-13 ，UL8750，UL1310，UL879 | |
| EMC Emission | EN55015， FCC Part 15 Class B | |
| EMC immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resistance | 5MΩ | |
| Function | Dimming type | Non regulated |
| Flicker | No strobe | |
| Others | Dimension | 181*40.8*30mm(L*W*H) |
| Packing size | Net weight: 385g±5%/PCS; 30PCS/Carton; 12.05kg±5%/Carton; Carton Size: 425x185x170mm(L*W*H) | |
| Working temp. | ta:-40-60℃, | |
| tc | 85℃ | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty | 5 years | |
| IP rating | IP67 | |
| Material | Metallic/Silver | |
| Switch cycle | >25000 times | |
