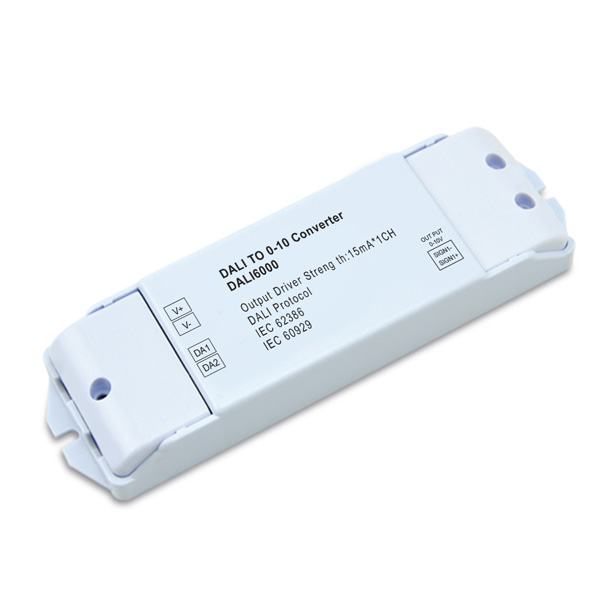

  • 12-24VDC 15mA DALI to 0-10V Analog Signal Converter DALI6000

    12-24VDC 15mA DALI to 0-10V Analog Signal Converter DALI6000

    12V 24V DALI 0-10V Analog Signal Converter DALI6000 Feature 1. DALI to 0-10V Converter 2. 1 channel 0-10V Analog Signal output 3. Drive capability: max 15mA/channel 4. Meets DALI protocol IEC62386/IEC60929 5. Support automatic addressing and address extensions 6. Input VoltageㄩDC12 -24V 7. Security Level: 2 Level Technical Parameter Product Name DALI 0-10V Analog Signal 12V 24V Converter Item DALI6000 Conversion Channel 1 Channel Input Voltage DC12 -24V Input Signal DALI Sig...

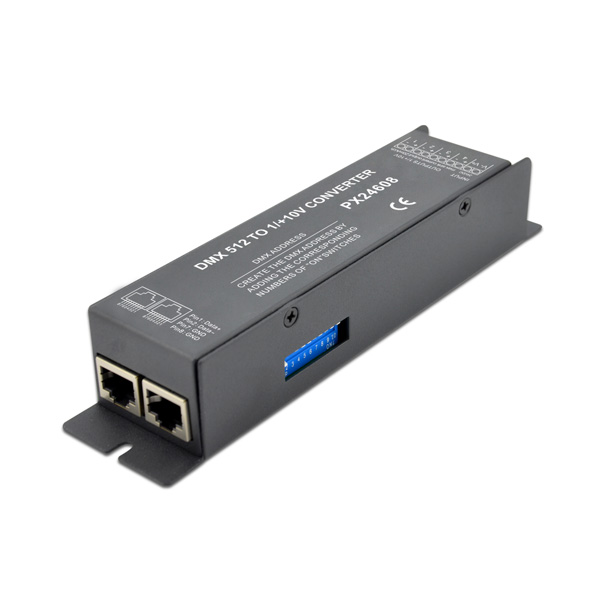

  • 24VDC 20mA*4ch DMX to 0-10V Analog Signal Converter PX24608

    24VDC 20mA*4ch DMX to 0-10V Analog Signal Converter PX24608

    DMX to 0-10V Analog Signal Converter PX24608 Summarize Thank you for using PX series of DMX512 Decoder. PX series adopt the advanced micro-computer control?technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to 0-10V/1-10V signal.4 Channels output, output driver 20 mA per channel.it can be used to control?0-10V/1-10V dimmer. It is mainly used for signal convert betwwen DMX Master and 0-10V/1-10V(DMX to 1-10V Converter) Dimmer. Feature 1. Meet t...

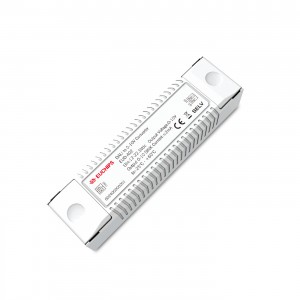

  • 12-22.5Vdc DALI to 0-10V Converter EUD-A02

    12-22.5Vdc DALI to 0-10V Converter EUD-A02

    12-22.5Vdc DALI to 0-10V Converter EUD-A02 The DA-010 is a non-isolated signal converter translating the DALI command into 0-10V dimmng signal for LED driver with 0-10V dimming control. This design complies to IEC 62386-101, 102, 207 DALI standard protocol. It is a perfect solution to convert standard fixture to be controlled in DALI control environment. Technical Parameters Model EUD-A02   OUTPUT Output Voltage 0-10Vdc Output 0-10 SINK Current ≤ 2mA Voltage Tolerance ±5%   INPUT V...

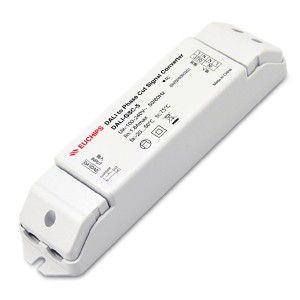

  • 100-240VAC DALI to Phase Cut Signal Converter DALI-GSC-5

    100-240VAC DALI to Phase Cut Signal Converter DALI-GSC-5

    100-240VAC DALI to Phase Cut Signal Converter DALI-GSC-5 Features · Comply with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2 · Thyristor phase-cutting dimming controller supporting DALI and Touch DIM dimming · Controlled LED thyristor dimming power supply, incandescent lamp, AC low voltage lamp, etc · Wide voltage input 100-240VAC · One DALI address, one channel output, maximum output current is 1.8A Technical Parameters Input control signal DALI signal or Touch switch signal ...
