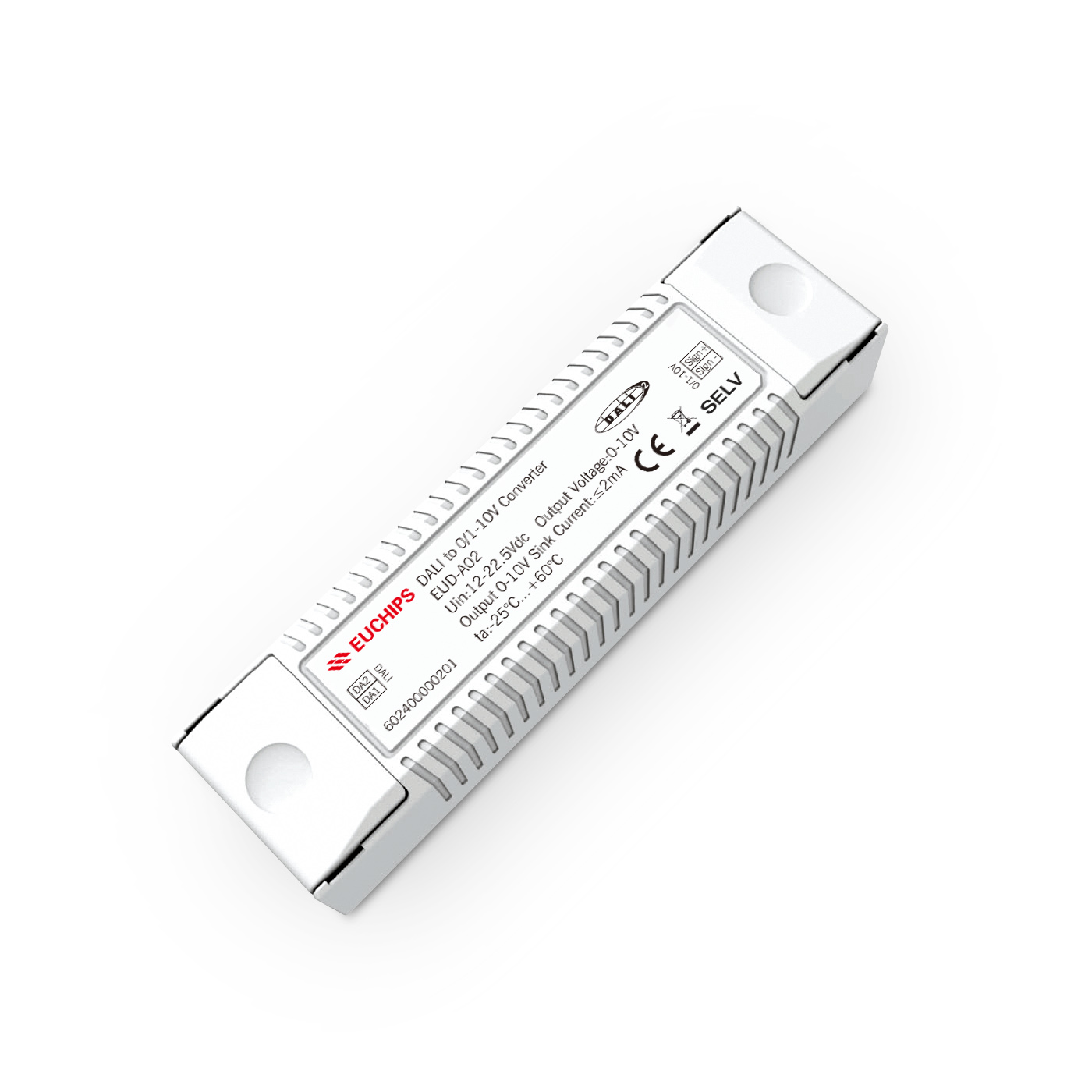

12-22.5Vdc DALI to 0-10V Converter EUD-A02
12-22.5Vdc DALI to 0-10V Converter EUD-A02
The DA-010 is a non-isolated signal converter translating the DALI command into 0-10V dimmng signal for LED driver with 0-10V dimming control. This design complies to IEC 62386-101, 102, 207 DALI standard protocol. It is a perfect solution to convert standard fixture to be controlled in DALI control environment.
Technical Parameters
| Model | EUD-A02 | |
|
OUTPUT |
Output Voltage | 0-10Vdc |
| Output 0-10 SINK Current | ≤ 2mA | |
| Voltage Tolerance | ±5% | |
|
INPUT |
Voltage | 12-22.5Vdc |
| DALI Input Current | < 4.5mA | |
|
Environment |
Working Temperature | -25°C - +60°C |
| Working Humidity | 20 – 90RH (No Condensation) | |
| Storage Temperature & Humidity | -30°C - + 60°C (Six months under class I environment); 10 – 90%RH (No Condensation) | |
| Safety& EMC | Certification | CE Compliant |
| Electromagnetic Emission | Conform to EN55015 | |
|
Others |
IP Rating | IP20 |
| RoHS | Fully Compliant | |
| Warranty | 2 Years | |
| Implementation Standard of DALI | IEC 62386-101, 102, 207 (DT6 LED) | |
| Dimension | 110*30*22.5mm(L*W*H) | |
| Packing(weight) | Net weight: – g±5%/PCS; – PCS/Carton; – kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
