US Triac CC

Dimming Signal
CC/CV
Input Voltage
Output Voltage
Output Current
Output Power
Output Channel
Application Area
Product Category
Certification
Download CSV Display as Poster
  • 10W 120~350mA*1ch Triac CC Driver PUP10T-1LMC-350

    10W 120~350mA*1ch Triac CC Driver PUP10T-1LMC-350

    10W 120~350mA*1ch Triac CC Driver PUP10T-1LMC-350 PUP10T-1LMC-350 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer 3. Built-in active PFC function 4. Class Ⅱ power supply. Full protective plastic h...

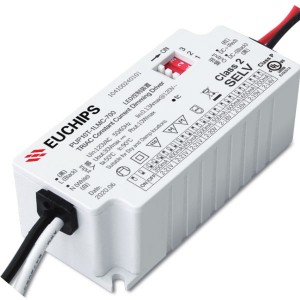

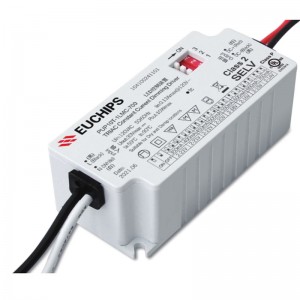

  • 10W 350~700mA*1ch Triac CC Driver PUP10T-1LMC-700

    10W 350~700mA*1ch Triac CC Driver PUP10T-1LMC-700

    10W 350~700mA*1ch Triac  CC Driver PUP10T-1LMC-700 PUP10T-1LMC-700 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer 3. Built-in active PFC function 4. Class Ⅱ power supply. Full protective plastic h...
  • 20W 350~700mA*1ch Triac CC Driver PUP20T-1LMC

    20W 350~700mA*1ch Triac CC Driver PUP20T-1LMC

    20W 350~700mA Triac Constant Current Driver PUP20T-1LMC PUP20T-1LMC is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer 3. Built-in active PFC function 4. Class Ⅱ power supply. Full protective plastic hou...

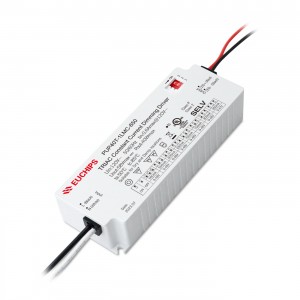

  • 40W 500~850mA*1ch Triac CC Driver PUP40T-1LMC-850

    40W 500~850mA*1ch Triac CC Driver PUP40T-1LMC-850

    40W 500~850mA*1ch CV Driver PUP40T-1LMC-850 PUP40T-1LMC-850 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer 3. Built-in active PFC function 4. Class Ⅱ power supply. Full protective plastic housing ...

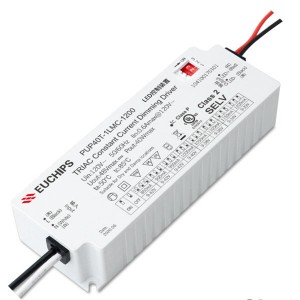

  • 40W 850~1200mA*1ch Triac CC Driver PUP40T-1LMC-1200

    40W 850~1200mA*1ch Triac CC Driver PUP40T-1LMC-1200

    40W 850~1200mA*1ch CV Driver PUP40T-1LMC-1200 PUP40T-1LMC-1200 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer 3. Built-in active PFC function 4. Class Ⅱ power supply. Full protective plastic housin...
  • 17W 250/300/350/400mA Triac & 0-10V CC Driver CUP17AT-1WMC

    17W 250/300/350/400mA Triac & 0-10V CC Driver CUP17AT-1WMC

    17W 250/300/350/400mA Phase-cut & 0-10V CC Driver CUP17AT-1WMC CUP17AT-1WMC is a constant current mode output LED driver. This driver can be controlled by external signal Phase-Cut ,0-10V to achieve a smooth dimming effect. Features · Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations · All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863 · Class P, Class 2 · 5 Years Warranty (Life expectancy of 50,000h at tc≤75°C) · Comply With FCC Part15 Class B (@120Vac inpu...
  • 25W 450/500/550/600mA Triac & 0-10V CC Driver CUP25AT-1WMC

    25W 450/500/550/600mA Triac & 0-10V CC Driver CUP25AT-1WMC

    25W 450/500/550/600mA Phase-cut & 0-10V CC Driver CUP25AT-1WMC CUP25AT-1WMC is a constant current mode output LED driver. This driver can be controlled by external signal Phase-Cut ,0-10V to achieve a smooth dimming effect. Features · Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations · All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863 · Class P, Class 2 · 5 Years Warranty (Life expectancy of 50,000h at tc≤75°C) · Comply With FCC Part15 Class B (@120Vac inpu...
  • 34W 650/700/750/800mA Triac & 0-10V CC Driver CUP34AT-1WMC

    34W 650/700/750/800mA Triac & 0-10V CC Driver CUP34AT-1WMC

    34W 650/700/750/800mA Phase-cut & 0-10V CC Driver CUP34AT-1WMC CUP34AT-1WMC is a constant current mode output LED driver. This driver can be controlled by external signal Phase-Cut ,0-10V to achieve a smooth dimming effect. Features · Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations · All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863 · Class P, Class 2 · 5 Years Warranty (Life expectancy of 50,000h at tc≤75°C) · Comply With FCC Part15 Class B (@120Vac inpu...
  • 40W 850/900/950/1000mA Triac & 0-10V CC Driver CUP40AT-1WMC

    40W 850/900/950/1000mA Triac & 0-10V CC Driver CUP40AT-1WMC

    40W 850/900/950/1000mA Phase-cut & 0-10V CC Driver CUP40AT-1WMC CUP40AT-1WMC is a constant current mode output LED driver. This driver can be controlled by external signal Phase-Cut ,0-10V to achieve a smooth dimming effect. Features · Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations · All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863 · Class P, Class 2 · 5 Years Warranty (Life expectancy of 50,000h at tc≤75°C) · Comply With FCC Part15 Class B (@120Vac inp...
