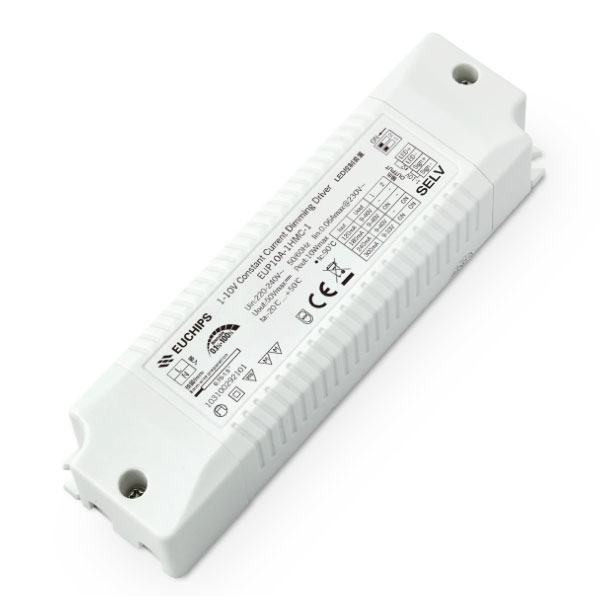

10W 120/180/240/300mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1
10W 120/180/240/300mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1
EUP10A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
·High input voltage of 220VAC ~ 240VAC
·High efficiency up to 85%
·Built-in active PFC function
·100% output when no dimming signal input, can be used as normal power supply
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load
·Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Patameters
| Model | EUP10A-1HMC-1 | |
| Input | Efficiency | 85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.06Amax@230VAC | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 120mA/9-40VDC/4.8W 180mA/9-40VDC/7.2W240mA/9-40VDC/9.6W 300mA/9-33VDC/9.9W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1W | |
| No load output voltage | 50V Max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety&EMC | Surge | L-N:500V |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃ ~50℃, |
| Storage Temp., Humidity | -40℃~85 ℃ 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
