Features
- Supports 64 DALI drivers with different functions.
- Switching, dimming, color temperature and color (RGB, RGBW, CIE color systems) control.
- Control objectives: broadcast, channel, group and scene.
- Address management and assignment of DALI drivers with “EUCHIPS KNX Assistant Software”.
- DALI driver scene control, DALI driver scenes can be configured and managed with the “EUCHIPS KNX Assistant Software”.
- Supports Status feedback., Online upgrade
- The product has obtained DALI-2 certification and its database has been certified by KNX.
Technical Parameters
| Product Model |

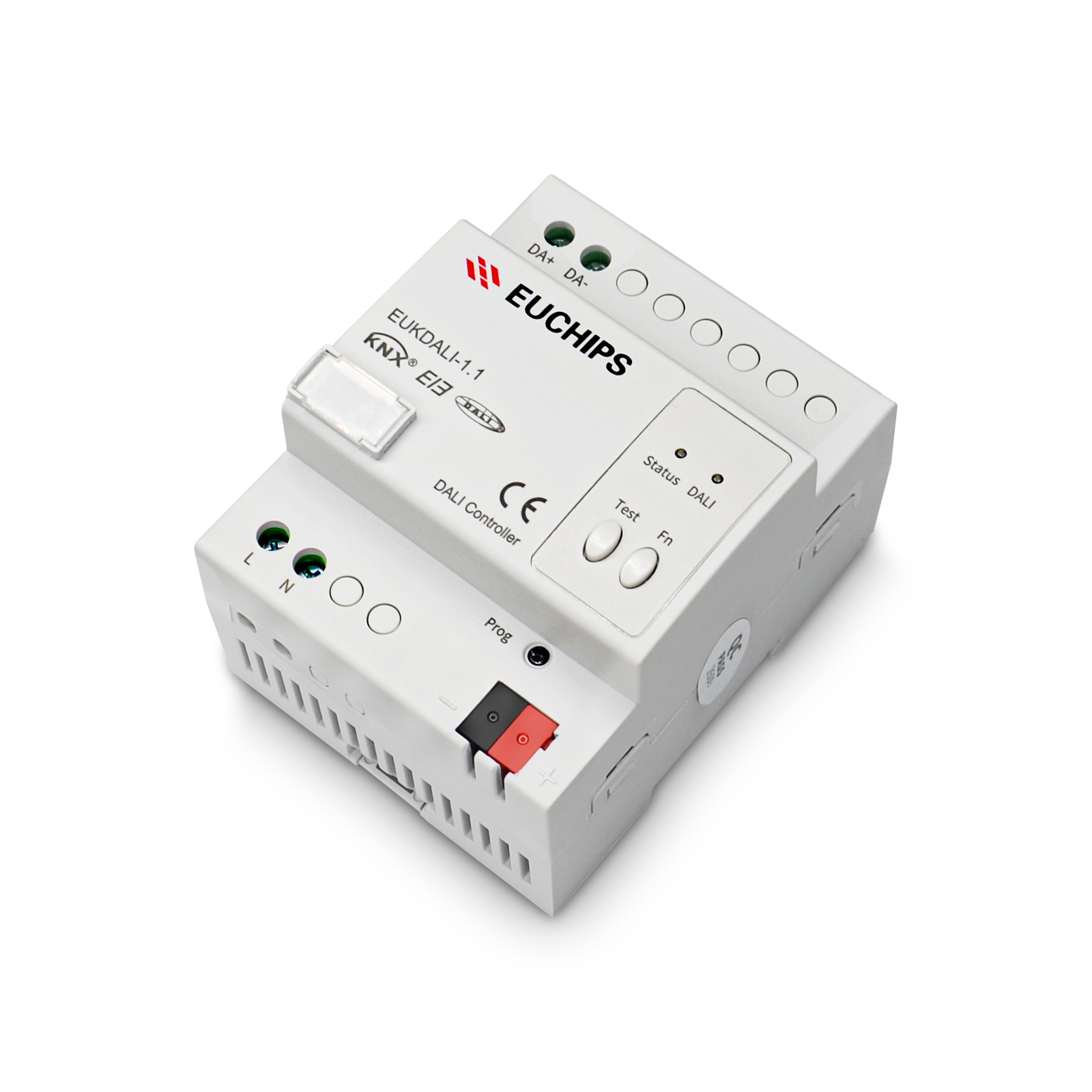

EUKDALI-1.1 |
| DALI Bus Voltage |
18VDC |
| DALI Bus Current |
0.20A/18VDC, 0.25A Max. @25°C |
| DALI Bus Power Supply |
Support only one |
| Supported DALI Device |
64 |
| Cable Specification |
Supports 0.5-1.5 mm², Max. Distance ≤300m (at 1.5mm²) |
| AC Voltage |
100-240V~50/60Hz |
| AC Current (Typical) |
0.1A @ 230VAC |
| KNX Bus Rated Voltage |
30VDC |
| KNX Bus Rated Current |
5mA/30VDC |
| Dimming Interface |
DALI |
| Working Temperature |
-5°C-45°C |
| Working Humidity |
≤90%RH, non-condensing |
| Storage Temperature & Humidity |
-20°C-60°C, ≤93%RH, non-condensed |
| Short Circuit Protection |
Yes, auto-recovery after fault elimination |
| Overcurrent Protection |
Yes, auto-recovery after fault elimination |
| Overtemperature Protection |
Yes, auto-recovery after temperature drops |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounting |
| Installation size |
External size: 72mm×90mm×64mm (dimension tolerance ±0.2mm) |
| Net weight |
241g |
| Housing material |
Nylon |
| Product Certifications |
RoHS, CE, DALI-2 |
