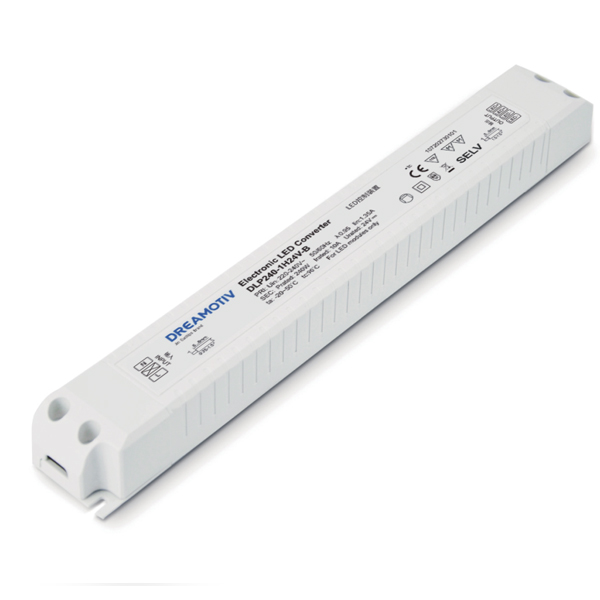

240W 24VDC Non-dimmable CV Driver DLP240-1H24V-B
240W 24VDC Non-dimmable CV Driver DLP240-1H24V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· high efficiency, high reliability and long life time
· -20℃~+50℃, working temp
· Protections: Over Current, Over voltage, Short circuit self-recovery protection
· The typical efficiency of the machine is up to 93%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Paramaters
|
Model |
DLP240-1H24V-B | |
|
Input |
Efficiency | ≥93%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| THD(full load) | <10%@230VAC, full load | |
| AC Current(max) | 1.35Amax@230VAC | |
| Inrush current | Cold start,51.8A@230VAC 150us | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Voltage (VDC) | 24VDC |
| Voltage Range | 24V±5% | |
| Current(mA) | 10A | |
| Power(W) | 240W | |
| Channel | 1 | |
| Voltage ripple | ＜3% | |
|
Protection |
Over load | Output hiccup, after troubleshooting self recovery |
| Short circuit | Short circuit no output, troubleshooting output normal | |
| Over Current | Output hiccup, after troubleshooting self recovery | |
|
Safety& EMC |
Surge | L-N 1000VAC |
| Withstand Voltage | Input-output 3750Vac/1min/<5mA | |
| Performance standard | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | ta: -20℃~50℃ |
| Storage Temp., Humidity | -40℃~80℃, 20-90%RH | |
| tc | 90℃ @230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 400g±5%/PCS;20PCS/Carton;8kg±5%/Carton; Carton Size:360*285*180mm(L*W*H) | |
| Dimension | 345*51*35mm（L*W*H） | |
