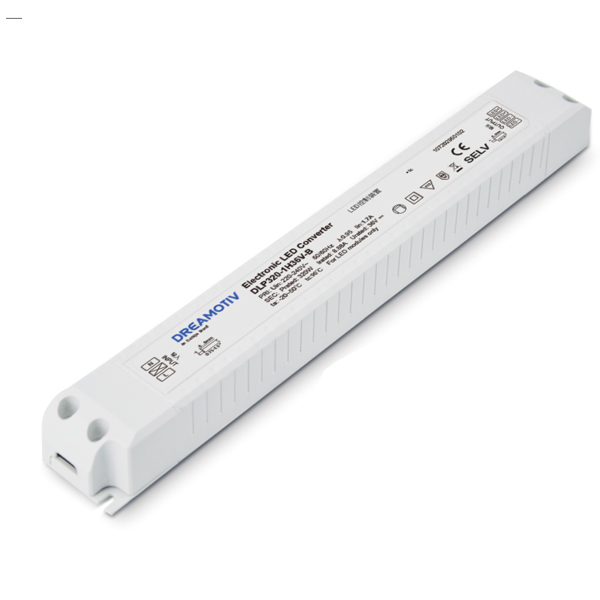

320W 36VDC Non-Dimmable CV Driver DLP320-1H36V-B
320W 36VDC Non-Dimmable CV Driver DLP320-1H36V-B
Features
· Single channel constant voltage output
· Suitable for LED indoor lamps
· High efficiency, high reliability and long life
· Works normally at -20℃~+50℃
· Protection type: overcurrent, load, short-circuit self-recovery protection
· The typical efficiency of the whole machine is up to 93%
· Comply with CE certification
Technical Paramaters
|
Model |
DLP320-1H36V-B | |
|
Input |
Efficiency | ≥93%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 3.3Amax@230VAC | |
| Turn on delay Time | ≤ 0.5s, at230Vac [When the light begins to shine] | |
| Inrush current | Cold start,80A@230VAC 100us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
|
output |
Current | 8.8A |
| Voltage | 36VDC | |
| Power | 320W | |
| Channel | 1 | |
| Output Voitage | ±5% | |
| Ripple current | ±3% | |
| Ripple Voitage | ±5% | |
| Current Accuracy | ±5% | |
| No load output voltage | 37.8VDC max | |
| Protection | Over load | Reduce current burp protection, troubleshoot normal output |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | Voltage drop, troubleshooting output normal | |
|
Safety& EMC |
Surge | L-N 1000VAC |
| Withstand Voltage | I/P O/P3750Vac/1min/<5mA | |
| Safety standards | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | ta: -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃@230Vac | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 750g±5%/PCS;30PCS/Carton;12kg±5%/Carton; Carton Size:360*285*180mm(L*W*H) | |
| Dimension | 345*51*35mm(L*W*H) | |
