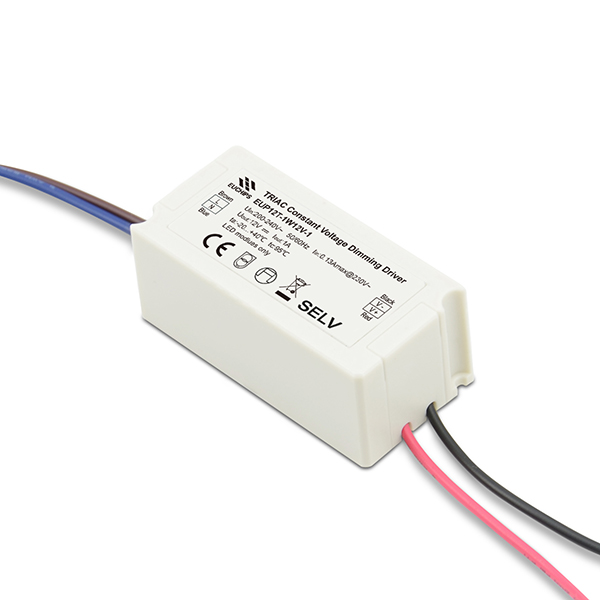

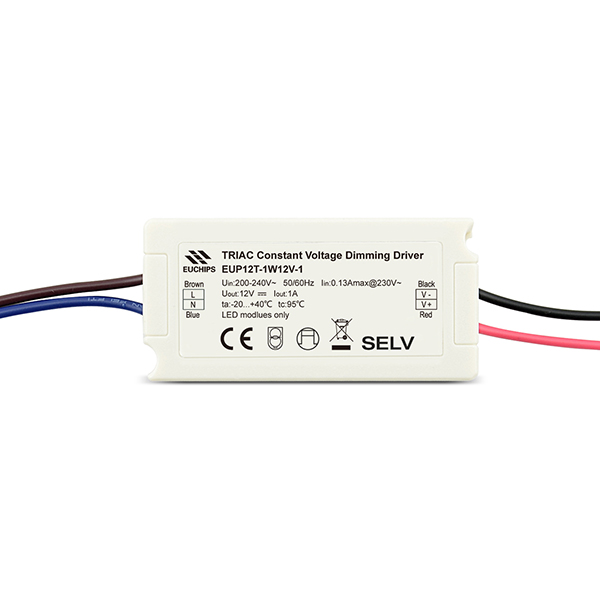

12W 12VDC Phase-cut CV Driver EUP12T-1W12V-1

Short Description:

  • Item No.: EUP12T-1W12V-1
  • Input Voltage: 200 – 240VAC
  • Output Current: 1A*1CH
  • Output Voltage: 12VDC
  • Output Power: 12W
  • Dim Mode: Triac / ELV
  • Size: 73*36*29mm

Product Detail

Product Tags

12W 12VDC 1A*1ch Phase-cut Constant Voltage Driver EUP12T-1W12V-1

Feature

1. Single-channel constant voltage output,12VDC
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240V AC
4. Dimming effect smooth, no flicker
5. Over power protection; Over voltage protection
6. Suitable for indoor LED lighting application

Technical Parameter

Model EUP12T-1W12V-1
Input Efficiency 77%@230VAC, Full load
Voltage 200VAC-240VAC
Frequency 50/60Hz
Current 0.13Amax@230VAC, Full load
Dimming voltage range 40-240VAC
Inrush Current 12A @230VAC
Output Current/Voltage/Power 1A/12VDC/12W
Ripple Current 120mVp-p
Channel 1
Voltage Tolerance ±3%
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac

ELV

Protection Over Power Hiccup mode, recovers after fault condition is removed
Over voltage Close output, recovers after fault condition is removed
Others Working Temp. -20℃~40℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 75℃
Material PC
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 85g±5%/PCS; 100PCS/Carton; 9kg±5%/Carton; Carton Size: 388*265*219mm(L*W*H)
Dimension 73*36*29mm(L*W*H)
