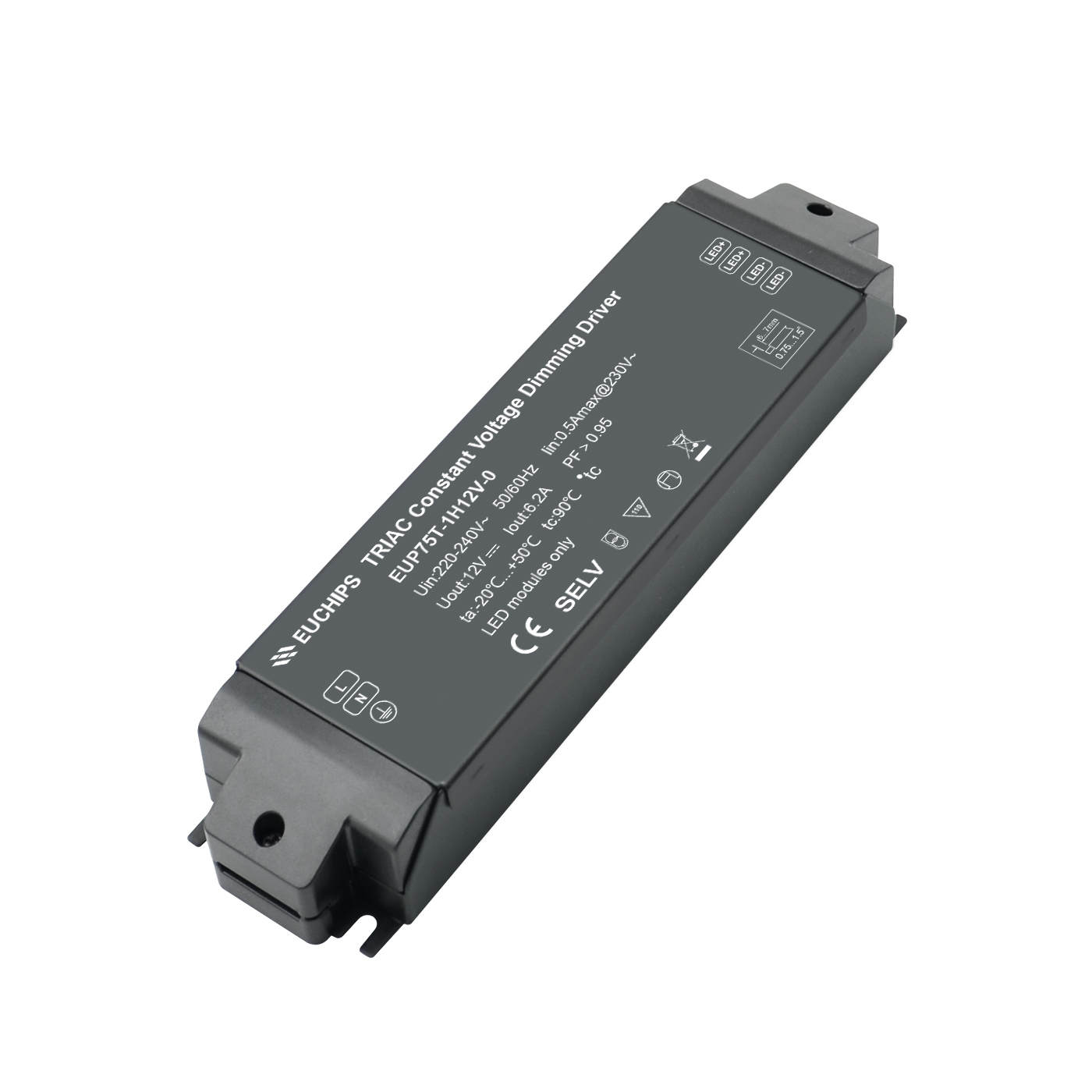

75W 12VDC Phase-cut CV Driver EUP75T-1H12V-0

Short Description:

  • Item No.: EUP75T-1H12V-0
  • Input Voltage: 220-240VAC
  • Output Current: 6.2A*1CH
  • Output Voltage: 12VDC
  • Output Power: 75W
  • Dim Mode: Triac/ELV
  • G.W.: 460g
  • Size: 213*54*33mm

Product Detail

Product Tags

75W 12VDC Constant Voltage Dimmable Driver EUP75T-1H12V-0

1. Single-channel constant Voltage output, each channel 6.2A Max.

2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer

3. Dimming range from 40VAC to 240V AC

4. Dimming effect smooth, no flicker

5. High efficiency: up to 84%

6. Over current protection; Short circuit protection;Over voltage protection, over temperature protection

7. Suitable for indoor LED lighting application

Technical Parameters

Model EUP75T-1H12V-0
Input Efficiency 84%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Power Factor >0.95@230VAC, Full load
Current 0.5Amax@230VAC, Full load
Dimming voltage range 40-240VAC
Inrush Current Cold start,18.2A(t width =700us measured at 50% Ipeak ) @230VAC
Output Current/Voltage/Power 6.2A/12VDC/74.4W
Ripple Current 200mVp-p
Channel 1
Voltage Tolerance ±3%
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac


Protection Over temperature Shut down and auto-restart after normal temperature
Over current Hiccup, recovers after fault condition is removed
Short Circuit Close the output, restart to recover since fault condition is removed for 10s
Over voltage Hiccup, recovers after fault condition is removed
Others Working Temp. -20℃~50℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 75℃
Material Metal
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 460g±5%/PCS; 20PCS/Carton; 10.5kg±5%/Carton; Carton Size: 254*233*219mm(L*W*H)
Dimension 213*54*33mm(L*W*H)
