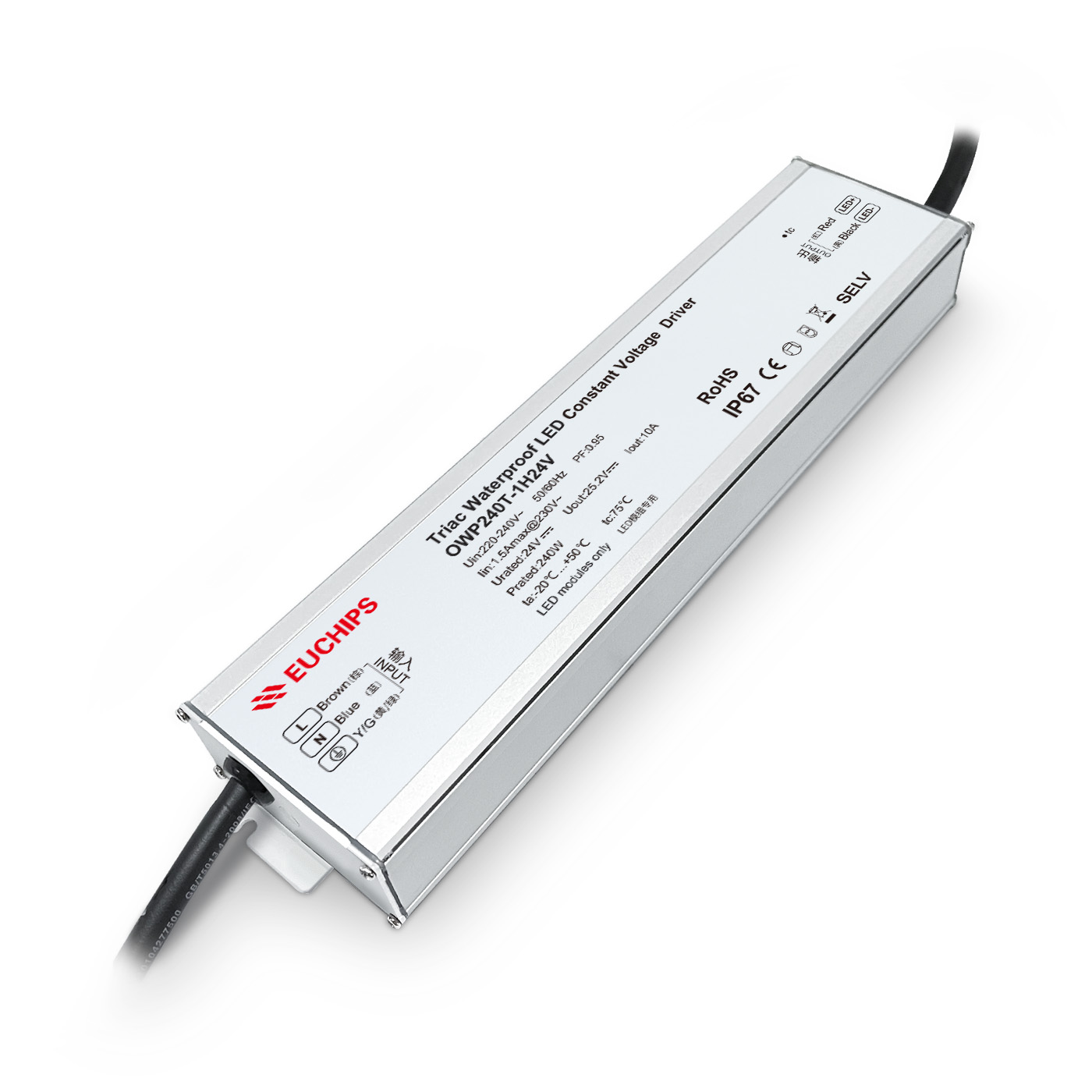

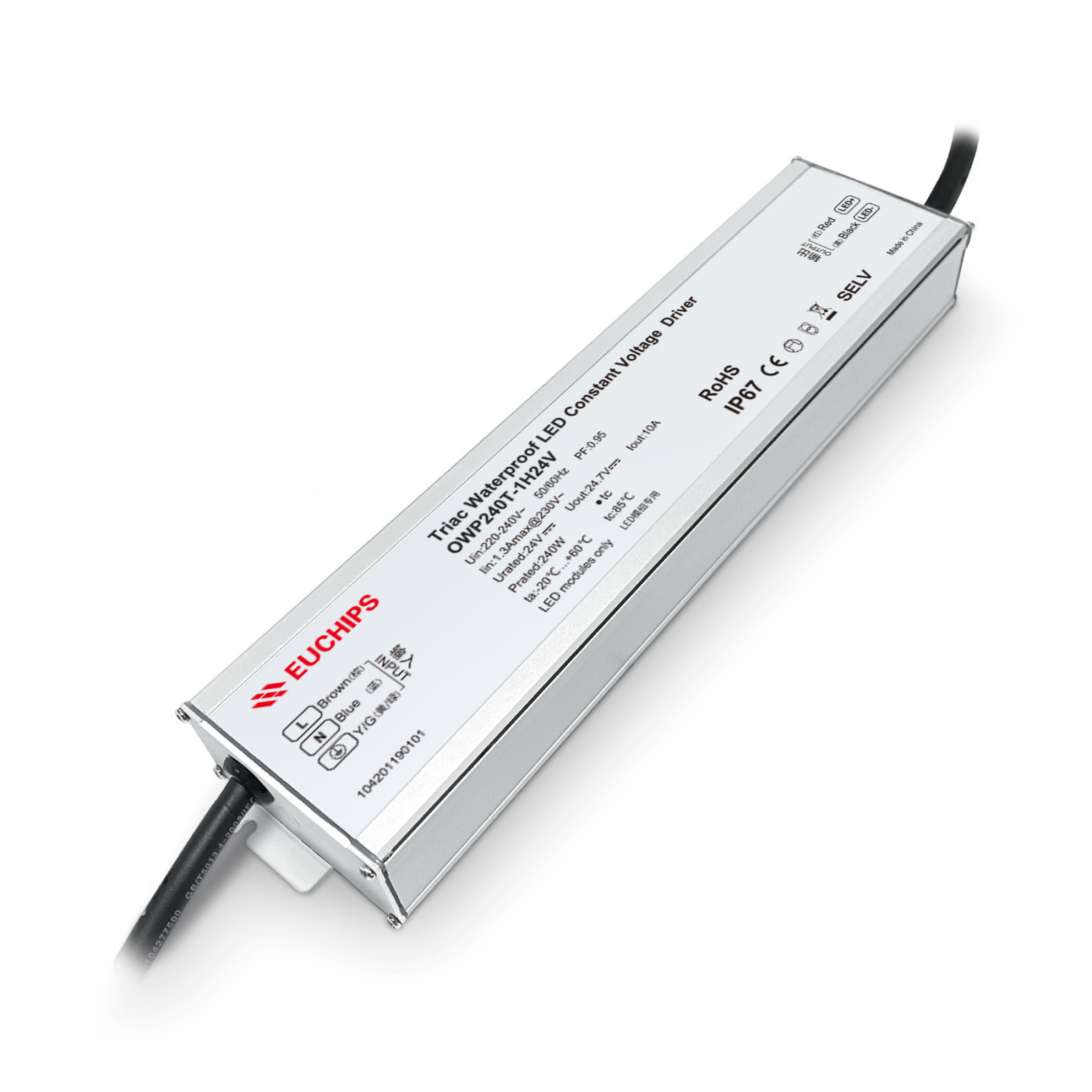

240W 24VDC Phase-cut Waterproof CV Driver OWP240T-1H24V
240W 24VDC Phase-cut Waterproof CV Driver OWP240T-1H24V
OWP240T-1H24V is a thyristor constant voltage output LED dimming driver. This driver supports both leading-edge and trailing-edge phase-cut dimmers, achieving a smooth dimming effect
Features
·Single-channel constant voltage output, with a maximum output current of 10.0A
·Supports Triac dimming, leading-edge and trailing-edge phase-cut dimming
·Waterproof rating of IP67, suitable for outdoor lighting
·Protection: overload, overcurrent, and short circuit protection
·With a lifespan of 50,000 hours and a 5-year warranty
Technical Parameters
| Model | OWP240T-1H24V | |
|
Input |
Efficiency | ≥91%@230VAC, full load |
| Frequency | 50/60Hz | |
| Voltage | 220VAC-240VAC | |
| Power Factor | ≥0.95, full load | |
| THD(full load) | <10%, full load | |
| Current | 1.3A@230VAC | |
| Inrush Current | Cold start, 60A@230VAC 350us, | |
| No load power | ≤4.0W | |
| Turn on delay Time | <0.75s (@230VAC, When the light begins to shine) | |
|
Output |
Current | 10.0A |
| Voltage | 24V | |
| Output voltage range | 24V±3% | |
| Output power | 240W max | |
| Channel | 1 | |
| Ripple | ≤240mV（p-p） | |
| No-load voltage | 24.7V max | |
|
Protection |
Short Circuit | Turn off the output, and it will recover automatically after the fault is eliminated |
| Over Current | Turn off the output, and it will recover automatically after the fault is eliminated | |
| Over Load | Turn off the output, and it will recover automatically after the fault is eliminated | |
|
Safety & EMC |
Surge | L-N: 6KV L-N-PG: 6KV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | EN61347-1,EN61347-2-13 | |
| EMI Emission | EN55015 | |
| Insulation Resisance | 5MΩ | |
|
Function |
Dimming Type | Triac Leading edge and trailing edge phase-cut dimming |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
|
Other |
IP Rating | IP67 |
| Working Temp. | -20~+60°C | |
| Storage Temp., Humidity | -40~+85°C, 20~90% RH | |
| tc | 85℃ for safety & life | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Material | Metal | |
| Dimension | 273*64*33mm (L*W*H) | |
| Packing(weight) | Net weight: 1100g±5%/PCS; 20PCS/Carton; 22.5kg±5%/Carton; Carton Size:367*313*208mm(L*W*H) | |
