RGBW 16ch 4 Zones 4 Scenes DMX Touch Panel Controller DMX-E03

Short Description:

  • Item No.: DMX-E03
  • Input Voltage: 5
  • Output Power: 3
  • Dim Mode: DMX512(1990)
  • G.W.: 200
  • Size: 146*106*11

Product Detail

Product Tags

RGBW 16ch 4 Zones 4 Scenes DMX Touch Panel Controller DMX-E03

Feature

1. Meet DMX512ㄗ1990ㄘinternational standard protocol
2. Support 4 zones separately, each zone 4 channels.
3. Control RGBW lights separately or synchronously
4. Support speed, brightness, color live adjustment.
5. Can save 4 customized scenes
6. Built-in 36 kinds of mode
7. High sensitivity panel touch button and color ring
8. Color ring using scrub concave ring design, more ergonomics.
9. Using glass material, stylish appearance.
10.Compatible with any DMX fixtures or DMX drivers.
11.Can be installed in the wall, suitable for all types of wall boxes.

Technical Parameter



Product Name RGBW 16ch 4 Zones 4 Scenes DMX Touch Panel Controller
Item DMX-E03
Voltage 5VDC
Power 3W
DMX channels 16 (Each zone 4 channels)
Zones 4
Scenes 4
Dimmer DMX512
Indicators 13
Product Size 146(L) *106 (W)*11 (H)mm
N.G. 200g
Work temperature 0⊥ – 50⊥

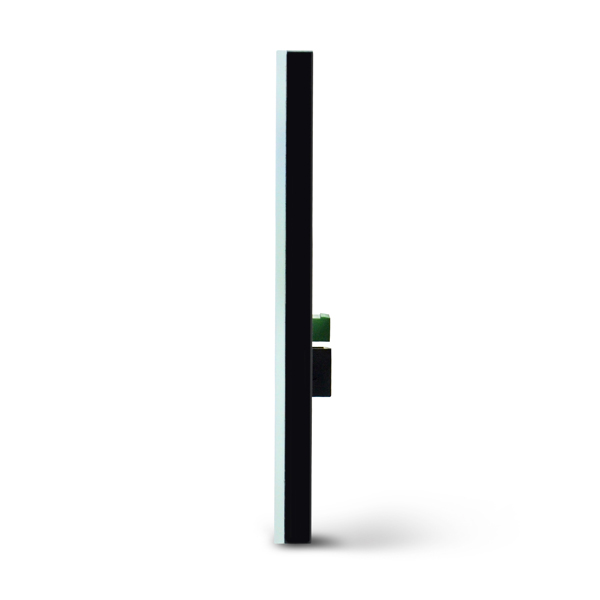

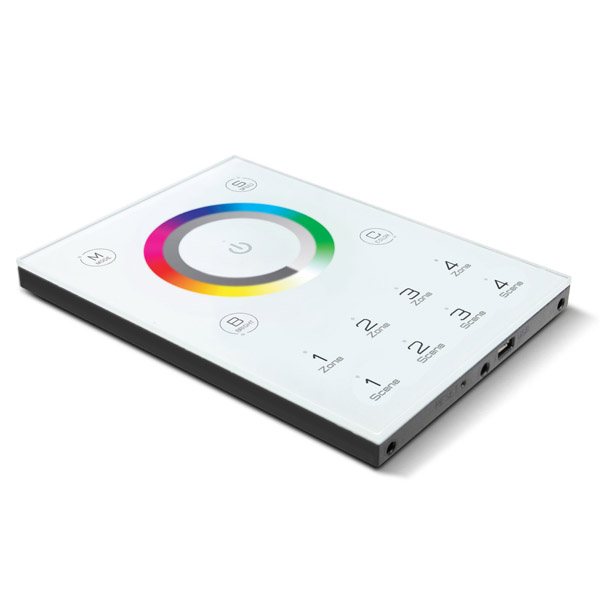

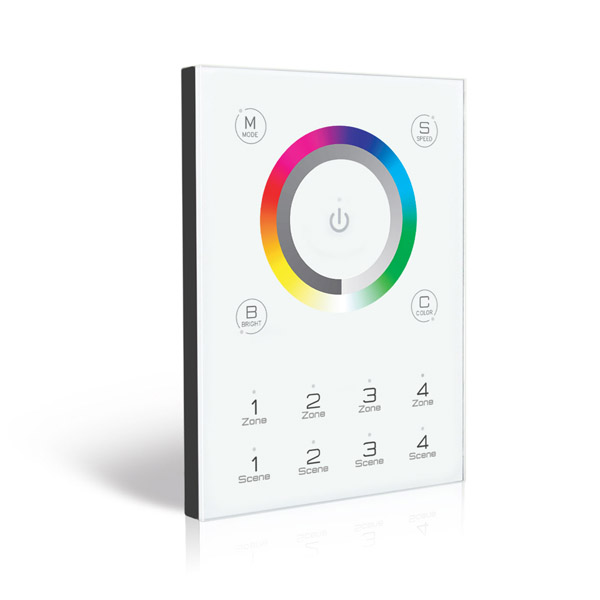

Appearance

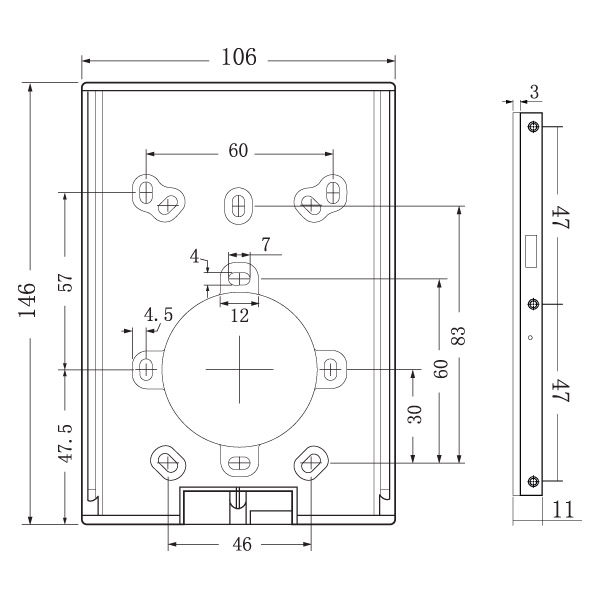

Dimension

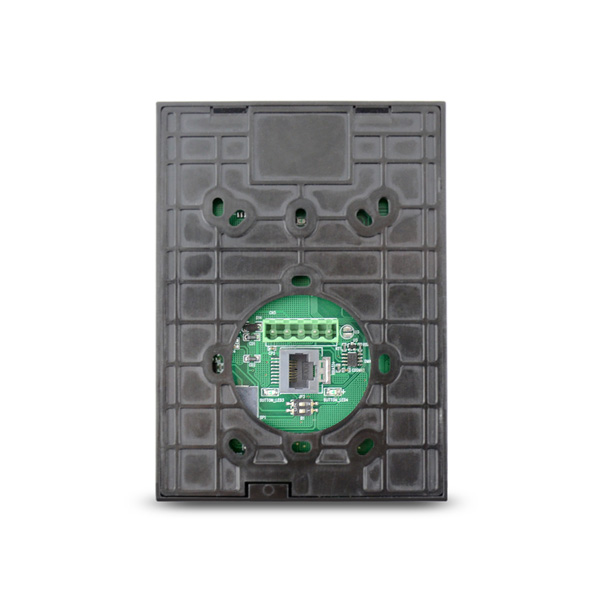

Interface
