20W 400/500mA*1ch Phase-cut CC Driver DPE20T-1HMC
20W 400/500mA*1ch Phase-cut CC Driver DPE20T-1HMC

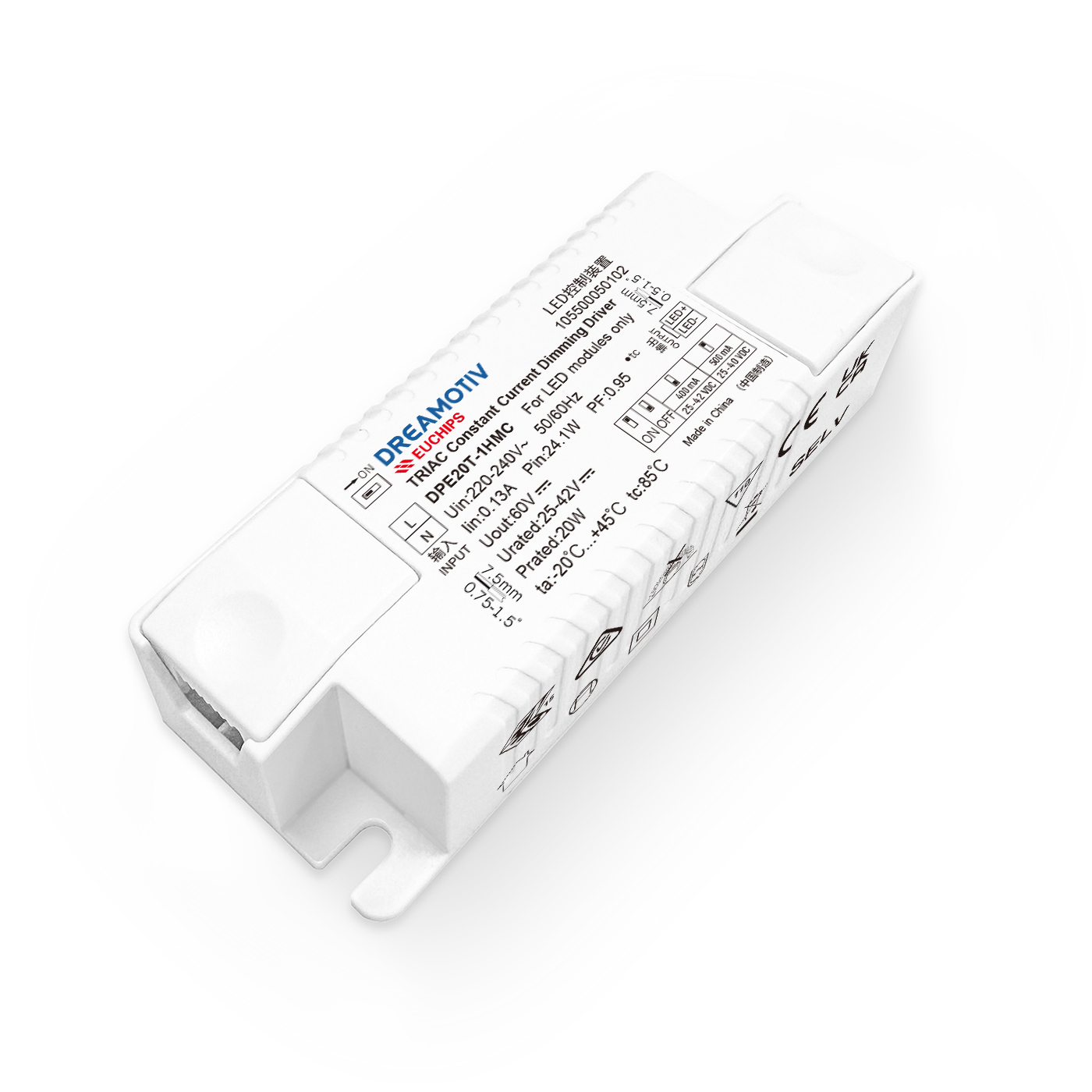

The DPE20T-1HMC is a 20W Triac-dimmable constant current LED driver, featuring a compact body design with a square-shaped housing. It is widely used in downlights, spotlights, and panel lights.Support cutting-edge phase-cutting and trailing edge phase-cutting dimming.
Features
• Single-channel constant current output
• Over temperature and overload protection, V0 flame-retardant housing
• High efficiency up to 80%
• Removable end-cover design for easy installation in narrow spaces
• 50,000-hour lifespan with a 5-year warranty
• IP20 protection rating, suitable for indoor Class II luminaires
· Flicker-free isolation
Technical Parameters
|
Model |
DPE20T-1HMC | |
|
Input |
Rated input voltage | 220VAC~240VAC |
| Input Voltage range | 198VAC~264VAC | |
| Input Current | 0.13Amax@230VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC, full load | |
| Efficiency | 80%@230VAC, full load | |
| THD | <20%@230VAC, full load | |
| No load power | ≤0.5W | |
| Inrush Current | Cold start, 3.6A@230VAC 25us | |
|
Output |
Current/Voltage/power | 400mA/25-42VDC/16.8W 500mA/25-40VDC/20W |
| Current Accuracy | ±5% | |
| Frequency | 65K | |
| Channel | 1 | |
| Output ripple current | High frequency>1K HZ: ±5% | |
| Low frequency<120 HZ: ±5% | ||
| Pst LM | ≤1.0 | |
| SVM | ≤0.4 | |
| No load output voltage | 60VDC max | |
| Turn on delay Time | ≤0.5s, @230Vac(When the light begins to shine) | |
|
Function |
Dimming type | Triac Leading edge phase cutting and trailing edge phase cutting dimming |
| Dimming range | 1%-100% | |
| Dimming curve | Linearity | |
| Flicker (wave depth) | Complies with IEEE Std 1789-2015 standard | |
|
Protection |
Over load | Shut down output, Auto-recovery after Fault Clearance |
| over temperature | When the IC temperature exceeds 130°C, the chip enters overtemperature regulation mode, gradually reducing the output current, thereby controlling the output power and temperature rise. | |
|
Safety& EMC |
Surge | L-N:1KV (Comb Wave) |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
|
Safety Standards |
TUV (Germany) EN61347-1，EN61347-2-13，EN62493 CB (CBmember states) IEC61347-1，IEC61347-2-13 | |
| CE (Europe) EN61347-1，EN61347-2-13，EN62384 RCM (Australia) AS 61347-1，AS 61347-2-13 | ||
| ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission | CE (Europe) EN55015，EN61000-3-2，EN61000-3-3，EN61547 RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |
|
Environment |
Working Temp | -20℃~45℃ |
| Storage Temp | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
tc | 85℃ for safety & 80℃ for life |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 95.8*36.2*24mm(L*W*H) | |
| Packing(weight) | Net weight: 110g±5%/PCS; 120PCS/Carton; 13.7kg±5%/Carton; Carton Size: 367*292*137mm(L*W*H) | |
| Noise | ≤30dB(A) @ 20-100cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz，an ambient temperature of 25 ℃ and 50% humiditywithout any special instructions | |
