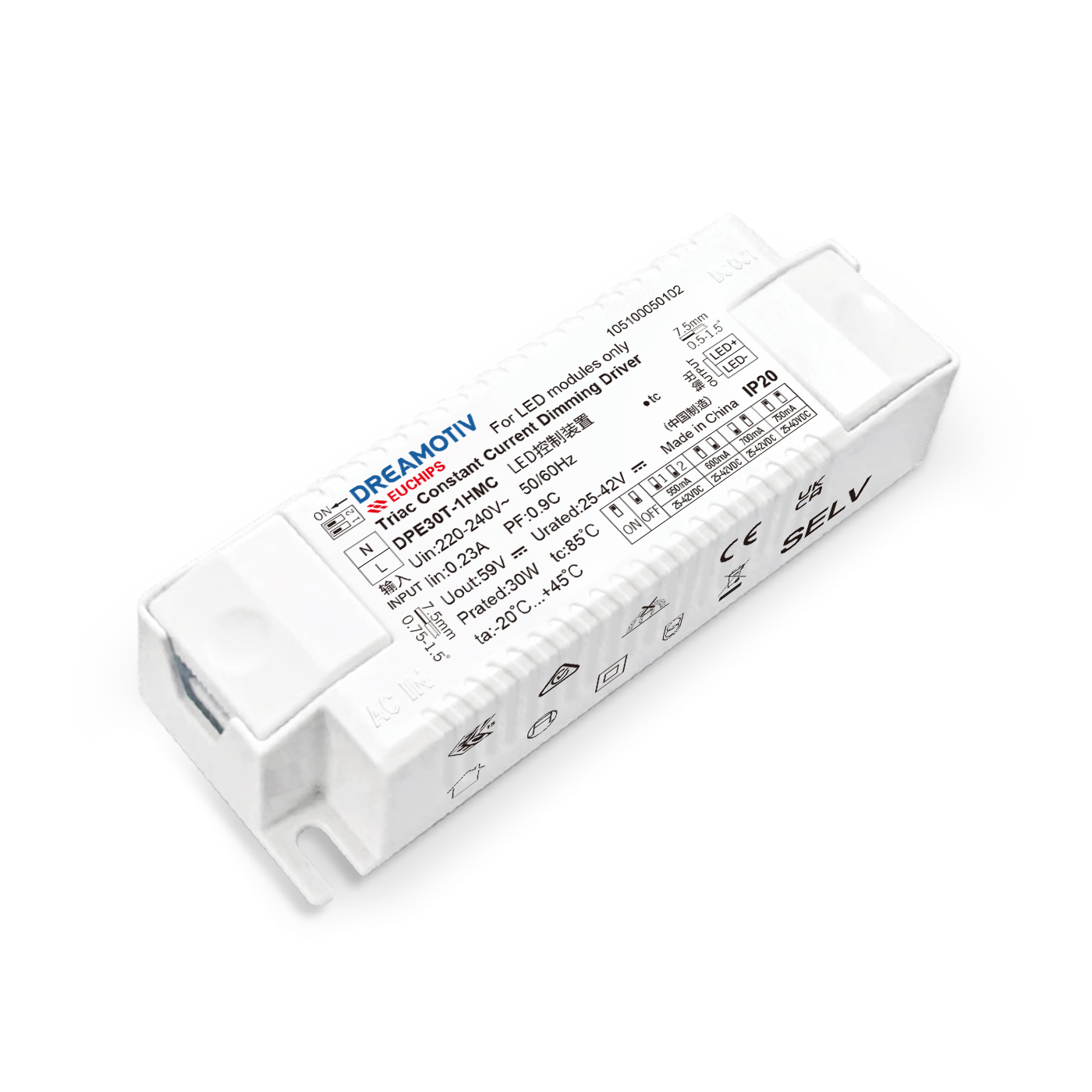

30W 550~750mA*1ch Phase-cut CC Driver DPE30T-1HMC
30W 550~750mA*1ch Phase-cut CC Driver DPE30T-1HMC
DPE30T-1HMC is a 30W Triac-dimmable constant current LED driver, featuring a compact body design with a square-shaped housing. It is widely used in downlights, spotlights, and panel lights.Support
cutting-edge phase-cutting and trailing edge phase-cutting dimming.
Features
• Single-channel constant current output
• Short circuit, overload, no-load protection, V0 flame-retardant housing
• High efficiency up to 87%
• Removable end-cover design for easy installation in narrow spaces
• 50,000-hour lifespan with a 5-year warranty
• IP20 protection rating, suitable for indoor Class II luminaires
· Flicker-free isolation
Technical Parameters
| Model | DPE30T-1HMC | ||
| Input | Rated input voltage | 220VAC-240VAC | |
| Input voltage range | 198VAC-264VAC | ||
| Input Current | 0.23Amax@230VAC | ||
| Input Frequency range | 50/60Hz | ||
| Power factor | 0.9C@230VAC, full load | ||
| Effciency | 87%@230VAC, full load | ||
| THD | <25%@230VAC, full load | ||
| Inrush current | Cold start, 2.5A@230VAC 38.2us, | ||
| Leakage current | ≤0.7mA | ||
|
Output |
Current/Voltage/Power | 550mA/25-42VDC/23.1W 600mA/25-42VDC/25.2W 700mA/25-42VDC/30W 750mA/25-40VDC/30W | |
| Current Accuracy | ±8% | ||
| Output Channel | 1 | ||
| Current Overshoot | ±5% | ||
| Output ripple | High frequency>1K HZ: ±5% | ||
| Low frequency<120 HZ: ±5% | |||
| No load output voltage | 59VDC Max | ||
| CIE-SVM | ≤0.4 | ||
| IEC-Pst | ≤1 | ||
| Turn on time | <2s, @230Vac (When the light begins to shine) | ||
|
Protection |
Dimming Type | Triac Linearity / Logarithm curve @230V 50Hz | |
| Dimming range | 5％-100％ | ||
| Dimming depth | 5% | ||
| Flicker | Complies with IEEE Std 1789-2015 standard | ||
|
Protection |
Short-circuit | Shut down output, Auto-recovery after Fault Clearance | |
| Over Current | Load power ≥130% protection, Current Drop, Auto-recovery after Fault Clearance | ||
| No-load | Shut down output, Auto-recovery after Fault | ||
|
Safety& EMC |
Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | ||
| Safety Standards | CB(CBmember states) IEC61347-1，IEC61347-2-13;CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia)AS 61347-1，AS 61347-2-13; ENEC (Europe)EN61347-1，EN61347-2-13，EN62384 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
|
Environment |
Working Temp | -20℃~45℃ | |
| Storage Temp | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
| Others | tc | 85℃ for safety | |
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:80℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 115*41*28mm(L*W*H) | ||
| Packing(weight) | Net weight: 185g±5%/PCS; 100PCS/Carton; 19.0kg±5%/Carton; Carton Size: 472*218*222mm(L*W*H) | ||
| Noise | ≤30dB(A) @ 20-100cm | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
