20W 500mA*1ch Phase-cut CC Driver DPC20T-1H500C

Short Description:

Item No.: DPC20T-1H500C
Output Power: 20W

Download Certificates Download Test Reports

Product Detail

Product Tags

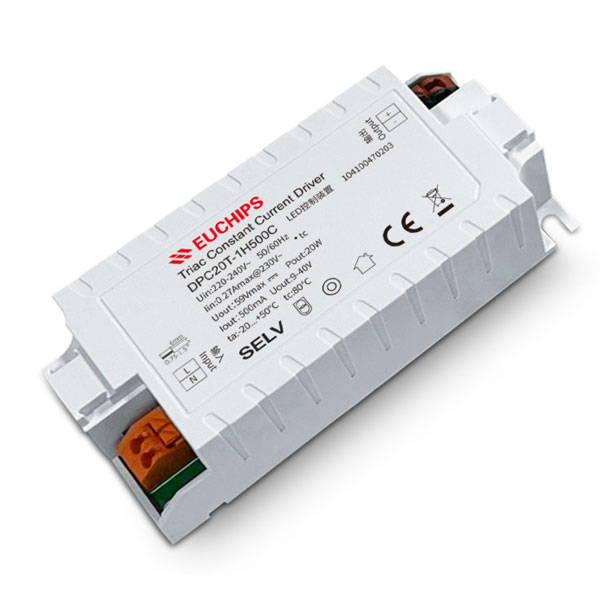

20W 500mA Phase-cut Constant Current Driver DPC20T-1H500C
DPC20T-1H500C is a 20W constant current dimming LED driver. Support leading edge phase tangent and trailing edge phase
cut dimmer, dimming curve smooth.

Features
· Single channel constant current output
· High voltage input: 220VAC ~ 240VAC
· Efficiency up to 82%
· Built-in active PFC function
· Short circuit protection, load protection, overvoltage protection
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc

Technical Parameters

Model	DPC20T-1H500C
Input	Efficiency	≥82%@230VAC,Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	0.5@230VAC,Full load
	THD	NC
	AC Current(max)	0.27Amax@230VAC
	No load power	＜3W
	Inrush Current(max)	Cold start,45A@230VAC 150us
	Turn on delay Time	≤0.5s , at230Vac (When the light begins to shine)
Output	Current	500mA
	Voitage	9-40VDC
	Power	20W
	Channel	1
	Current Accuracy	±5%
	No load output voltage	59V max
Protections	Over Voltage	Current down, troubleshooting output normal
	Over load	Reduce current Hiccup, troubleshooting output normal
	Short circuit	Close the output and recover after troubleshooting
Function	Dimming type	Triac
	Dimming range	1%-100%
	Dimming curve	logarithm
	Flicker	No strobe
Safety&EMC	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
Safety&EMC	Insulation Resisance	5MΩ
Others	Working Temp.	-20℃~+50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	80℃
	Material	Plastic case
	IP Rating	IP20
	Lifetime	30,000h@tc:50℃
	Warranty Condition	3 years
	Switch Cycle	>25000 times
	Packing(weight)	Net weight: 90g±5%/PCS; 50PCS/Carton; 5kg±5%/carton; Carton size: ———mm(LWH)
	Dimension	9743.530mm(LWH)
