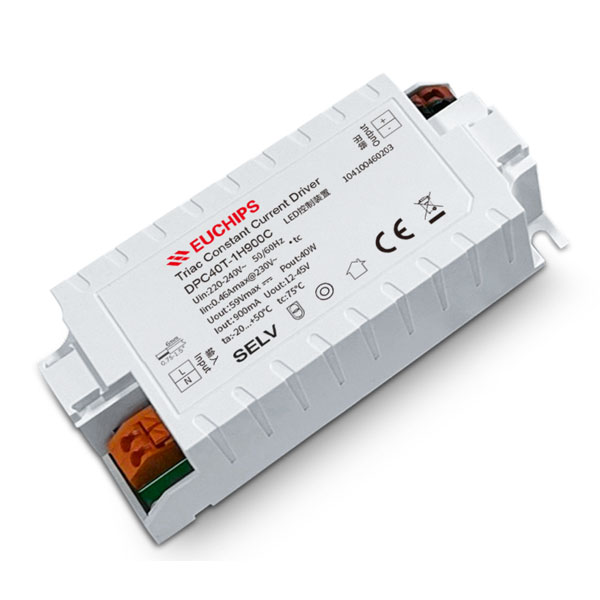

40W 900mA*1ch Phase-cut CC Driver DPC40T-1H900C
40W 900mA Phase-cut Constant Current Driver DPC40T-1H900C
DPC40T-1H900C is a 40W constant current dimming LED driver. Support leading edge phase tangent and trailing edge phase cut dimmer, dimming curve smooth.
Features
· Single channel constant current output
· High voltage input: 220VAC ~ 240VAC
· Efficiency up to 86%
· Built-in active PFC function
· Short circuit protection, load protection, overvoltage protection
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc
Technical Parameters
| Model | DPC40T-1H900C | |
| Input | Efficiency | ≥86%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.5@230VAC,Full load | |
| THD(full load) | There is no | |
| AC Current(max) | 0.46Amax@230VAC | |
| No load power | ≤2W | |
| Inrush Current(max) | Cold start,45A@230VAC 100us | |
| Turn on delay Time | ≤0.5s , at230Vac (When the light begins to shine) | |
| Output | Current | 900mA |
| Voitage | 12-45VDC | |
| Power | 40W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| Output voltage range | 12-45VDC | |
| No load output voltage | 59V max | |
| Protections | Over Voltage | Hiccup, self-recovery after removing faults |
| Over load | Hiccup, self-recovery after removing faults | |
| Short circuit | Turn off the output, self-recovery after troubleshooting | |
| Function | Dimming type | Triac |
| Dimming range | 1%-100% | |
| Dimming curve | logarithm | |
| Flicker | No strobe | |
| Safety&EMC | Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 75℃ | |
| Material | Plastic case | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:75℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >25000 times | |
| Packing(weight) | Net weight: 90g±5%/PCS; 50PCS/Carton; 5kg±5%/carton; Carton size: —*—*—mm(L*W*H) | |
| Dimension | 97*43.5*30mm(L*W*H) | |
