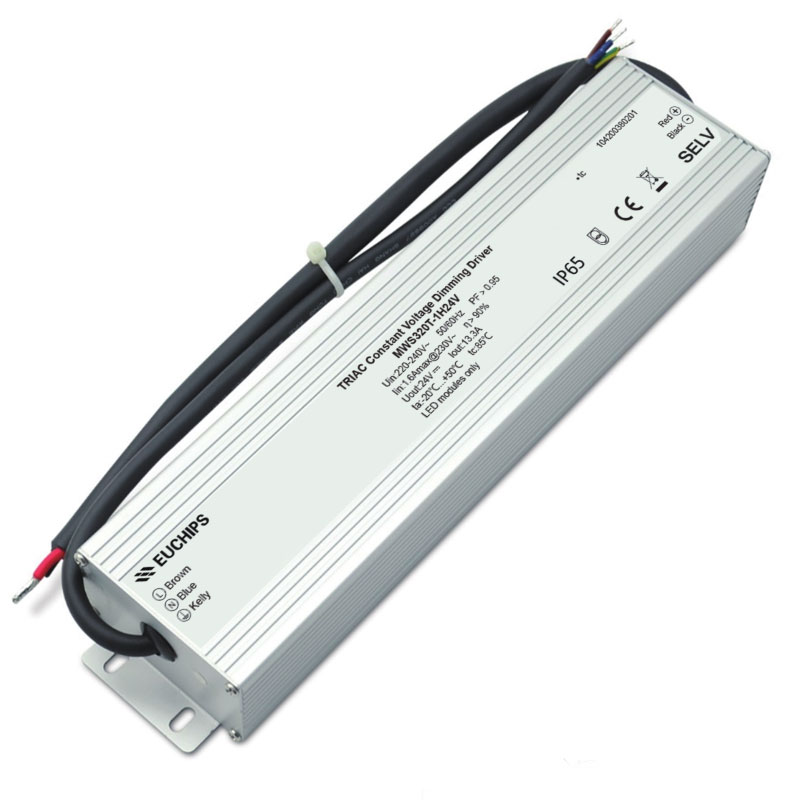

320W 24VDC Phase-cut Waterproof CV Driver MWS320T-1H24V
320W 24VDC Constant Voltage Driver MWS320T-1H24V
MWS320T-1H24V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens,Dalitek etc.) to achieve a smooth dimming effect. It can be suitable for indoor and outdoor LED lamps.
Features
1. Single channel constant voltage output, maximum output current is 13.3A
2. Built in active PFC, PF > 0.99
3. Support for triac and ELV dimming
4. Dimming voltage range 40vac – 240VAC
5. Smooth dimming curve, flicker free
6. 92% efficiency
7. Over current, short circuit protection
8. IP65, suitable for indoor and outdoor LED lamps
Technical Parameter
| Model | MWS320T-1H24V | |
| Output | Voltage | 24VDC |
| Current | 13.3A | |
| Power | 320W | |
| Current Tolerance | ±3% | |
| Ripple Current | 300mVp-p | |
| Input | Voltage | 220VAC-240VAC |
| Frequency | 50/60Hz | |
| Voltage Range | 40-240VAC | |
| Efficiency | 92%@230VAC,Full load | |
| Power Factor | <0.99%@230VAC, full load | |
| THD | <5%@230VAC,Full load | |
| Current | <1.6Amax@230VAC, Full load | |
| nrush Current | Cold start, 45A (twidth=50us measured at 50% Ipeak) @230VAC | |
| Function | Dimming Mode | Triac/ ELV |
| Protection | Short Circuit | Hiccup, recovers after fault condition is removed |
| Over Current | Hiccup, recovers after fault condition is removed | |
| Others | Dimension | 317*70*44mm(L*W*H) |
| Packing Size | 330*90*50mm(L*W*H) | |
| N.W | 1500g | |
| IP Rating | IP65 | |
| Working Temp. | -20℃ ~50℃ | |
| tc | 85℃ | |
| Humidity | 20~90% RH | |
| Lifetime | 50000h@tc:75℃ | |
| Switch Cycle | >100,000 times | |
