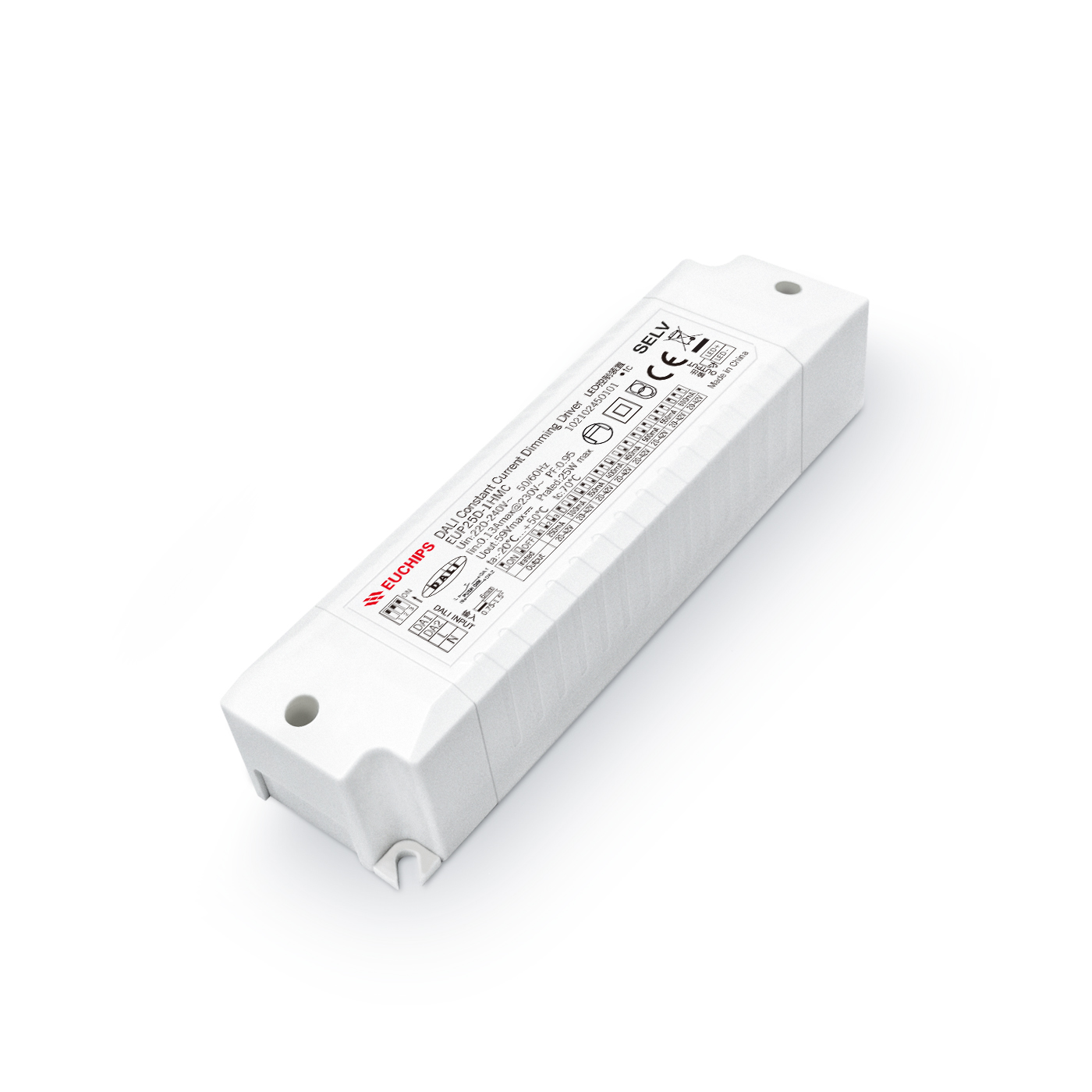

25W 250~600mA*1ch DALI CC Driver EUP25D-1HMC
25W 250~600mA*1ch DALI CC Driver EUP25D-1HMC
Features
· Single-channel constant current output, with multiple current levels selectable
· Comply with DALI protocol standard IEC62386
· Short circuit protection, overload protection, overcurrent protection, V0 flame-retardant housing.
· With a protection level of IP20, it is suitable for indoor Class I and Class II lighting fixtures
· Dimming range: 1%-100% dimming, with smooth dimming without step feeling and Flicker free
· Lifespan of 50,000 hours, with a 5-year warranty
· Efficiency up to 92%
· Suitable for LED indoor lighting fixtures, such as downlights, spotlights, panel lights, etc
Technical Parameters
|
Model |
EUP25D-1HMC | |
|
Input |
Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.13Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | ≥92%@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current | Cold start, 30A@230V 200us | |
|
Output |
Current/Voltage/Power | 250mA/20-42V/10.5W 300mA/20-42V/12.6W 350mA/20-42V/14.7W 400mA/20-42V/16.8W
450mA/20-42V/18.9W 500mA/20-42V/21W 550mA/20-42V/23.1W 600mA/20-42V/25W |
| Ripple currentaccuracy | ±5% Output current ripple LF (<3KHz) ripple current percentage = (peak-to-peak value) / (2 * average value standard reference RMS/FRS file) | |
| Current accuracy | ±5% | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Line Regulation | ±3% @Full load | |
| Load Regulation | ±3% @Full load | |
| Turn on Time | ≤0.75s, at230Vac (When the light begins to shine) | |
|
Function |
Dimming Type | DALI |
| Dimming Range | 1%-100% (Dim until turned off) | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
|
Protection |
Short circuit | Hiccups, self-recovery after troubleshooting |
| Overcurrent | Hiccups, self-recovery after troubleshooting | |
| Overload | Protection for load voltage >45V; current drops with hiccups, troubleshooting and output normal | |
|
Safety& EMC |
Surge | L-N:1kV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
|
Safety Standards |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
|
EMC Emission |
CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Environment |
Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | Comply with 2011/65/EU |
| tc | 70℃ for safety & life | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 135*36*25mm(L*W*H) | |
| Packing(weight) | Net weight: 100g±5%/PCS; 80PCS/Carton; 8.5kg±5%/Carton; Carton Size: 449*335*148mm(L*W*H) | |
| Noise | In a quiet environment, no noise beyond 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
DALI
| Parameter | Min. |
Typ. |
Max. |
| DALl Interface Standard | IEC62386-101,102,207 | ||
| Dimming Range | 0.5% |
Logarithmic |
100% |
| DA1,DA2 Current | 0 |
2mA |
|
