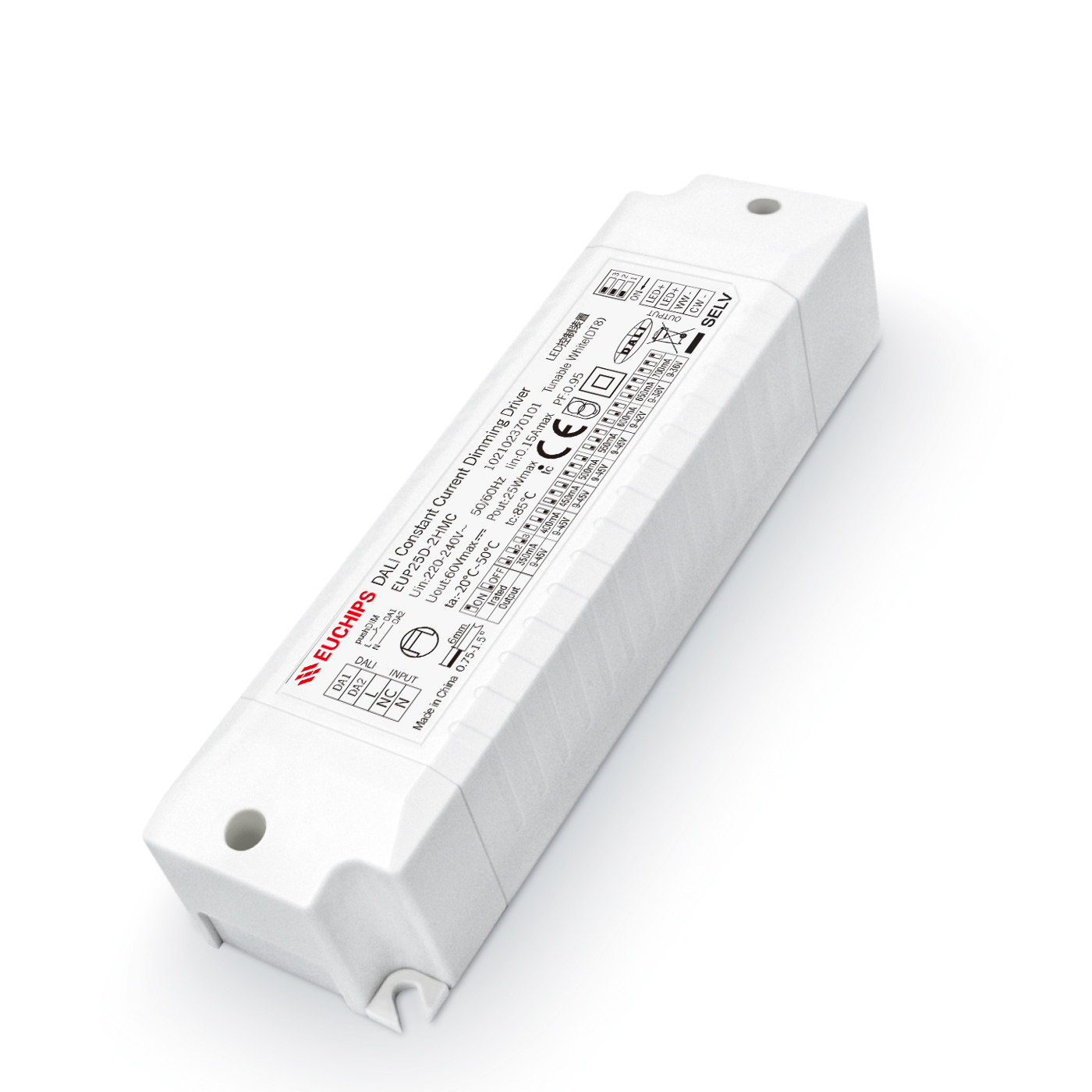

25W 350~700mA*2ch DALI CC Driver EUP25D-2HMC

Short Description:

Item No.: EUP25D-2HMC
Output Power: 25W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

25W 350~700mA*2ch DALI CC Driver EUP25D-2HMC

Features

· Dual channel constant current output, multi-level current optional
· Following the DALI protocol standard IEC62386-101 102 207 209
· Support Touch DIM function
· Built in active PFC function
· Dimmable smoothly, flicker-free.
· Short circuit protection, overcurrent protection, overload protection
· Suitable for LED indoor lighting fixtures, such as tube lights, panel lights, etc

Technical Parameters

Model	EUP25D-2HMC
Input	Input Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.15Amax@230VAC
	Power Factor	≥0.95@230VAC, Full load
	Efficiency	≥84%@230VAC, Full load
	THD	<10%@230VAC, Full load
	Standby power	<1W@230VAC
	No-load power	<1W@230VAC
	Inrush Current	Cold start, 30A@230VAC 100us
Output	Current/Voltage/Power	350mA/9-45V/15.75W 400mA/9-45V/18W 450mA/9-45V/20.25W 500mA/9-45V/22.5W 550mA/9-45V/24.75W 600mA/9-42V/25.2W 650mA/9-38V/24.7W 700mA/9-36V/25.2W
	Channel	2
	Current Accuracy	±5%
	Ripple current	<3%60V max
	No load output voltage	<3%60V max
	Turn on delay Time	<0.65s, at230Vac (When the light begins to shine)
Function	Dimming Type	DALI / Touch DIM
	Dimming Range	1%-100% (Dim until turned off)
	Dimming Curve	Logarithm
	Flicker	Flicker free
	Color temperature	2700K-6500K
Protection	Short circuit	Shut down output, Auto-recovery after Fault Clearance
	Over Current	Shut down output, Auto-recovery after Fault Clearance
	Over load	110%-150%
Safety& EMC	Surge	L-N:1k VAC
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA,
	Safety standards	EN61347, GB19510
	EMC Eission	EN55015, EN61000-3-2
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation Resisance	5Mfi
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	85℃ for safety &life
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	1353625mm(LWH)
	Packing(weight)	Net weight: 150g±5%/PCS; 80PCS/Carton; 12.5kg±5%/Carton; Carton Size: 449335148mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.

DALI

Parameter	Min.	Typ.	Max.
DALl Interface Standard	IEC62386-101,102,207
Dimming Range	0.5%	Logarithmic	100%
DA1,DA2 Current	0		2mA
