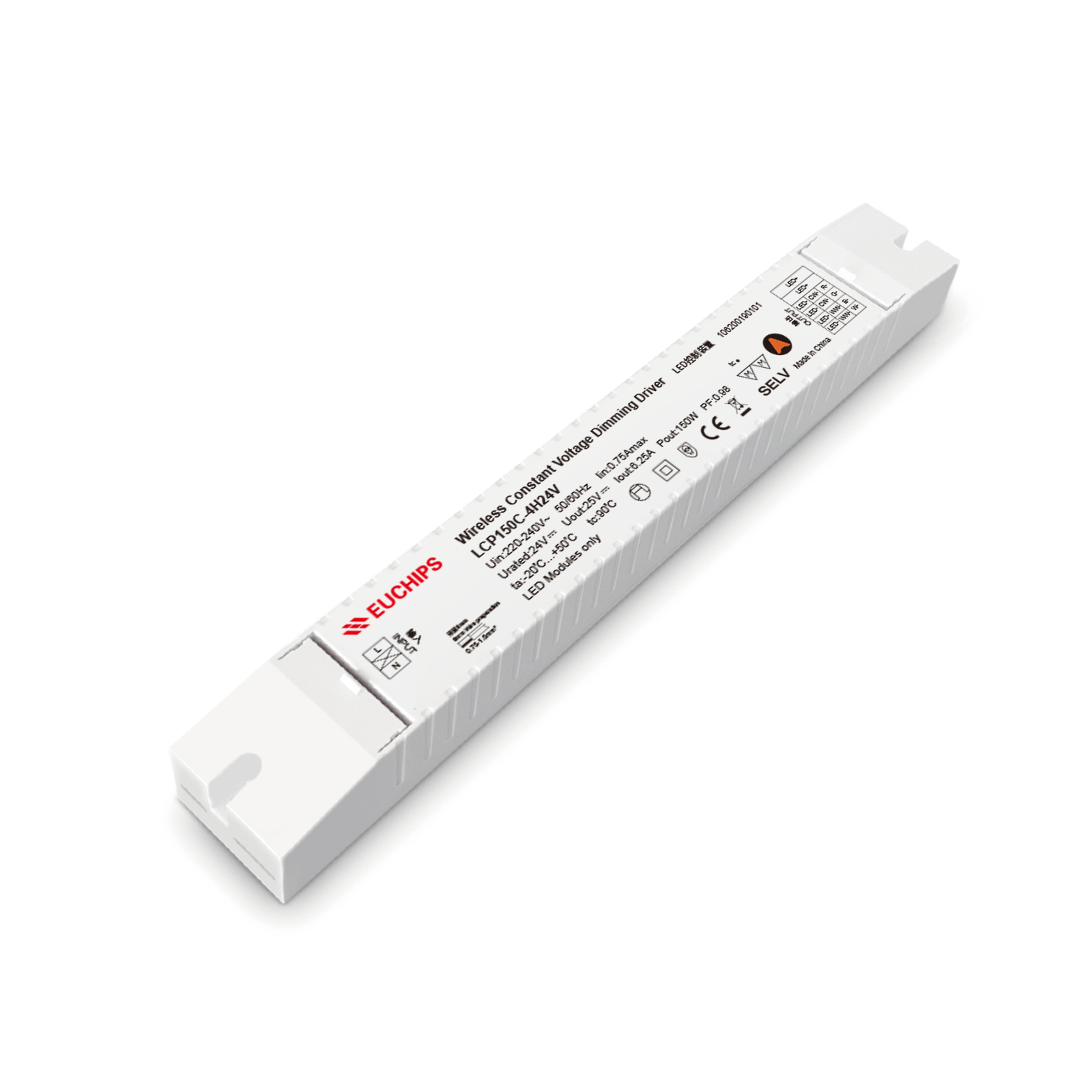

150W 24VDC 4ch Casambi CV Dimming Driver LCP150C-4H24V

Short Description:

Item No.: LCP150C-4H24V
Output Power: 150W

Download Certificates Download Test Reports

Product Detail

Product Tags

150W 24VDC 4ch Casambi CV Dimming Driver LCP150C-4H24V

LCP150C-4H24V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

· 1, 2, and 4 channels are switchable, maximum output current 6.25A.
· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, short circuit protection, Overcurrent protection ,V0 flame-retardant enclosure
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires
· 50,000-hour lifespan with a 5-year warranty Flicker free Overload

Technical Parameters

Model	LCP150C-4H24V
Input	Efficiency	94%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.98@230VAC, Full load
	THD(full load)	≤10%@230VAC, Full load
	AC Current(max)	0.76Amax@230VAC
	No load Power	<0.5W@230VAC
	Standby power	<0.5 W@230VAC
	Inrush Current(max)	Cold start,63.4A@230VAC 220us
	Turn on Time	<0.75s (When the light begins to shine)
Output	Output Current	6.25A
	Output Voltage	24VDC±5%
	Output Power	150W
	Output Channel	1, 2, 4 channels are switchable
	Over power limit	≥136%
	Ripple	≤1%
	Frequency	1 channel 20K Hz, 24 channels 4K Hz
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	1%-100% Dimming to off
	Dimming curve	Logarithm
Protection	Short Circuit	Shut down output, Auto-recovery after Fault Clearance
	Over Load	Hiccup protection, Auto-recovery after Fault Clearance
	Over Current	Hiccup protection, Auto-recovery after Fault Clearance
Safety & EMC	Surge	L-N:2kV
	Safety standard	CCC(China) GB19510.1，GB19510.14; TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB(CB member states) IEC61347-1，IEC61347-2-13; CE(European Union) EN61347-1，EN61347-2-13，EN62384
		RCM(Australia) AS 61347-1，AS 61347-2-13; ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC	CCC(China) GB/T17743，GB17625.1
		CE(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation impedance	5MΩ
Environment	Working Temp.	[ -20~+50]°C [-4°F~122°F]
	Storage Temp Humidity	[ -40~+90]°C [-40°F~194°F] 20~90%RH
	tc	90℃ [ 194°F ]
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:90℃ [ 194°F ]
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	2954032mm[LWH]
	Packing(weight)	Net weight: 305g±5%/PCS; 50PCS/Carton; 15.7kg±5%/Carton; Carton Size: 434302174mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
