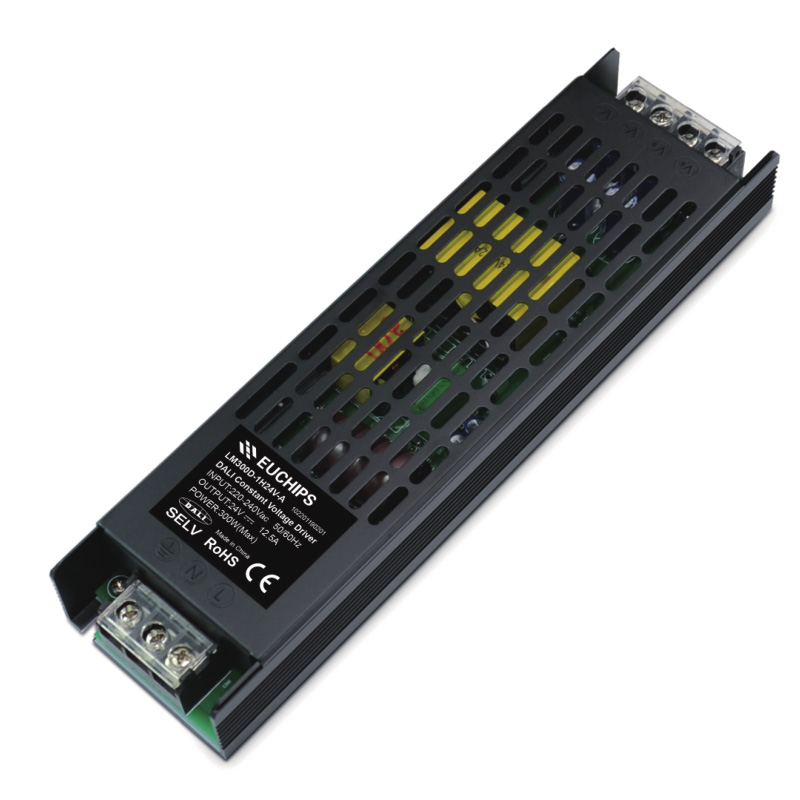

300W 24VDC DALI CV Driver LM300D-1H24V-A
300W 24VDC DALI CV Driver LM300D-1H24V-A
LM300D-1H24V-A is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,provides dimming function DALI and Touch DIM to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,12.5A Max
· Meet DALI protocol IEC 62386
· Dimming effect smooth, no flicker
· Overload protection, overcurrent protection, short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LM300D-1H24V-A | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 1.5Amax@230VAC | |
| Power Factor | >0.98@230VAC, Full load | |
| Efficiency | >92%@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Inrush Current | Cold start , 100A@230VAC 150us | |
| Output | Voltage | 24VDC |
| Voltage Accuracy | ±5% | |
| Output current | 12.5A Max. | |
| Output power range | 0W~300W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| PWM dimming frequency | 20KHz | |
| Line Regulation | ±0.5% @Full load | |
| Load Regulation | ±2% @Full load | |
| Turn on Time | 0.5s, at230Vac(When the lights start to turn on) | |
| Protection | Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overload | Overload protection (≥120% rated power), Auto-recovery after Fault Clearance | |
| Function | Dimming method | DALI |
| Dimming Range | 0.1%-100% | |
| Dimming curve | logarithm | |
| Flicker | No strobe | |
| Safety & EMC | Surge | L-N:2.5KV LN-G 2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
|
Safety standard |
CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
|
EMC Eission |
CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | RoHS 2.0 (EU) 2015/863 |
| tc | 85℃ | |
| material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 220*59*31mm（L*W*H） | |
| Packing(weight) | Net weight:410g±5%/PCS; 30PCS/Carton; 12.8kg±5%/Carton;Carton Size: 337*243*250mm(L*W*H) | |
| Noise | In a quiet environment, there is no noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
