30W 600/650/700/750mA*1ch 0/1-10V CC Driver DPE30A-1HMC

Short Description:

Item No.: DPE30A-1HMC
Output Power: 30W

Download Certificates Download Test Reports

Product Detail

Product Tags

30W 600/650/700/750mA*1ch 0/1-10V CC Driver DPE30A-1HMC

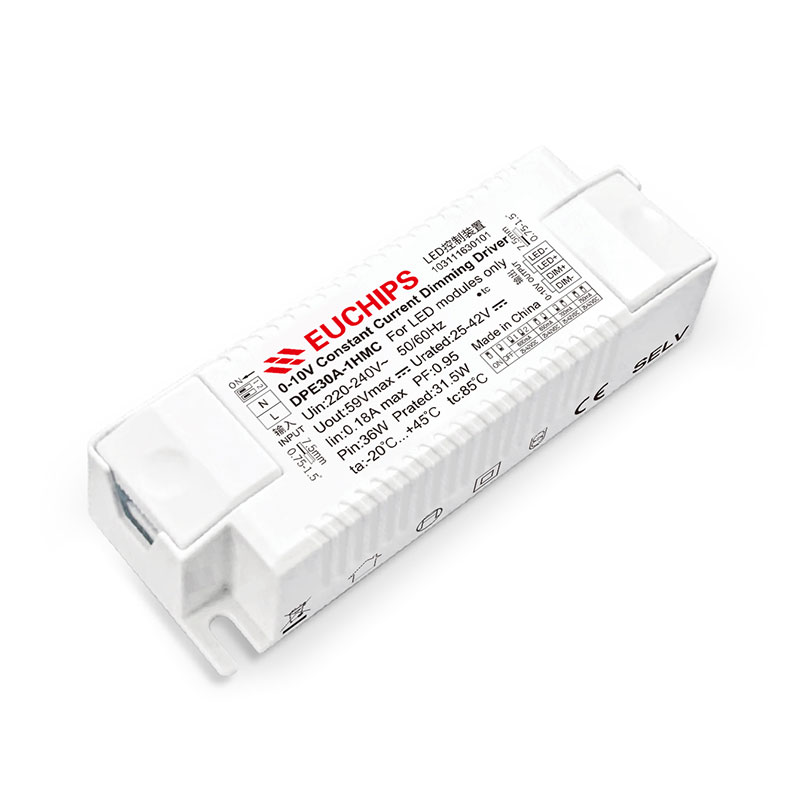

DPE30A-1HMC is a 31.5W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type
and the built-in type can be switched.

Features

· Single-channel constant current output
· Supports 0-10V active signal, with adjustable resistance
· Short circuit, overload, and overvoltage protection, V0 grade flame-retardant shell
· Efficiency up to 88%
· The design of the end cap shell allows for easy disassembly, facilitating installation in confined spaces
· No-load power consumption ≤ 0.5W
· Lifespan of 50,000 hours, with a 5-year warranty
· Protection level IP20, suitable for indoor Class II lighting fixtures

Technical Parameters

Model	DPE30A-1HMC
Input	Input Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.18Amax@230VAC
	Power Factor	>0.95@230VAC, full load
	Efficiency	≥88%@230VAC, full load
	THD	<10%@230VAC, full load
	Standby power	<0.5W
	No load power	<0.5W
	Inrush Current	Cold start, 9.72A@240VAC 108us
Output	Current/Voltage/power	600mA/25-42VDC/25.2W 650mA/25-42VDC/27.3W 700mA/25-42VDC/29.4W 750mA/25-42VDC/31.5W
	Output current accuracy	±5%
	PstLM	≤1
	SVM	≤0.4
	Line Regulation	±3%
	Load Regulation	±1% @ full load
	Turn on delay Time	0.148s, at198Vac(When the light begins to shine) 0.162s, at264Vac(When the light begins to shine)
Dimming	Dimming Type	0-10V
	Dimming Range	1%-100%
	Dimming curve	Linearity
	Flicker	Flicker free
Protections	Short circuit Protection	Hiccup, Auto-Recovery when the fault is removed
	OverVoltage Protection	Hiccup, Auto-Recovery when the fault is removed
	Overload Protection	Protection when load power is ≥130%; output returns to normal after troubleshooting and current decreases
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	EMC Emission	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Immunity	CCC (China) GB/T17743，GB17625.1 BIS (India) IS15885
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC (Korea) K00032 KN61000-3-2 KN61000-3-3
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 UKCA (UK) BS EN61347-1，BS EN61347-2-13，BS EN62384
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃~45℃
	Storage Temp	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	85℃
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	1154128mm(LWH)
	Packing(weight)	Net weight: 91g±5%/PCS; 100PCS/Carton; 9.6kg±5%/Carton; Carton Size: 472218222mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
	Input Wire	0.75. 1.5mm² (Wire outer diameter: Max:7mm, Min3mm)
	Output Wire	0.5. 1.5mm² (Wire outer diameter: Max:7mm, Min2mm)
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
