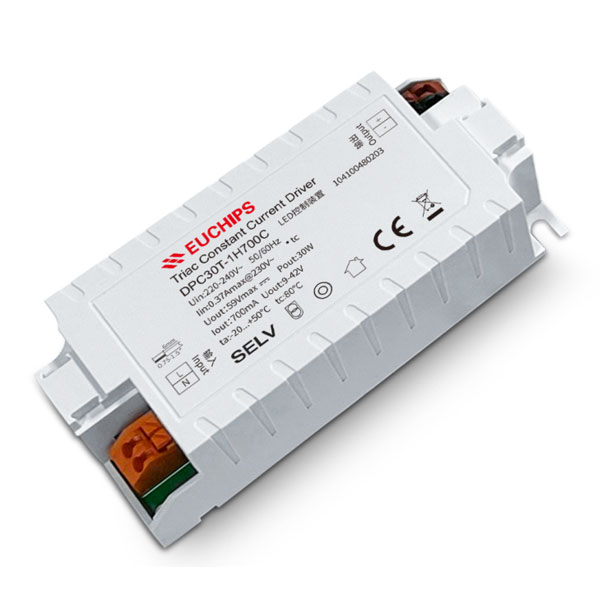

30W 700mA*1ch Phase-cut CC Driver DPC30T-1H700C
30W 700mA CC Phase-cut Driver DPC30T-1H700C
DPC30T-1H700C is a 30W constant current dimming LED driver. Support leading edge phase tangent and trailing edge phase cut dimmer, dimming curve smooth.
Features
· Single channel constant current output
· High voltage input: 220VAC ~ 240VAC
· Efficiency up to 83%
· Built-in active PFC function
· Short circuit protection, load protection, overvoltage protection
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc
Technical Paramaters
|
Model |
DPC30T-1H700C | |
|
Input |
Efficiency | ≥83%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.5@230VAC, Full load | |
| THD | NC | |
| AC Current(max) | 0.37Amax@230VAC | |
| No load Power | <3W | |
| Inrush Current(max) | Cold Start,25A@230VAC 150us | |
| Turn on delay Time | ≤0.5s , at230Vac (When the light begins to shine) | |
|
Output |
Current | 700mA |
| Voltage | 9-42VDC | |
| Power | 30W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| No load output voltage | 59V max | |
|
Protection |
Over Voltage | Current down, troubleshooting output normal |
| Over load | Reduce current Hiccup, troubleshooting output normal | |
| Short circuit | Close the output and recover after troubleshooting | |
|
Function |
Dimming type | Triac |
| Dimming range | 1%-100% | |
| Dimming curve | logarithm | |
| Flicker | No strobe | |
| Safety& EMC | Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃ ~50℃ |
| Storage Temp., Humidity | -40℃ ~85℃ 20-90%RH | |
| tc | 80℃ | |
| Material | Plastic case | |
| IP Rating | IP20 | |
| Lifetime | 30,000 @tc:50℃ | |
| Warranty Condition | 3 year | |
| Switch Cycle | >25,000 times | |
| Package size (weight) | Net weight: 90g±5%/PCS; 50PCS/Carton; 5kg±5%/carton; Carton size: —*—*—mm(L*W*H)） | |
| Dimension | 97*43.5*30mm(L*W*H) | |
