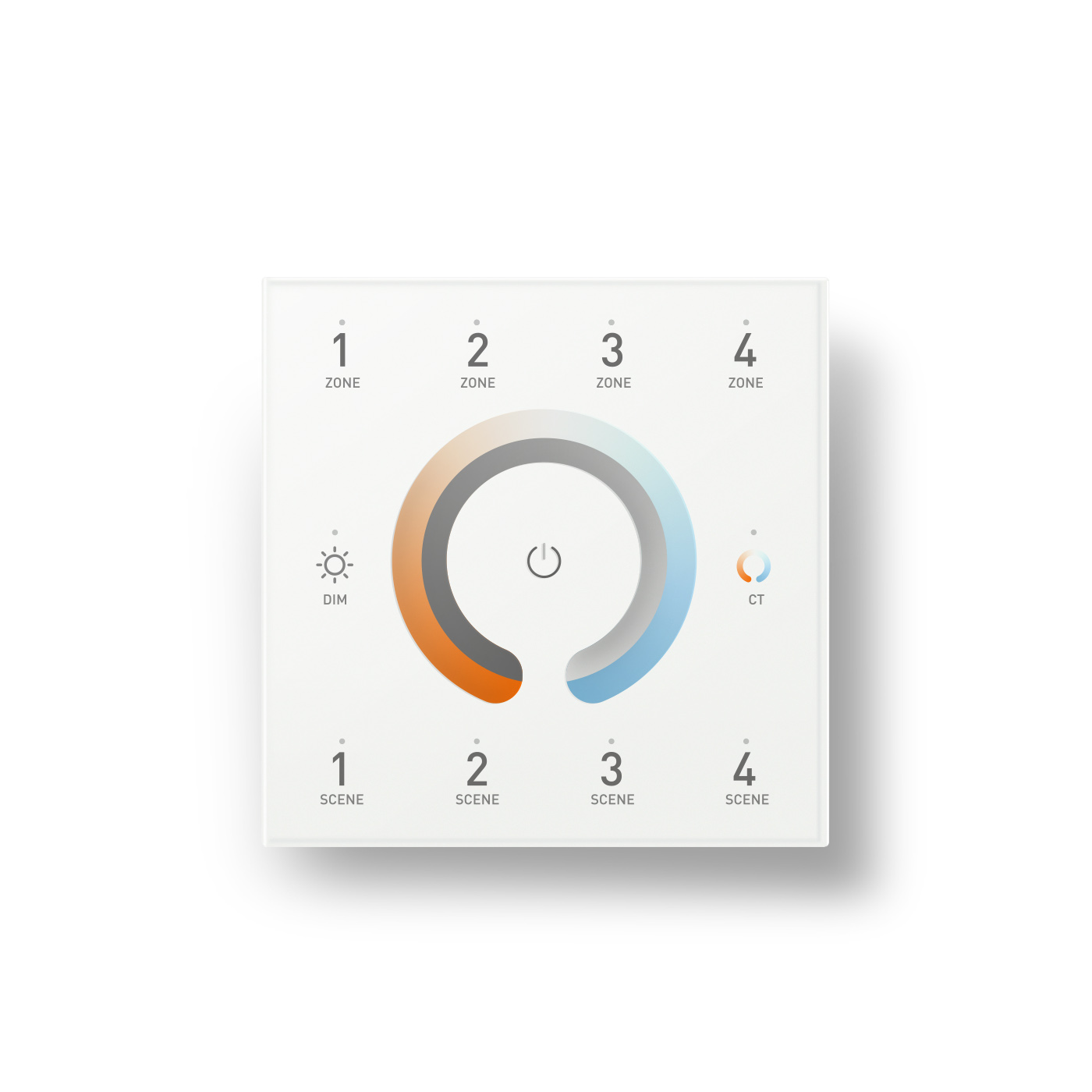

DT8 DALI Tunable White Scene Panel DALI-P03-A

DT8 DALI Tunable White Scene Panel DALI-P03-A
The DALI-P03-A is a DALI Touch glass control panel that is feature-packed, easy to use, and touch-sensitive. It is mainly used to control controllers or power supplies that comply with the DALI standard protocol, to achieve area and scene control, and to meet customers’ personalized dimming requirements. It can be widely used in schools, retail, hospitals and offices.

Product Features
· Meet DALI protocol IEC 62386 DT8
· Power supply via DALI bus
· Support broadcast control.
· Adjust the brightness and color
temperature of the lamp
· Save and call up to 4 scenes
· Can control 4 groups
· Group serial number can be freely set by DIP switch
· Use blue led button indicator, easy to use.
· Can support many standards electrical wall box

Technical Parameters

Model: DALI-P03-A
Input Voltage: 9.5-22.5VDC
Input Current: 8mA
Output signal: DALI signal(Group/Scene/broadcast)
Indicator lights: 11
Scenes: 4
Group: 4
Dimension(mm): 86×86×10
N.W.:165g
Working temp: -10℃~45℃
Relative humidity: 20~90%RH
