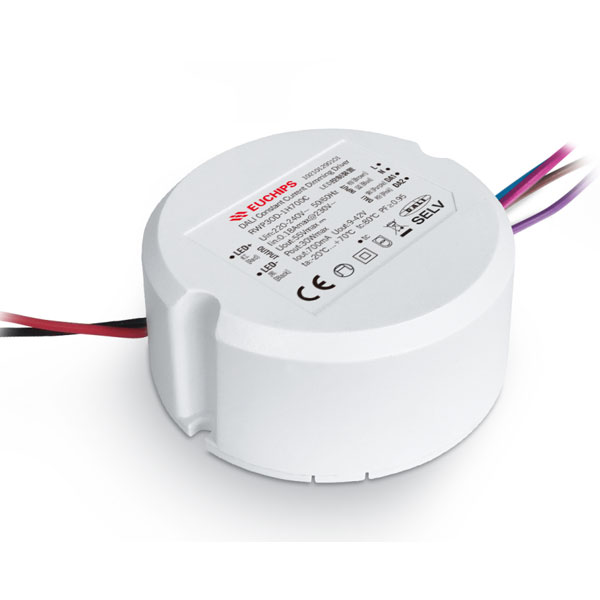

30W 700mA*1ch DALI CC Driver RWP30D-1H700C
30W 700mA*1ch DALI Constant Current Driver RWP30D-1H700C
RWP30D-1H700C is a 30W AC/DC constant current mode output LED driver, complies with
DALI standard protocol IEC 62386. RWP30D-1H700C can be connected to DALI main
controller achieve a smooth dimming effect.
Features
1. Meet DALI Protocol IEC 62386-207 Ed2.0
2. Support Touch DIM(Push DIM) function
3. High efficiency up to 87%
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over Voltage
7. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | RWP30D-1H700C | |
| Input | Efficiency | ≥87%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.18Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start,20A@230VAC 100us | |
| Output | Current / Voltage / Power | 700mA/9-42VDC/30W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 55V Max | |
| Turn on delay Time | <0.75s, at230Vac | |
| Fuction | Dimming Type | DALI |
| Dimming Range | 0.3%-100% | |
| Protection | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Load | The output current decreases and, recovers automatically when the load is reduced. | |
| Over Voltage | The output current decreases and, recovers automatically when the load is reduced. | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC62386-207 Ed2.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~70℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 Years | |
| Switch Cycle | >150,00 tims | |
| Packing(weight) | Net weight: –/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) | |
| Dimension | φ80*H30mm（φL*W*H） | |
