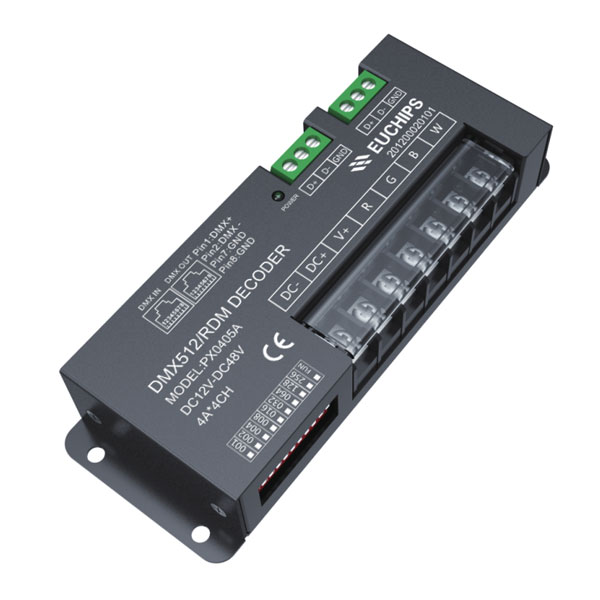

4A*4ch CV DMX RGBW Decoder PX0405A

Short Description:

  • Item No.: PX0405A

Product Detail

Product Tags

4A*4ch CV DMX Decoder PX0405A


Welcome to the PX series DMX512/ RDM decoding drive. The PX series adopts advanced microcomputer control technology, and converts the widely adopted DMX-512/1990 and RDM/2009 standard digital control signals into analog control signals. 1-4 output channels can be selected, and 256-level control levels can be implemented for each channel. The invention can be used for the connection of the computer digital output light-adjusting table and the analog silicon box, and the use occa sions of the control of the LED lamp for the building and the lamp decoration.


1. The product has 4 channels output. The maximum 4A current per channel and the total power up to 768W.

2. Set the address with the dial switch, and the operation is simple and quick.

3. Green terminal and RJ45 two DMX interfaces are provided to improve signal transmission efficiency and anti-interference capability.

4. With the RDM remote management protocol, the RDM master can browse and set the parameters, the DMX address modification, the device identifica- tion and other operations through the RDM master control.

5. It has the functions of short-circuit, over-temperature, overload automatic protection and recovery.

6. has over-voltage feedback, over-temperature feedback, current monitoring function.

7. requency 2 KHZ、 no stroboscopic.

8. Fast self-test function.

Technical Parameter

Product Name Constant Voltage LED RGBW DMX Decoder
Item PX0405A
Input signal DMX512/ RDM
DMX interface RJ45, green terminal
Input voltage 12-48VDC
output 4A *4 CH.
Output power 192W (12V) / 768W (48V)
Working temperature -20~50℃
product size 140*50*26mm
packing measurement 145*56*32mm
Weight (net weight) 240g
Warranty Condition 5 Years
