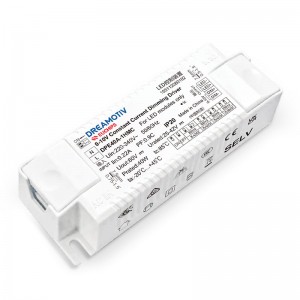

40W 800~1050mA 0/1-10V CC Driver DPE40A-1HMC
40W 800~1050mA 0/1-10V CC Driver DPE40A-1HMC

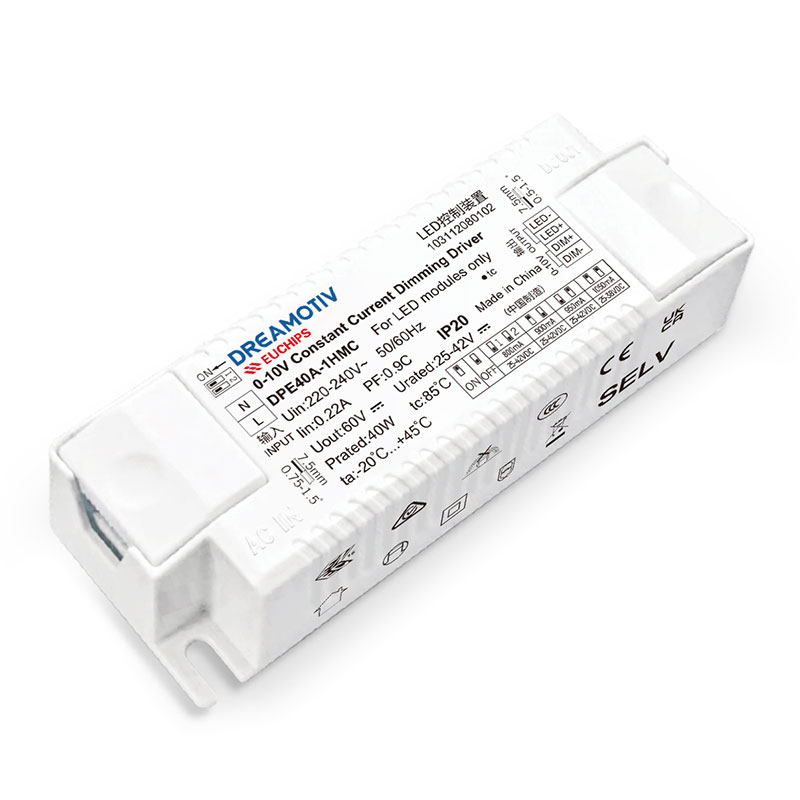

DPE40A-1HMC is a 40W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type and the built-in type can be switched.
Features
· Single-channel constant current output
· Supports 0-10V active signal, with adjustable resistance
· Short circuit, overload, and overcurrent protection, V0 grade flame-retardant shell
· Efficiency up to 88%
· The design of the end cap shell allows for easy disassembly, facilitating installation in confined spaces
· No-load power consumption ≤ 0.5W
· Lifespan of 50,000 hours, with a 5-year warranty
· Protection level IP20, suitable for indoor Class I II lighting fixtures
Technical Parameters
|
Model |
DPE40A-1HMC | |
|
Input |
Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.22Amax@230VAC | |
| Power Factor | 0.9C@230VAC, full load | |
| Efficiency | ≥88%@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Inrush Current | Cold start, 9.84A@230VAC 150us | |
|
Output |
Current/Voltage/power | 800mA/25-42VDC/33.6W 900mA/25-42VDC/34.02W 950mA/25-42VDC/39.9W 1050mA/25-38VDC/39.9W |
| Output current accuracy | ±5% | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Line Regulation | ±1% @ full load | |
| Load Regulation | ±0.5% @ full load | |
| Turn on delay Time | 0.130s, @198Vac(When the light begins to shine) 0.131s, @264Vac(When the light begins to shine) | |
| Protection | Dimming Type | 0-10V |
| Dimming Range | 1%-100% | |
| Dimming curve | Linearity | |
| Flicker | Flicker free | |
| Protection | Short circuit Protection | Hiccup, Auto-Recovery when the fault is removed |
| Overcurrent protection | Hiccup, Auto-Recovery when the fault is removed | |
| Overload Protection | Protection when load power is ≥130%; output returns to normal after troubleshooting and current decreases | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp | -20℃~45℃ |
| Storage Temp | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | Comply with 2011/65/EU |
| tc | 85℃ for safety & life | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc: 85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 115*41*28mm(L*W*H) | |
| Packing(weight) | Net weight: 94g±5%/PCS; 100PCS/Carton; 9.9kg±5%/Carton; Carton Size: 472*218*222mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
