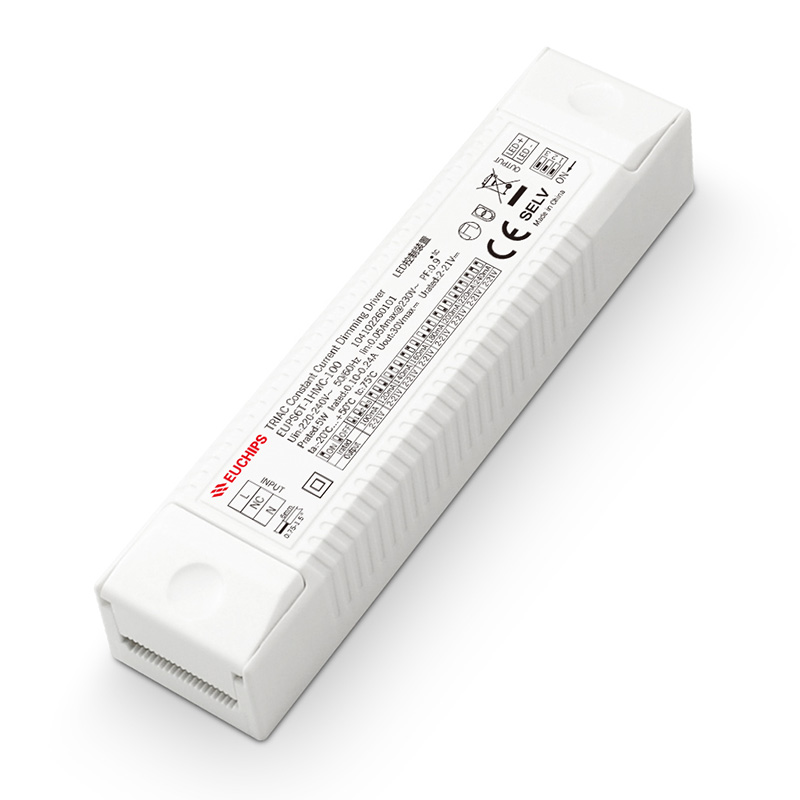

6W 100~240mA*1ch Phase-cut CC Driver EUPS6T-1HMC-100
6W 100~240mA*1ch Phase-cut CC Driver EUPS6T-1HMC-100
Features
· Single channel constant current output, multi-level current optional
· Support Leading edge (Phase-Cut) and Trailing edge (ELV)
· Short circuit, overload, overvoltage, V0 flame-retardant housing
· High voltage input: 220VAC ~ 240VAC
· Dimming range 1%-100% dimming, smooth dimming without step sense and stroboscopic effect
· Built-in PFC chip to improve energy efficiency and reduce pollution
· Life of 50,000 hours, 5-year warranty
· Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | EUPS6T-1HMC-100 | ||
| Input | Input Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | ||
| Input Current | 0.05Amax@230VAC | ||
| Power Factor | ≥0.9@230VAC, Full load | ||
| Efficiency | ≥75%@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Standby power | ≤1.5W | ||
| No-load power | ≤1.5W | ||
| Inrush Current | Cold start,4A@230V 16.8us | ||
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | ||
| Output | Output Voltage | 100mA/2-21VDC/2.1W 120mA/2-21VDC/2.52W 140mA/2-21VDC/2.94W 160mA/2-21VDC/3.36W
180mA/2-21VDC/3.78W 200mA/2-21VDC/4.2W 220mA/2-21VDC/4.62W 240mA/2-21VDC/5.04W |
|
| Output Current | |||
| Output Power | |||
| Current Accuracy | ±5% (Accuracy below 200mA ±7%) | ||
| Ripple current | ±3% | ||
| Output Voltage Range | 2-21VDC | ||
| Channel | 1 | ||
| Power | 5W | ||
| No load output voltage | 30VDC max | ||
| Function | Dimming Type | TRIAC | |
| Dimming Range | 1%-100% Dimming to OFF | ||
| Dimming Curve | Logarithm | ||
| Flicker free | Flicker free | ||
| Protection | Short circuit | Short circuit No output, troubleshooting output normal | |
| Over load | Reduce current burp protection, troubleshoot normal output | ||
| Over Voltage | Reduce current burp protection, troubleshoot normal output | ||
| Safety& EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/<5mA | ||
| Safety Standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | ||
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | |||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | |||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | ||
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Insulation Resisance | 5MΩ | ||
| Environment | Working Temp. | -20℃~50℃ | |
| Storage Temp. | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
| Others | tc | 75℃ | |
| material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 125*29.6*22.6mm (L*W*H) | ||
| Noise | In a quiet environment, no noise beyond 30-50cm | ||
| Packing(weight) | Net weight: 65g±5%/PCS; 120PCS/Carton; 8.3kg±5%/Carton; Carton Size:Carton Size:505*237*199mm(L*W*H) | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
