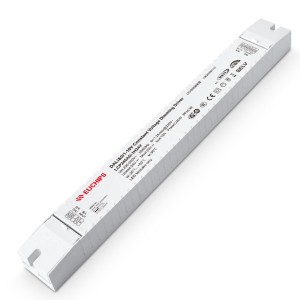

75W 24VDC DALI CV Drivers LCP75D-1H24V
75W 24VDC DALI CV Drivers LCP75D-1H24V
Features
· Single channel constant voltage output, Maximum output current 3.12A
· Following the DALI protocol standard IEC62386，DALI2.0
· Short circuit, overload, overcurrent protection, V0 level flame-retardant shell
· Dimming range 0.1% -100% dimming, smooth dimming, flicker free
· Lifespan of 50000 hours, 5-year warranty
· Standby and idle power consumption ≤ 0.5W, in compliance with EU ERP energy
efficiency standards
· Customizable dimming curve
· Long strip design for easy installation in narrow spaces
· Built in PFC chip to improve energy efficiency and reduce pollution to the power grid
· Dimming：DALI2.0,Push DIM
· Protection level IP20, suitable for indoor Class ⅠⅡⅢ lighting fixtures
Technical Parameters
| Model | LCP75D-1H24V | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.42Amax@230VAC | |
| Power Factor | 0.98@230VAC, Full load | |
| Efficiency | 89%@230VAC, Full load | |
| THD | 10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current | Cold start,25A@230V 510us | |
| Output | Output Voltage | 24VDC |
| Voltage Accuracy | ±5% | |
| Output Current | 3.12A Max. | |
| Current Accuracy | ±5% | |
| Output Power | 75W Max. | |
| Output Power Range | 0W~75W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| PWM Dimming frequency | 20KHz | |
| Line Regulation | ±1% @Full load | |
| Load Regulation | ±0.5% @Full load | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI2.0, Push DIM |
| Dimming Range | 0.1%-100% Dimming to OFF | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Protection | Short circuit | Hiccup, recovers after fault condition is removed |
| Over Current | Hiccup, recovers after fault condition is removed | |
| Over load | Load power ≥ 130% protection; Current drops, troubleshooting output is normal | |
| Over Voltage | / | |
| Over temperature | / | |
| Safety& EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 75℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 295*40*32mm (L*W*H) | |
| Packing(weight) | Net weight: 265g±5%/PCS; 50PCS/Carton;13.25kg±5%/Carton; Carton Size: 464*305*189mm(L*W*H) | |
| Noise | DALI & 0-10V：In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
