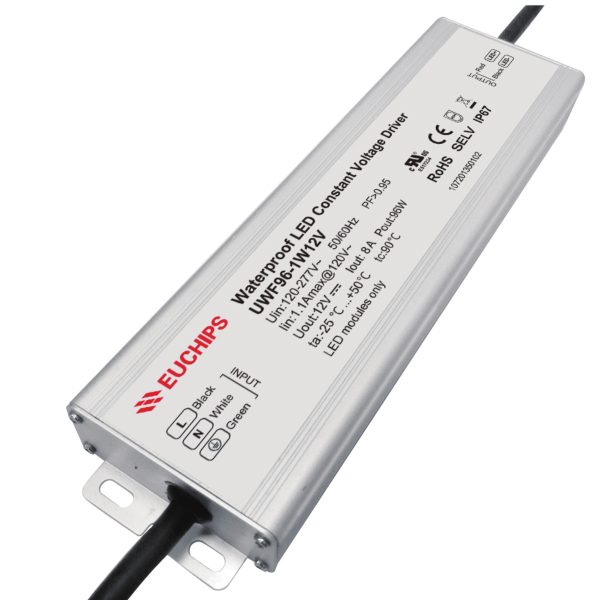

96W 12VDC Non-dimmable Waterproof CV Driver UWF96-1W12V
96W 12VDC Non-dimmable Waterproof CV Driver UWF96-1W12V
Features
·Width voltage input,full power output
·Design of metal shell, improving heat dissipation performance
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with CE/UL/SELV
·Protection grades is as high as IP67
·5 years warranty
Technical Parameters
| Model | UWF96-1W12V | |
| Input | Efficiency | 86%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| Standby power | <0.5W | |
| Current | 1.1Amax@120VAC | |
| Inrush Current | Cold start 50A@230VAC | |
| Output | Current/Voltage/Power | 8A/12VDC/96W |
| Voltage Tolerance | ±4% | |
| Channel | 1 | |
| Start Delay | <2s, at 230Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed. |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically. | |
| Over Load | <10.8A auto recovery when failure is removed. | |
| Safety | Surge | L-N: 2kV |
| Withstand Voltage | I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12 ; EAC TC004,UL60950-1,TUV EN60350-1; ,J61347-1,J613447-2-13 GB19510.1,GB19510.14,UL879 | |
|
Others |
Working Temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 650g±5%/PCS; 30PCS/Carton; 20kg±5%/Carton; Carton Size: 300*256*296mm(L*W*H) | |
| Dimension | 220*61*25mm(L*W*H) | |
