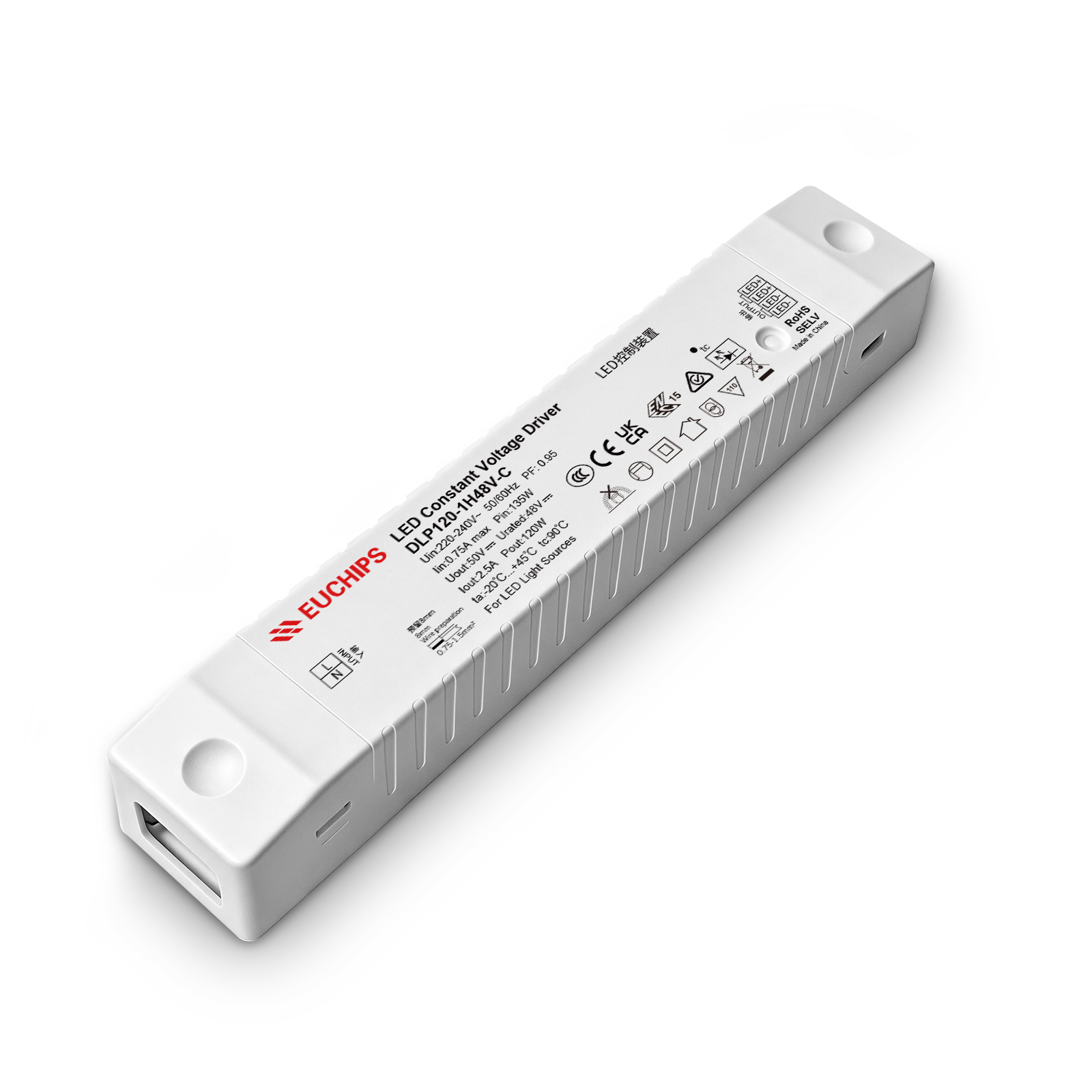

120W 48VDC Non-dimmable CV Driver DLP120-1H48V-C

Short Description:

Item No.: DLP120-1H48V-C
Output Power: 120W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

Features

Single-channel constant voltage output
Short circuit, overcurrent, overload, overtemperature protection, V0 flame-retardant housing
Removable end cover design for easy installation in narrow spaces
50,000-hour lifespan, 5-year warranty
100% full load burn-in test, efficiency up to 92%
IP20 protection rating, suitable for indoor Class II luminaires
Isolated, flicker-free

Technical Parameters

Model	DLP120-1H48V-C
Input	Rated Voltage Range	220VAC-240VAC
	Rated Voltage	198VAC-264VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.75Amax@198VAC, 0.60Amax@230VAC, 0.5Amax@264VAC
	Power Factor	0.96@220-240VAC, Full load; 90%@220-240VAC, half load.
	Efficiency	92%@230VAC, Full load; 91%@230VAC, half load.
	THD(full load)	<10%@230VAC, Full load; <15%@230VAC, half load.
	Leakage current	≤0.7mA/240V
	No load power	<0.5W
	Inrush Current	Cold start 50A@230VAC 2.28us,
Output	Output Voltage	48VDC
	Output Voltage Tolerance	±3%
	Output Current	2.5A
	Output Power Range	120W
	Strobe (depth of fluctuation)	IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard（IEEE Std 1789-2015）
	Line regulation	±1% @Full load
	Load regulation	±3% @Full load
	Turn on delay Time	500ms@230VAC
	Ripple and Noise	480mVp-p@230VAC
Protection	Short circuit	Hiccup protection, Auto-recovery after Fault Clearance
	Overcurrent	Hiccup protection, Auto-recovery after Fault Clearance
	Overload	Overload protection at 130%-150% load; hiccup mode, output returns to normal after fault cleared.
	Overvoltage	Hiccup protection, Auto-recovery after Fault Clearance
	Overtemperature	Hiccup protection, Auto-recovery after Fault Clearance
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union)EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃…45℃
	Storage Temp	-40℃…85℃
	Storage Humidity	20-90%RH (No condensation)
