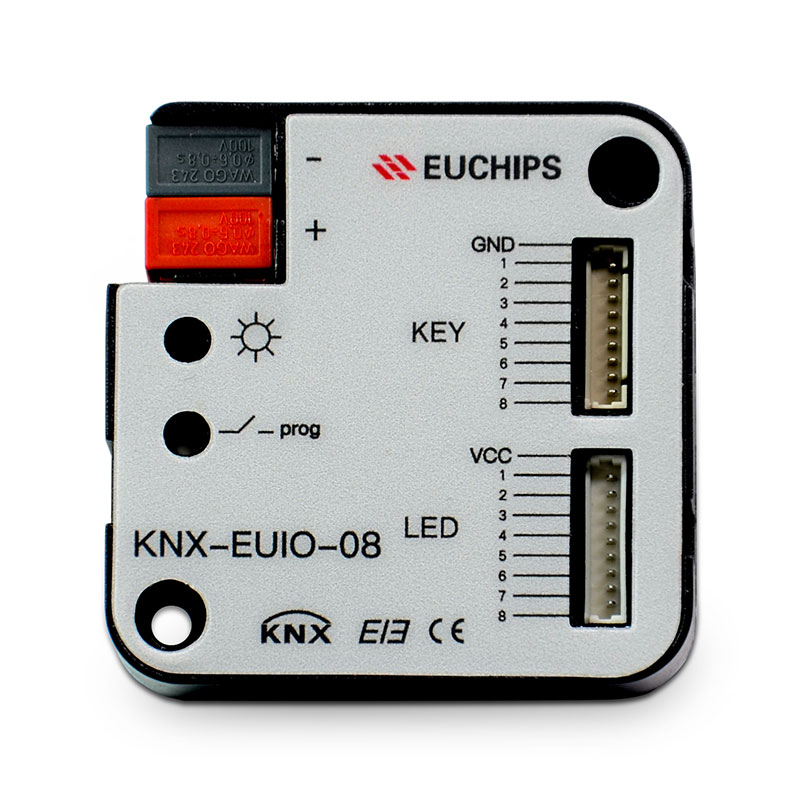

8-way Universal Interface Module KNX-EUIO-08
8-way Universal Interface Module KNX-EUIO-08
Features
· It can be used for turning on and off lighting, opening and closing curtains, raising and lowering projection screens, etc. It has the functions of long press, short press and reversing
· It can control the dimming equipment and has the function output of relative dimming and absolute dimming
· Interchangeable dimming and curtains, fixed value sending function
· It can perform 8-bit scene control and call the preset scene functions
· It has an LED indication function and multiple display states, such as: always on, always off, and flashing
· It features LED interlock grouping and LED brightness adjustment functions
· The status LED has the functions of brightness wake-up and delayed off. The wake-up conditions include pressing a key and triggering an object, etc
· I/O dry contact wiring communication distance: less than 10m
Technical Parameters
| Product model | KNX-EUIO-08 |
| Bus voltage | 21-30VDC |
| Bus current | ≤12mA |
| Working power | <360mW |
| Input channel | 8 dry contact points |
| LED output current | 1mA |
| LED channel | Route 8, common positive connection mode |
| Shell material | PC |
| Size | 46mm x 46mm 12mm |
| Weight | 18G |
| Installation method | Inside a 60mm switch box or an 86-inch bottom box |
| Working temperature | -5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
