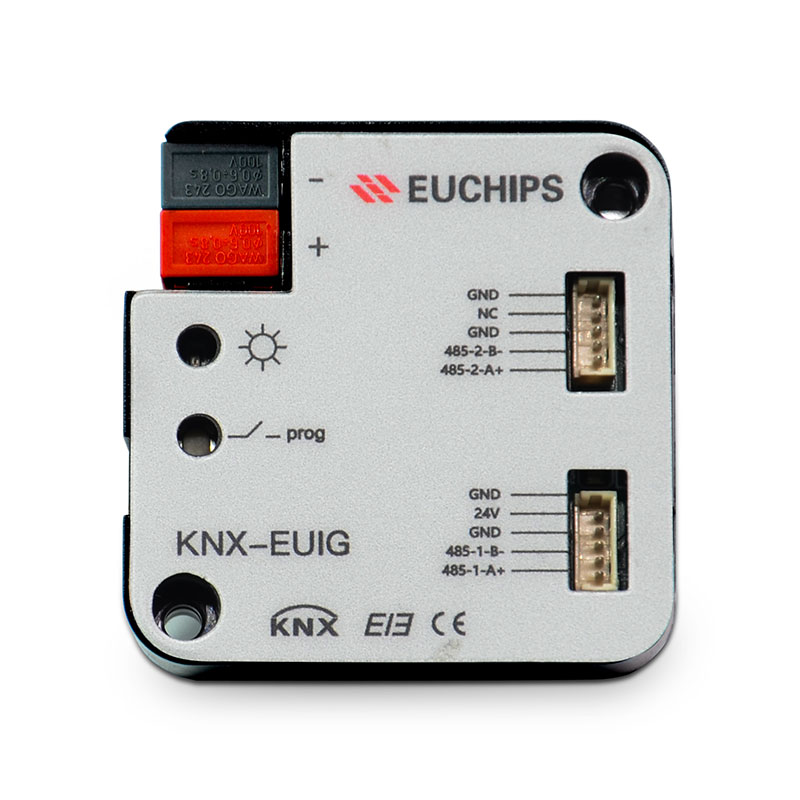

Curtain Gateway KNX-EUIG
Curtain Gateway KNX-EUIG
Features
The KNX-485 curtain gateway can be used to control the 485 curtain motor for KNX devices
· There are two channels, and each channel can control up to 10 curtain motors at most. A total of 20 curtain motor positions can be allocated
· It supports scene functions. Each curtain motor has 12 scene numbers, meaning there are 12 scenes available for allocation
· It can perform 8-bit scene control and call the preset scene functions
· It can perform functions such as position control, direction control and setting travel points
· Supported brands: Duya, Vastar, Bingshen
Technical Parameters
| Product model | KNX-EUIG |
| Bus voltage | 21-30VDC, powered on the KNX bus |
| Bus current | ≤12mA |
| Bus power | <360mW |
| Auxiliary voltage | 24V |
| Output channel | 2channel |
| Shell material | PC |
| Size | 46mm x 46mm 12mm |
| Weight | 18G |
| Installation method | Put it in the bottom box of 86 |
| Working temperature | -5°C- 45°C |
| Storage temperature | 5°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
