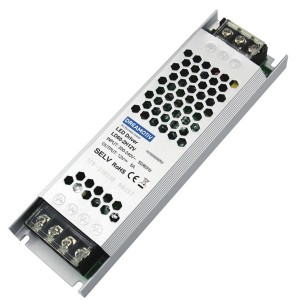

  • 60W 12VDC 2ch Non-dimmable CV Driver LD60-2H12V

    60W 12VDC 2ch Non-dimmable CV Driver LD60-2H12V

    60W 12VDC 2ch Non-dimmable CV Driver LD60-2H12V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 84% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD60-2H12V   Input Efficiency 84%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Current Max 0.6A @ 230Vac Inrush Current Less than 50A/230Vac, cold start Leakage Current <...

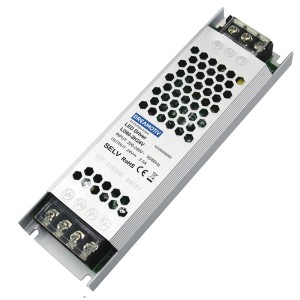

  • 60W 24VDC 2ch Non-dimmable CV Driver LD60-2H24V

    60W 24VDC 2ch Non-dimmable CV Driver LD60-2H24V

    60W 24VDC 2ch Non-dimmable CV Driver LD60-2H24V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD60-2H24V       Input Efficiency 86%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Current Max 0.6A @ 230Vac Inrush Current Less than 50A/230Vac, cold start Leaka...

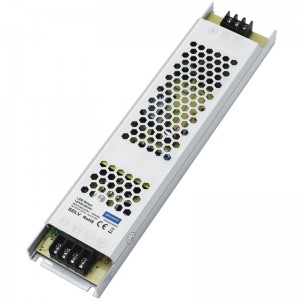

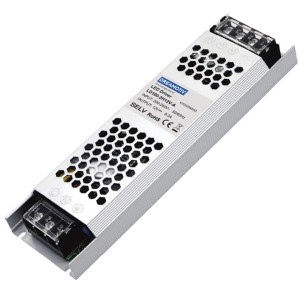

  • 100W 12VDC 2ch Non-dimmable CV Driver LD100-2H12V-A

    100W 12VDC 2ch Non-dimmable CV Driver LD100-2H12V-A

    100W 12VDC 2ch Non-dimmable CV Driver LD100-2H12V-A Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 85% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD100-2H12V-A     Input Efficiency 85%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Current Max 1.2A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Lea...

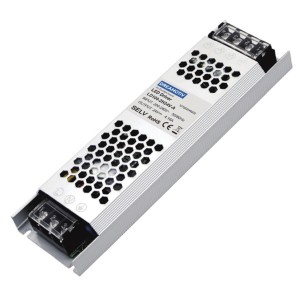

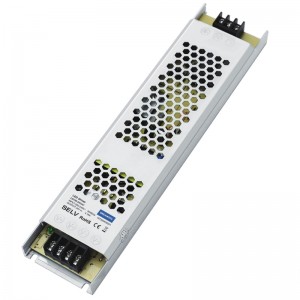

  • 100W 24VDC 2ch Non-dimmable CV Driver LD100-2H24V-A

    100W 24VDC 2ch Non-dimmable CV Driver LD100-2H24V-A

    100W 24VDC 2ch Non-dimmable CV Driver LD100-2H24V-A Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD100-2H24V-A     Input Efficiency 86%@220VAC, Full load Voltage 200-240VAC Frequency 50Hz Current Max 1.0A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/240Vac       &nbs...

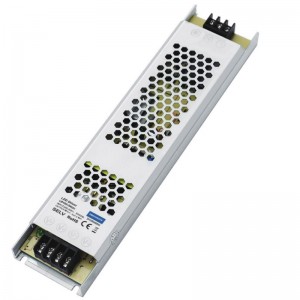

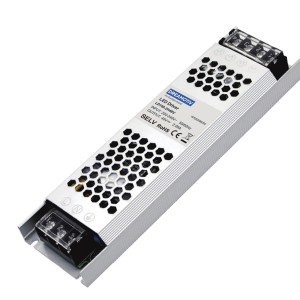

  • 100W 48VDC 2ch Non-dimmable CV Driver LD100-2H48V

    100W 48VDC 2ch Non-dimmable CV Driver LD100-2H48V

    100W 48VDC 2ch LED Driver LD100-2H48V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Paramters Model LD100-2H48V   Input Efficiency 86%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Current Max ≤1.2A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/2...

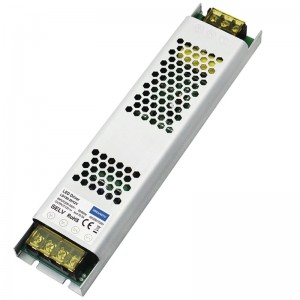

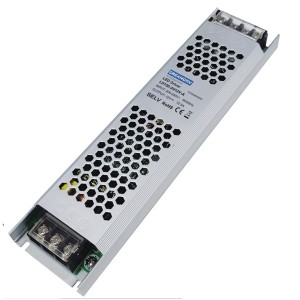

  • 150W 12VDC 2ch Non-dimmable CV Driver LD150-2H12V-A

    150W 12VDC 2ch Non-dimmable CV Driver LD150-2H12V-A

    150W 12VDC 2ch Non-dimmable CV Driver LD150-2H12V-A Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 85% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD150-2H12V-A Input Efficiency 85%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Maximum Input Current ≤ 1.7A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage...

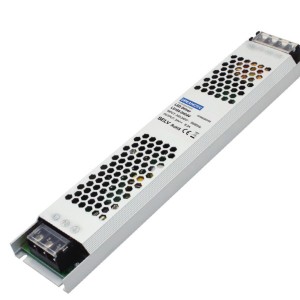

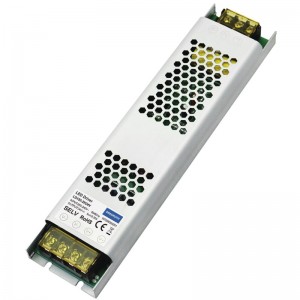

  • 150W 24VDC 2ch Non-dimmable CV Driver LD150-2H24V-A

    150W 24VDC 2ch Non-dimmable CV Driver LD150-2H24V-A

    150W 24VDC 2ch Non-dimmable CV Driver LD150-2H24V-A Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD150-2H24V-A   Input Efficiency 86%@220VAC, Full load Voltage 200-240VAC Frequency 50Hz Current Max 2.0A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/240Vac         Outp...

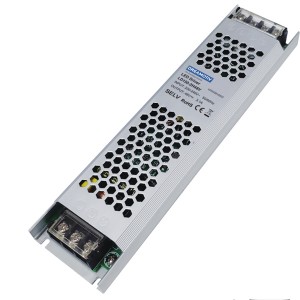

  • 150W 48VDC 2ch Non-dimmable CV Driver LD150-2H48V

    150W 48VDC 2ch Non-dimmable CV Driver LD150-2H48V

    150W 48VDC 2ch Non-dimmable CV Driver LD150-2H48V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Va Technical Parameters Model LD150-2H48V       Input Efficiency 86%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Maximum Input Current ≤ 1.7A @ 230Vac Inrush Current Less than 65A/230Vac, col...

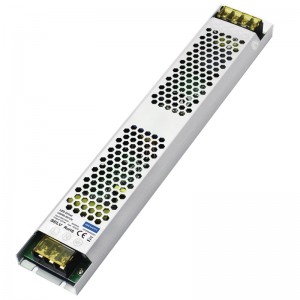

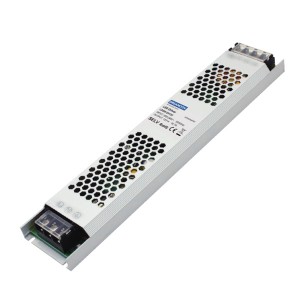

  • 200W 12VDC 2ch Non-dimmable CV Driver LD200-2H12V

    200W 12VDC 2ch Non-dimmable CV Driver LD200-2H12V

    200W 12VDC 2ch Non-dimmable CV Driver LD200-2H12V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 85% ·High reliability ·Wide input Voltage 180~264Vac Technical Paramters Model LD200-2H12V     Input Efficiency 85%@220VAC, Full load Voltage 200-240VAC Frequency 50Hz Current Max 2.0A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/240Vac         Ou...

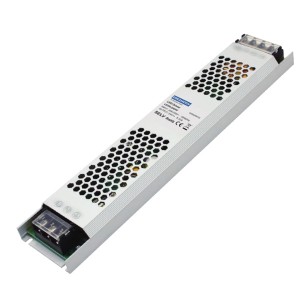

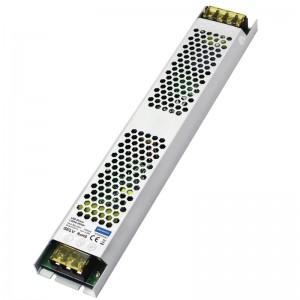

  • 200W 24VDC 2ch Non-dimmable CV Driver LD200-2H24V

    200W 24VDC 2ch Non-dimmable CV Driver LD200-2H24V

    200W 24VDC 2ch Non-dimmable CV Driver LD200-2H24V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Paramters Model LD200-2H24V Input Efficiency 86%@220VAC, Full load Voltage 200-240VAC Frequency 50Hz Current Max 2.0A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/240Vac           Output Cu...

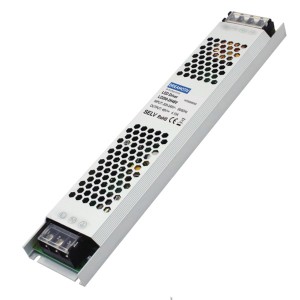

  • 200W 48VDC 2ch Non-dimmable CV Driver LD200-2H48V

    200W 48VDC 2ch Non-dimmable CV Driver LD200-2H48V

    200W 48VDC 2ch Non-dimmable CV Driver LD200-2H48V  Product Feature ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 86% ·High reliability ·Wide input Voltage 180~264Vac Technical Parameters Model LD200-2H48V     Input Efficiency 86%@220VAC, Full load Typical Input Voltage 200-240VAC Maximum Input Voltage Range 180~264Vac Frequency 50Hz Maximum Input Current ≤ 2.0A @ 230Vac Inrush Current Less than 50A/230Vac, co...

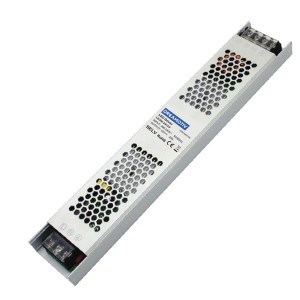

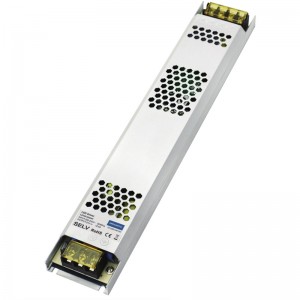

  • 300W 12VDC 2ch Non-dimmable CV Driver LD300-2H12V

    300W 12VDC 2ch Non-dimmable CV Driver LD300-2H12V

    300W 12VDC 2ch Non-dimmable CV Driver LD300-2H12V Features ·Aluminium Casing ·Ultra-low start up temp -30°C ·Ultra-light and easy to install ·High efficiency up to 85% ·High reliability ·Wide input Voltage 180~264Vac Technical Paramters Model LD300-2H12V Input Efficiency 85%@220VAC, Full load Voltage 200-240VAC Frequency 50Hz Current Max 3.0A @ 230Vac Inrush Current Less than 65A/230Vac, cold start Leakage Current <0.75mA/240Vac       Output Current 25A Vo...
