  • 24W 12VDC Non-Dimmable CV LED Driver DPC24-1H12V

    24W 12VDC Non-Dimmable CV LED Driver DPC24-1H12V

     24W 12VDC Non-Dimmable CV LED Driver DPC24-1H12V DPC24-1H12V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 2A · Input voltage: 220VAC~240VAC · High efficiency up to 85% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% · Smal...
  • 24W 24VDC Non-Dimmable CV LED Driver DPC24-1H24V

    24W 24VDC Non-Dimmable CV LED Driver DPC24-1H24V

    24W 24VDC Non-Dimmable CV LED Driver DPC24-1H24V DPC24-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 1A · Input voltage: 220VAC~240VAC · High efficiency up to 86% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% · Small...
  • 30W 12VDC Non-Dimmable CV LED Driver DPC30-1H12V

    30W 12VDC Non-Dimmable CV LED Driver DPC30-1H12V

    30W 12VDC Non-Dimmable CV LED Driver DPC30-1H12V DPC30-1H12V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 2.5A · Input voltage: 220VAC~240VAC · High efficiency up to 85% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% · Sma...
  • 30W 24VDC Non-Dimmable CV LED Driver DPC30-1H24V

    30W 24VDC Non-Dimmable CV LED Driver DPC30-1H24V

    30W 24VDC Non-Dimmable CV LED Driver DPC30-1H24V DPC30-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 1.25A · High voltage input: 220VAC~240VAC · High efficiency up to 86% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10...
  • 20W 350~500mA Non-Dimmable CC LED Driver SCS20-1HMC

    20W 350~500mA Non-Dimmable CC LED Driver SCS20-1HMC

    20W 350~500mA Non-Dimmable CC LED Driver SCS20-1HMC SCS20-1HMC is a 20W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type and the built-in type can be switched. Features · Single channel constant current output · Short circuit, overload, overvoltage protection, V0 level flame-retardant shell · Efficiency up to 92% · End cover shell disassembly design, easy to install in narr...
  • 40W 12VDC Non-Dimmable CV LED Driver DPC40-1H12V

    40W 12VDC Non-Dimmable CV LED Driver DPC40-1H12V

    40W 12VDC Non-Dimmable CV LED Driver DPC40-1H12V DPC40-1H12V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 3.33A · Input voltage: 220VAC~240VAC · High efficiency up to 85% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% · Sm...
  • 30W 600~750mA Non-Dimmable CC LED Driver SCS30-1HMC

    30W 600~750mA Non-Dimmable CC LED Driver SCS30-1HMC

    30W 600~750mA Non-Dimmable CC LED Driver SCS30-1HMC SCS30-1HMC is a 30W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type and the built-in type can be switched. Features · Single channel constant current output · Short circuit, overload, overvoltage and over-temperature protection, V0 grade flame-retardant housing · Efficiency up to 93% · End cover shell disassembly design, ...
  • 40W 24VDC Non-Dimmable CV LED Driver DPC40-1H24V

    40W 24VDC Non-Dimmable CV LED Driver DPC40-1H24V

    40W 24VDC Non-Dimmable CV LED Driver DPC40-1H24V DPC40-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 1.67A · High voltage input: 220VAC~240VAC · High efficiency up to 86% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10%...
  • 60W 12VDC Non-Dimmable CV LED Driver DPC60-1H12V

    60W 12VDC Non-Dimmable CV LED Driver DPC60-1H12V

    60W 12VDC Non-Dimmable CV LED Driver DPC60-1H12V DPC60-1H12V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 5A · Input voltage: 220VAC~240VAC · High efficiency up to 88% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% · Small...
  • 60W 24VDC Non-Dimmable CV LED Driver DPC60-1H24V

    60W 24VDC Non-Dimmable CV LED Driver DPC60-1H24V

    60W 24VDC Non-Dimmable CV LED Driver DPC60-1H24V DPC60-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use. Features · Single channel constant voltage output, maximum current of 2.5A · High voltage input: 220VAC~240VAC · High efficiency up to 88% · Protection: over load, over current, Over temperature, Short circuit · No load power consumption ≤ 0.5W, THD<10% ...
  • 40W 900~1050mA Non-Dimmable CC LED Driver SCS40-1HMC

    40W 900~1050mA Non-Dimmable CC LED Driver SCS40-1HMC

    40W 400mA Non-Dimmable CC LED Driver SCS40-1HMC SCS40-1HMC is a 40W constant current LED driver, and the output current can be adjusted by dip. The end cover shells on both sides of the shell can be disassembled, and the independent type and the built-in type can be switched. Features · Single channel constant current output · Short circuit, overload, overvoltage and over-temperature protection, V0 grade flame-retardant housing · Efficiency up to 93% · End cover shell disassembly design, easy...

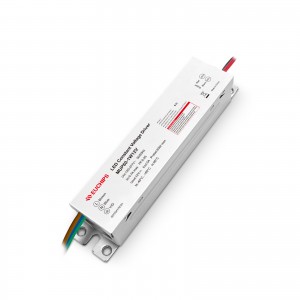

  • 60W 12VDC Non-dimmable CV LED Driver MUP60-1W12V

    60W 12VDC Non-dimmable CV LED Driver MUP60-1W12V

    60W 12VDC Non-dimmable CV LED Driver MUP60-1W12V Features Ambient Temperature: (-40 to +60) ℃ Ripple: ≤120mV (p-p) Certifications: CE + UL compliant Surge Protection:L-N 6KV,L/N-G 6KV Compact Size Over-Temperature Protection (OTP) Technical Parameters Model OWP60-1W12V Input Voltage UL Rated 120-277Vac,CE Rated 220-240Vac Frequency Range(Hz) 50/60Hz Efficiency ≥88%@120VAC, ≥89%@230VAC, ≥90%@277VAC,full load PF ≥0.95@120V-277VAC,full load Current 0.72A max@120VAC, 0.35A max@230V...
