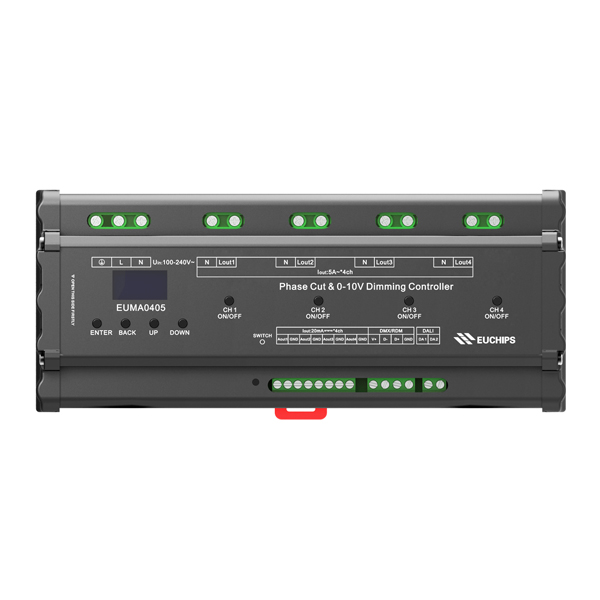

5A*4ch Phase Cut & 0-10V Dimming Controller EUMA0405

Short Description:

  • Item No.: EUMA0405
  • Output Current: 5A*4CH
  • Output Voltage: -
  • Output Power: -
  • Dim Mode: -

Product Detail

Product Tags

5A*4ch Phase Cut & 0-10V Dimming Controller EUMA0405

The product adopts advanced MOS-FET control technology, can accurately realize the phase cut function, and has no requirement for the type or capacity of load. The compatibility is far superior to leading edge controller.
Control mode of EUMA0405 is flexible, which complies with 4 control protocols:
1, support the international widely adopted DMX-512 (1990) /RDM and DALI standard protocol, and can access KNX, Dynalite, Lutron, Crestron, LDS and other intelligent dimming network via gateway.
2, support EU-BUS lighting control protocol developed by EUCHIPS. It can be used with relay switch controller, clock module, panel module, sensor module to achieve the group and scene control through the Euchips9 PC software. This solution is widely used in the family, conference rooms, hotels, schools, and other occasions.
3, support Touchdim, manual control, timing control function (optional).The user can manually turn ON/OFF or dim the brightness.



Model

DALI

DMX/RDM

EU-BUS

Manual control

Timer function

EUMA0405-DDL

Y

Y

Y

Y

N

EUMA0405-DDLT

Y

Y

Y

Y

Y



Features

1. Meets DMX512(1990)/RDM, DALI IEC62386 protocol and EU-BUS protocol developed by EUCHIPS

2. Output 4 channels AC MOSFET phase cut signal and their synchronous DC 0-10V control signal

3. 4 AC MOSFET can work as leading edge (LPC) mode, trailing edge(TPC) mode or switch mode

4. Maximum output current of AC MOSFET is 5A/ch

5. Built-in LCD, the user can operate more conveniently

6. Set fades time of each channel separately, range of 0.1-10s

7. Each circuit is equipped with emergency switch that control full brightness (100%) output function

8. Can save up to 8 events

9. Standard 35 mm din rail, convenient installation

Technical Parameters



Item Parameters
Input voltage 100-240VAC
Input control signal DMX512(1990)/RDM,DALI IEC62386,EU-BUS
Maximum output current of phase cut 5A*4(AC MOSFET, please take 5A*PF as output current limit for each circuit )
Maximum output signal current 20mA*4(for DC0-10V )
The number of events(only for EUMA0405-DDLT) 8
Maximum inrush current limit per channel 100A
Equipment size 222.5*93.4*63.2mm(L*W*H),standard 35mm din rail
Packing size 226*100*68mm(L*W*H)
G.W. 975g
Operational temperature -20-50℃
