12-24VDC DMX Splitter DMX103

Short Description:

  • Item No.: DMX103
  • Input Voltage: 12-24
  • Output Voltage: 12-24
  • Dim Mode: DMX512
  • G.W.: 220
  • Size: 123*59*23.5

Product Detail

Product Tags

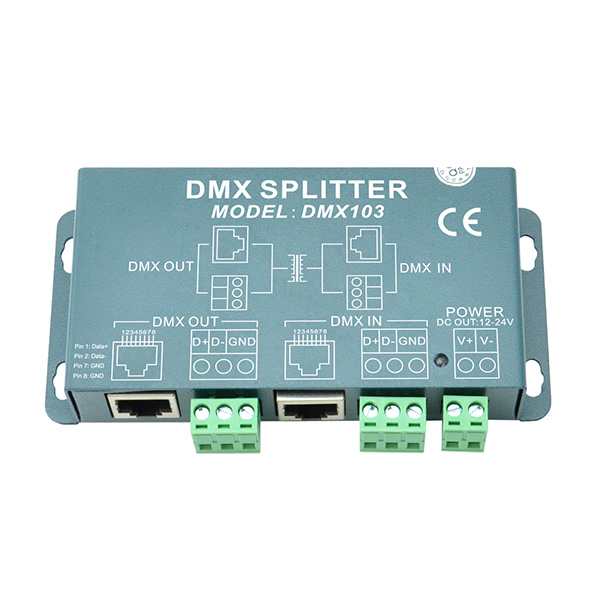

12-24VDC DMX Splitter DMX103


DMX103 is a digital signal splitter. It dedicated to the DMX512 digital lighting controller signal shaping and amplification, and it adopts the high voltage isolation technique in various in-out interfaces. That is to say it doesn*t only apply to be as the processing amplifier while the DMX512 signal attenuation due to the remote data transmission, but also it can be used in which the various in-out interface need to be electric isolated. Since the various interfaces are isolated by each other, which is easy to avoid the control system damage caused by the control wiring, digital dimmer.etc and make the control system work well. And also it made sure the DMX signal is in regular transmission so that the reliability of the whole control system was raised.

Technical Parameter

Product Name 12-24VDC 1 Channel DMX Splitter
Item DMX103
Interface Mode RS-485
Signal Input Socket RJ45 or Connector
Power Supply 12V-24VDC
Product Size 123(L)*59(W)*23.5(H) mm
Pack size 309(L)*256(W)*129(H) mm, 50pcs/11.8kg/carton
G.W. 220g
