12-24VDC DMX Splitter DMX102

Short Description:

  • Item No.: DMX102
  • Input Voltage: 12-24
  • G.W.: 500
  • Size: 151*90*40

Product Detail

Product Tags

12-24VDC DMX Splitter DMX102


DMX102, a special digital signal distribution device use for the DMX512 digital lighting controller and plays the roles in the signal multiplication & the signal distributed output by 2 channels, and it adopts the high voltage isolation technique in various in-out interfaces. That is to say it doesn*t only apply to be as the processing amplifier while the DMX512 signal attenuation due to the remote data transmission, but also it can be used in which the various in-out interface need to be electric isolated. Since the various interfaces are isolated by each other, which is easy to avoid the control system damage caused by the control wiring, digital dimmer.. etc and make the control system work well. And also it made sure the DMX signal is in regular transmission so that the reliability of the whole control system was raised.

Technical Parameter

Product Name 2 Channels 12V DMX Signal Amplifier
Item DMX102
Signal Mode DMX512 and the verious signal tranismitted by RS-485 interface
Interface mode RS-485

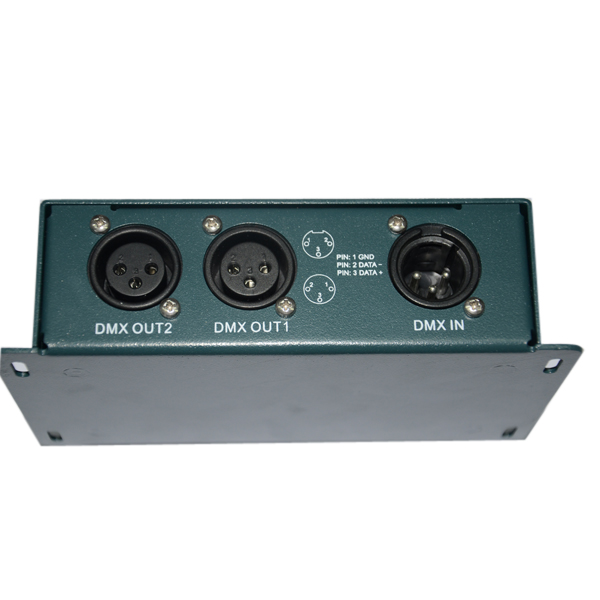

Signal input socket Input XLR-3-M; Output XLR-3-FㄛRJ45
In-out and out-in pressure-proof ˇ1000V
Power Supply 12V-24VAC/DC
Size 151 * 90 * 40mm
