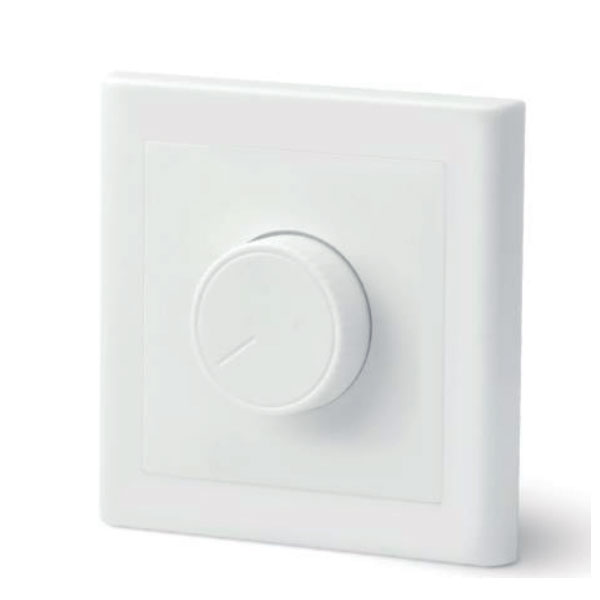

220-240VAC Triac Dimmer Walldim105E1
220-240VAC Triac Dimmer Walldim105E1
Features
· Support leading edge dimming
· Suitable for TRIAC dimming driver, incandescent lamps, halogen lamps and other loads
· ABS material, high flame retardant
· Fashion, and easy to use
· Used in the study, bedroom, restaurant, bars and other places need dimming control
· Suitable for installation in European and domestic electrical boxes
Technical Parameters
| Model | Walldim105E1 |
| Input voltage | 220-240VAC |
| Input frequency | 50/60Hz |
| Load type | Incandescent lamps:500W |
| Halogen lamps: 500W | |
| Dimmable LED: 300W | |
| TRIAC dimming driver: 300W | |
| Panel color | Ivory-white |
| Panel size | 86*86*44mm(W*H*D) |
| Packing size | 104*104*52mm(W*H*D) |
| G.W. | 140g |
| Working temp. | -10~55℃ |
| Relative humidity | 20-90% RH |
