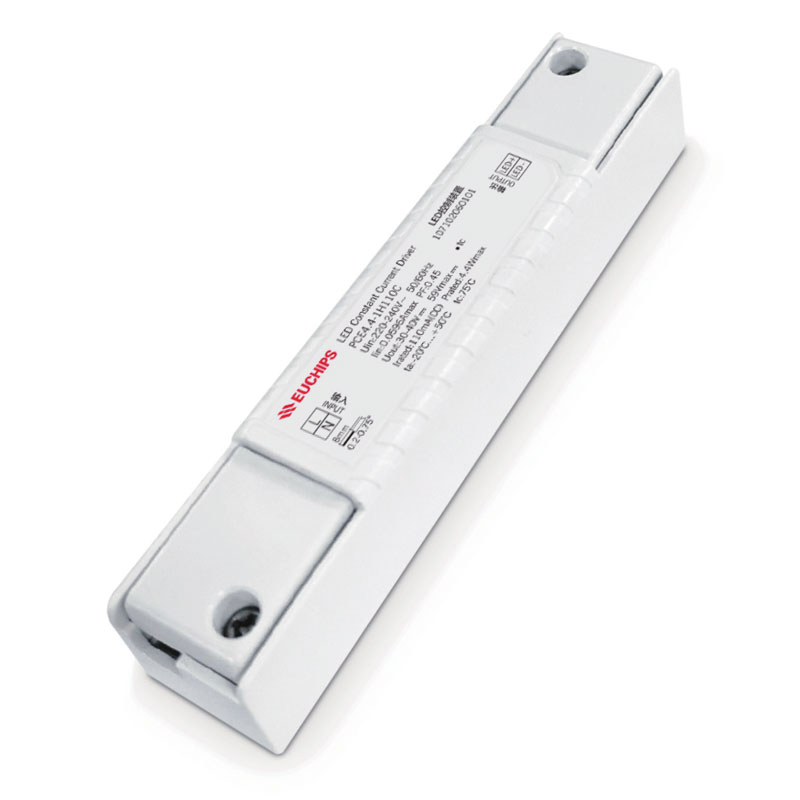

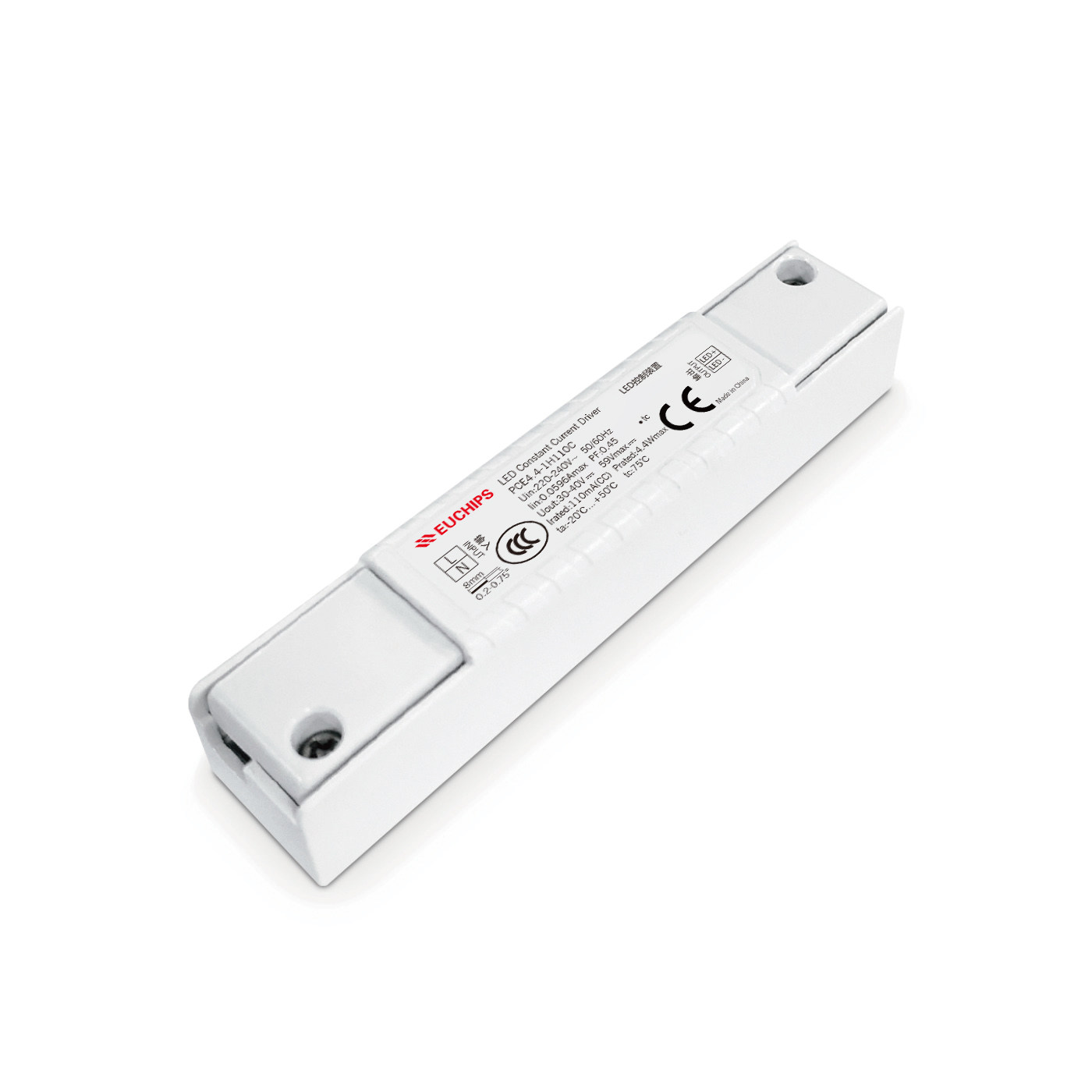

4.4W 110mA Non-dimmable CC LED Driver PCE4.4-1H110C

Short Description:

  • Item No.: PCE4.4-1H110C
  • Output Power: 4.4W

Product Detail

Product Tags

4.4W 110mA Non-dimmable Constant Current LED Driver PCE4.4-1H110C
PCE4.4-1H110C is a 4.4W AC/DC constant current LED driver, with Compact body design, minimum mounting aperture 28mm; Flicker free design to create a healthy light environment.

Product Features
· Single channel constant current output
· High voltage input: 220-240VAC
· Compact size, flicker-free
· Short circuit, over load, over voltage protections
· Suitable for LED indoor lights(down lights, spot lights, etc.)

Technical Parameters

Model PCE4.4-1H110C
Input Efficiency ≥77%@230VAC,Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.45@230VAC,Full load
THD(full load) /
AC Current(max) 0.0596Amax@230VAC
No load Power ≤0.5W
Inrush Current(max Cold start,9A@230VAC150us
Turn on delay Time <0.5s, at230Vac (When the light begins to shine)
Output Current 110mA
Voltage 30-40VDC
Power 4.4W
Channel 1
Output current range ±7%
Ripple current ±3%
No load output voltage ≤59VDC
Protection Short Circuit Short circuit no output, troubleshooting output normal
Over Load Reduce current hiccup protection, troubleshooting output normal
Over Voltage Reduce current hiccup protection, troubleshooting output normal
Safety&EMC Surge L-N:500VAC
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA
Safety Standards IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
EMC Emission EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
Insulation Resisance 5MΩ
Others Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃, 20-90%RH
tc 75℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:75℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing(weight) Net weight: 32g±5%/PCS; 200PCS/Carton; 6.8 kg±5%/Carton; Carton Size: 220*220*234mm(L*W*H)
Dimension 104*22*21mm(L*W*H)
