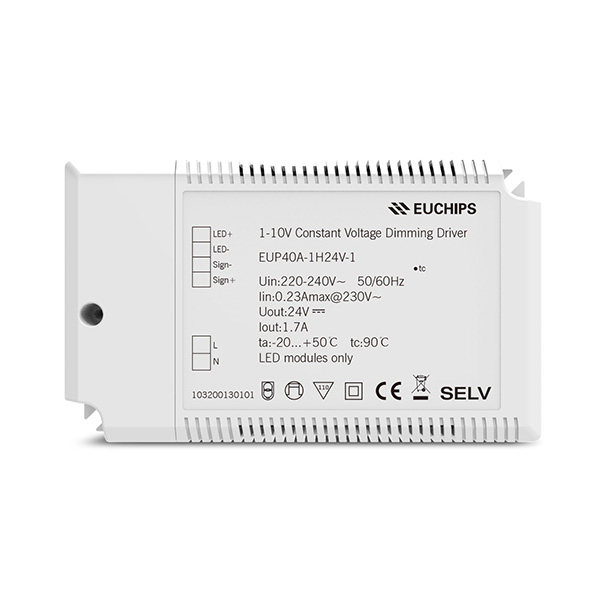

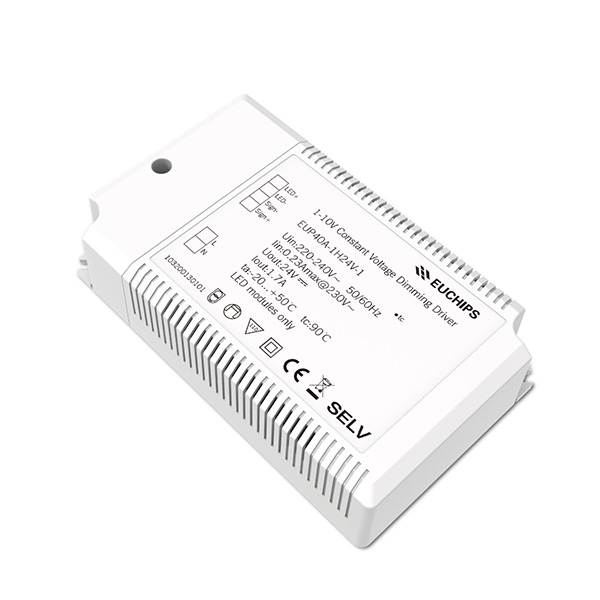

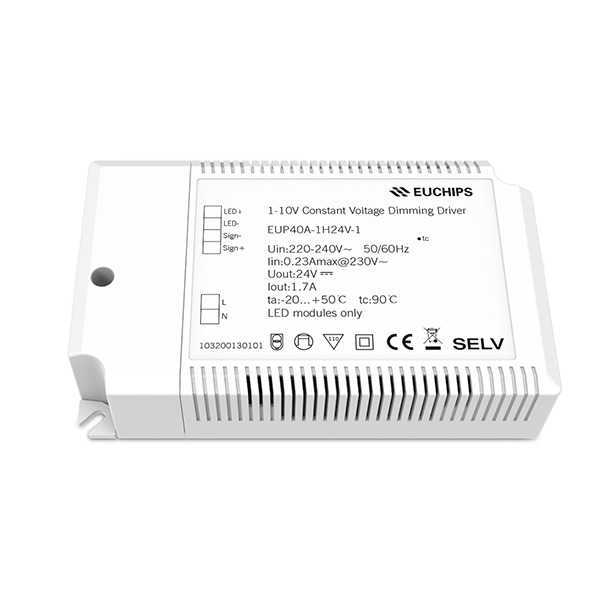

40W 24VDC 0/1-10V CV Driver EUP40A-1H24V-1

Short Description:

  • Item No.: EUP40A-1H24V-1
  • Input Voltage: 220-240
  • Output Current: 1.67A*1CH
  • Output Voltage: 24
  • Output Power: 40
  • Dim Mode: 1-10V
  • G.W.: 225
  • Size: 137*82*31

Product Detail

Product Tags

40W 24VDC 1-10V Constant Voltage Driver EUP40A-1H24V-1


EUP40A-1H24V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal (1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.



1. Single channel constant voltage output,1.7A Max

2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)

3. Built-in active PFC function

4. Dimming range of 0-100%, and dimming effect smooth, no flicker

5. 100% output when no dimming signal input, can be used as normal power supply

6. Over load protection; Over temperature protection; Short circuit protection

7. Suitable for indoor LED lighting application, such as LED strips, spot light,wall washer,and so on

Technical Parameter

Model EUP40A-1H24V-1
Output DC Voltage 24VDC
Current 1.7A/CH
Rated Power 40.8W
Voltage Tolerance ±3%
R & N(max) 400mVp-p
Channels 1
Input Voltage Range 220 – 240VAC
Frequency Range 50/60Hz
Efficiency >88%@230VAC,full load
Power Factor >0.95@230VAC,full load
THD <10%@230VAC,full load
Current 0.23Amax@230VAC
Inrush current Cold start, 30A(twidth=650us measured at 50% Ipeak) @230VAC
Protection Over load Hiccup, recovers after fault condition is removed
Over temperature Shut down the output, recoverautomatically when temp. back to normal
Short circuit Hiccup, recovers after fault condition is removed
Function Dimming 1-10V/ Adjustable resistance /PWM
Others Dimension 137 (L)*82(W)*31(H)mm
G.W.(g) 225g
Working Temp. -20 ~ 50℃
Relative humidity 20~90% RH
